Halogen and Antimony Free. "Green" Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
PPAP Capable (Note 4)
Mechanical Data
•
•
•
•
•
•
Case: SOT23
Case Material: molded plastic, “Green” molding compound
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Finish – Matte Tin Plated Leads, Solderable per
MIL-STD-202, Method 208
Weight 0.008 grams (approximate)

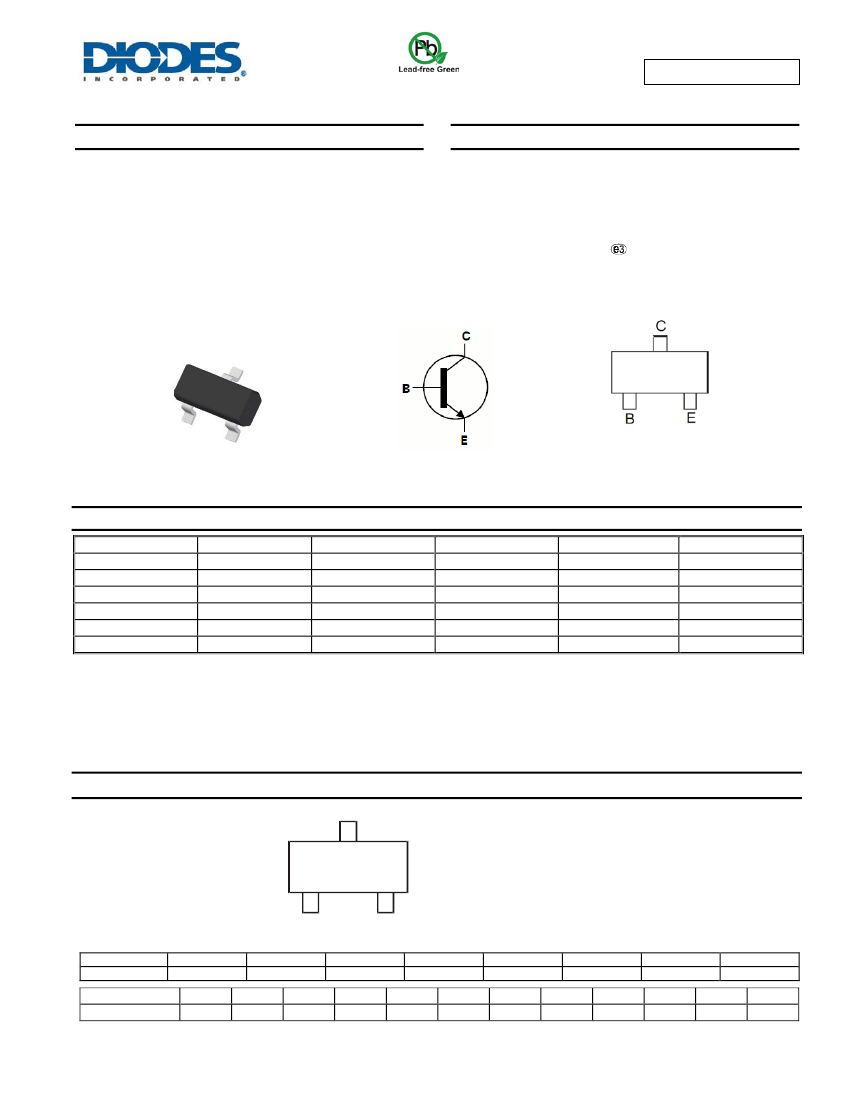

SOT23
Top View
Device Symbol
Top View
Pin-Out
Ordering Information
(Note 5)
Product
BC817-16-7-F
BC817-25-7-F
BC817-25Q-7-F
BC817-40-7-F
BC817-40Q-7-F
BC817-40Q-13-F
Notes:
Compliance
AEC-Q101
AEC-Q101
Automotive
AEC-Q101
Automotive
Automotive
Marking
K6A
K6B
K6B
K6C
K6C
K6C
Reel size (inches)
7
7
7
7
7
13
Tape width (mm)
8
8
8
8
8
8
Quantity per reel
3,000
3,000
3,000
3,000
3,000
10,000
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. Automotive products are AEC-Q101 qualified and are PPAP capable. Automotive, AEC-Q101 and standard products are electrically and thermally the
same, except where specified. For more information, please refer to http://www.diodes.com/quality/product_compliance_definitions/.
5. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
