2SC5658 / 2SC4617EB / 2SC4617
2SC4081UB / 2SC4081 / 2SC2412K
General purpose transistor (50V, 150mA)
Datasheet
l
Outline
Parameter
Value
VMT3
EMT3F
V
CEO
I
C
50V
150mA
2SC5658
SC-105AA
2SC4617EB
SOT-416FL
UMT3F
l
Features
1)Low Cob.Cob=2.0pF(Typ.)
2)Complements the 2SA2029/
2SA1774EB/2SA1774/2SA1576UB/
2SA1576A/2SA1037AK.
l
Application
GENERAL PURPOSE SMALL SIGNAL
AMPLIFIER
EMT3
2SC4617
SOT-416
UMT3
2SC4081UB
SOT-323FL
SMT3
2SC4081
SOT-323
2SC2412K
SOT-346
l
Inner circuit
2SC5658/2SC4617EB/2SC4081UB
2SC4617/2SC4081/2SC2412K
l
Packaging specifications
Part No.
Package
Package
size
Taping
code
Reel size
(mm)
Tape width
(mm)
Basic
ordering
unit.(pcs)
hFE
rank
Marking
2SC5658
2SC4617EB
2SC4617
2SC4081UB
2SC4081
2SC2412K
VMT3
EMT3F
EMT3
UMT3F
UMT3
SMT3
1212
1616
1616
2021
2021
2928
T2L
TL
TL
TL
T106
T146
1/9
180
180
180
180
180
180
8
8
8
8
8
8
8000
3000
3000
3000
3000
3000
QRS
QRS
QRS
QRS
QRS
QRS
B
B
B
B
B
B
www.rohm.com
© 2015 ROHM Co., Ltd. All rights reserved.
20150618 - Rev.002
2SC5658 / 2SC4617EB / 2SC4617 / 2SC4081UB / 2SC4081 / 2SC2412K
l
Absolute maximum ratings
(T
a
= 25°C)
Datasheet
Parameter
Collector-base voltage
Collector-emitter voltage
Emitter-base voltage
Collector current
2SC5658
2SC4617EB
2SC4617
2SC4081UB
2SC4081
2SC2412K
Symbol
V
CBO
V
CEO
V
EBO
I
C
I
CP*1
Power dissipation
P
D*2
Junction temperature
Range of storage temperature
l
Electrical characteristics
(T
a
= 25°C)
T
j
T
stg
Values
60
50
7
150
200
150
150
150
200
200
200
150
-55 to +150
Unit
V
V
V
mA
mA
mW
℃
℃
Parameter
Collector-base breakdown
voltage
Collector-emitter breakdown
voltage
Emitter-base breakdown voltage
Collector cut-off current
Emitter cut-off current
Collector-emitter saturation voltage
Symbol
BV
CBO
BV
CEO
BV
EBO
I
CBO
I
EBO
V
CE(sat)
h
FE
f
T
C
ob
Conditions
I
C
= 50μA
I
C
= 1mA
I
E
= 50μA
V
CB
= 60V
V
EB
= 7V
I
C
= 50mA, I
B
= 5mA
V
CE
= 6V, I
C
= 1mA
V
CE
= 12V, I
E
= -2mA,
f = 100MHz
V
CB
= 12V, I
E
= 0A,
f = 1MHz
Min.
60
50
7
-
-
-
120
-
-
Values
Typ.
-
-
-
-
-
-
-
180
2.0
Max.
-
-
-
100
100
400
560
-
3.5
Unit
V
V
V
nA
nA
mV
-
MHz
pF
DC current gain
Transition frequency
Output capacitance
hFE values are calssified as follows :
rank
Q
R
h
FE
120-270
180-390
*1 Pw=1ms, Single Pulse.
*2 Each terminal mounted on a reference land.
S
270-560
-
-
-
-
www.rohm.com
© 2015 ROHM Co., Ltd. All rights reserved.
2/12
20150618 - Rev.002
2SC5658 / 2SC4617EB / 2SC4617 / 2SC4081UB / 2SC4081 / 2SC2412K
l
Electrical characteristic curves(T
a
= 25°C)
Datasheet

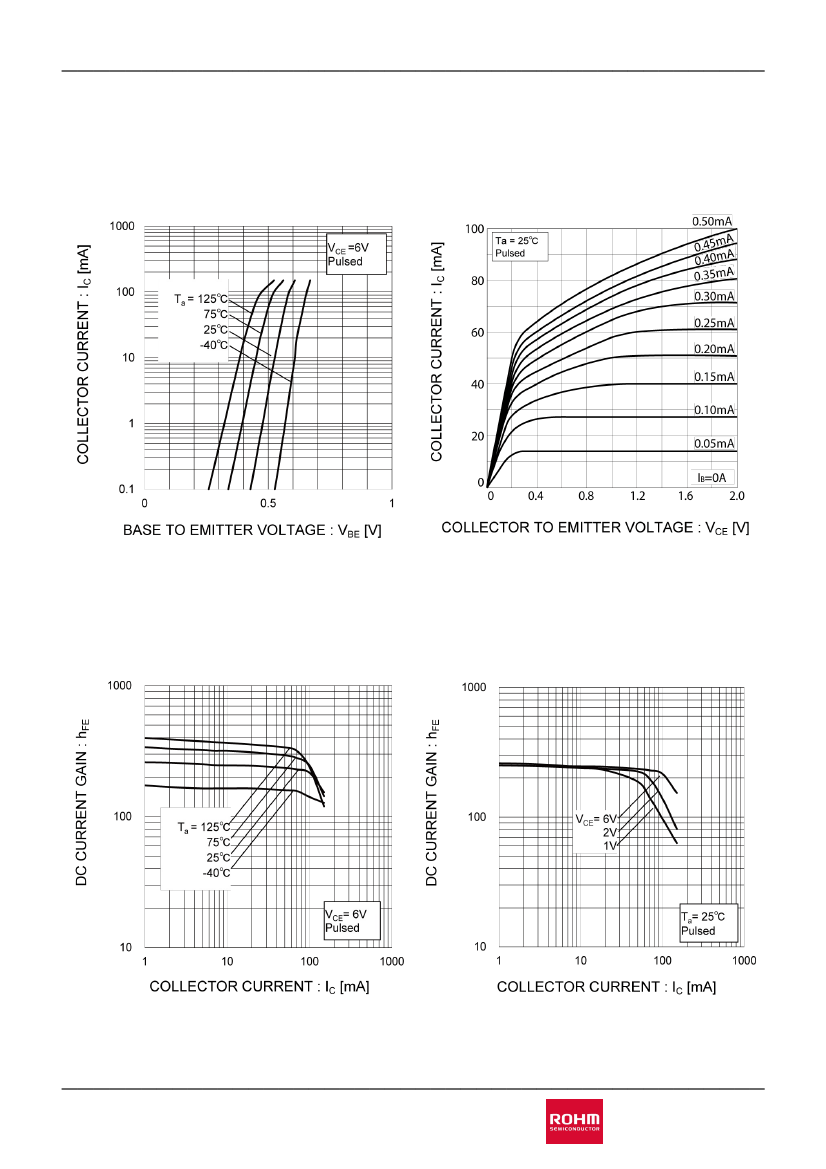

Fig.1 Ground Emitter Propagation
Characteristics
Fig.2 Grounded Emitter Output
Characteristics
Fig.3 DC Current Gain vs. Collector
Current (I)
Fig.4 DC Current Gain vs. Collector
Current (lI)
www.rohm.com
© 2015 ROHM Co., Ltd. All rights reserved.
3/12
20150618 - Rev.002
2SC5658 / 2SC4617EB / 2SC4617 / 2SC4081UB / 2SC4081 / 2SC2412K
l
Electrical characteristic curves(T
a
= 25°C)
Datasheet

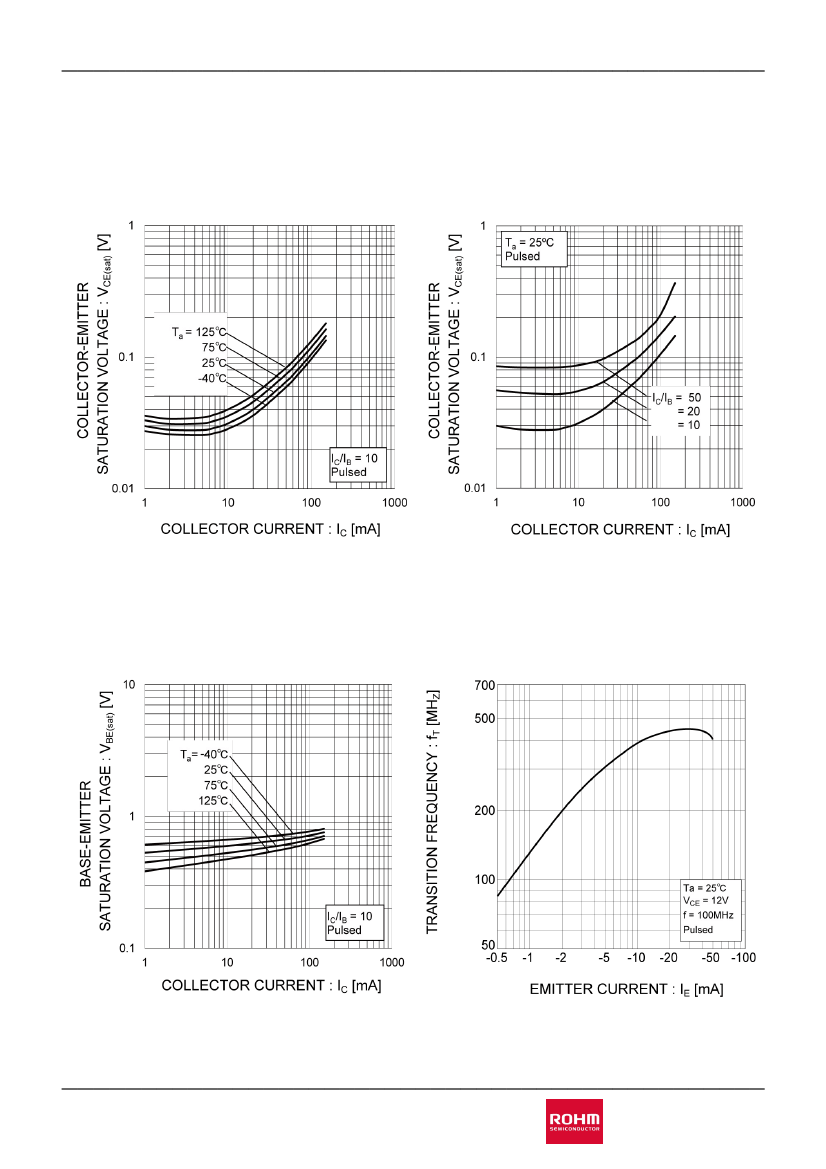

Fig.5 Collector-Emitter Saturation Voltage
vs. Collector Current(l)
Fig.6 Collector-Emitter Saturation Voltage
vs. Collector Current(ll)
Fig.7 Base-Emitter Saturation Voltage
vs. Collector Current (I)
Fig.8 Gain Bandwith Product vs.
Emitter Current
www.rohm.com
© 2015 ROHM Co., Ltd. All rights reserved.
4/12
20150618 - Rev.002
2SC5658 / 2SC4617EB / 2SC4617 / 2SC4081UB / 2SC4081 / 2SC2412K
l
Electrical characteristic curves(T
a
= 25°C)
Datasheet

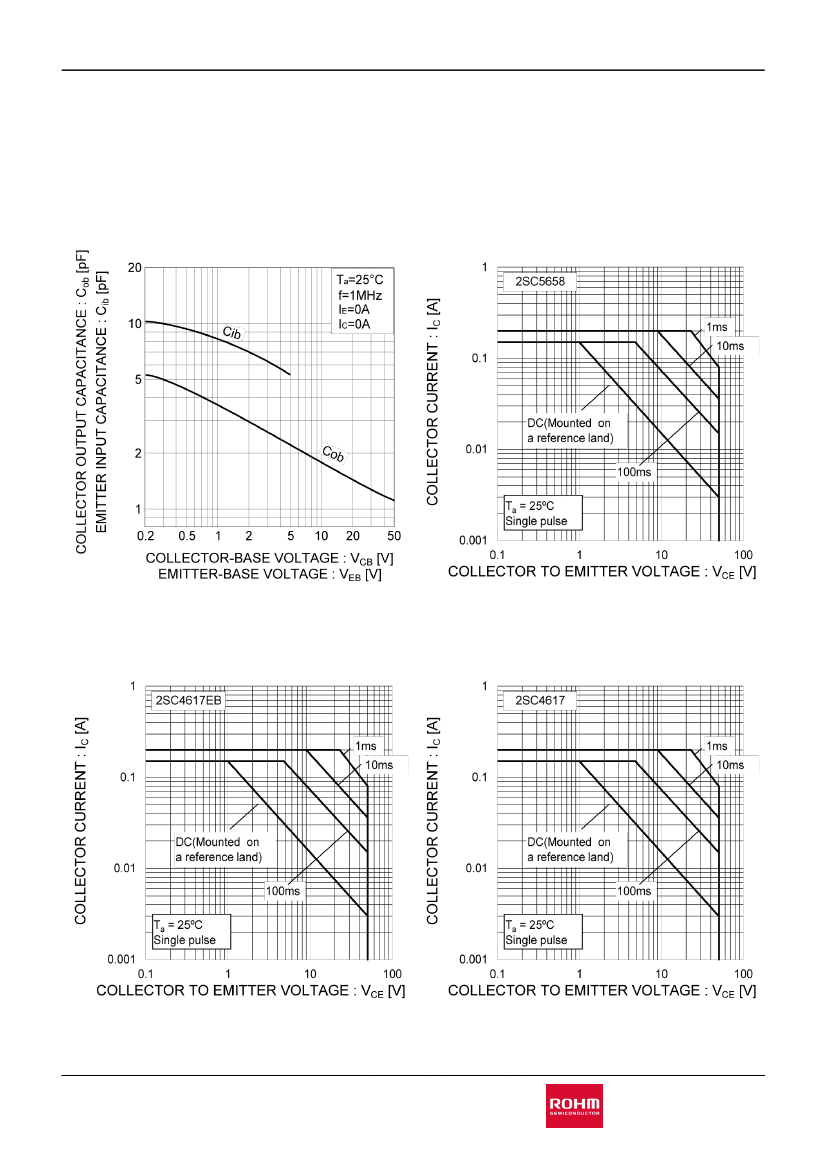

Fig.9 Collector Output Capacitance vs.
