AUIRF3710ZS datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> AUIRF3710ZS

AUIRF3710ZS: DescriptionTactile Switches 2.6x1.6mm 1.6N 0.11mm travel IP67; CategoryDiscrete semiconductor The transistor; File Size321KB，14 Pages; ManufacturerInfineon; Websitehttp://www.infineon.com/; Environmental Compliance

Download Datasheet Parametric View All

AUIRF3710ZS Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	AUIRF3710ZS	-	-	View	Buy Now

AUIRF3710ZS Overview

Tactile Switches 2.6x1.6mm 1.6N 0.11mm travel IP67

AUIRF3710ZS Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Infineon
package instruction	ROHS COMPLIANT, D2PAK-3
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	16 weeks
Avalanche Energy Efficiency Rating (Eas)	200 mJ
Configuration	SINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage	100 V
Maximum drain current (Abs) (ID)	59 A
Maximum drain current (ID)	59 A
Maximum drain-source on-resistance	0.018 Ω
FET technology	METAL-OXIDE SEMICONDUCTOR
JESD-30 code	R-XSSO-G2
JESD-609 code	e3
Humidity sensitivity level	1
Number of components	1
Number of terminals	2
Operating mode	ENHANCEMENT MODE
Maximum operating temperature	175 °C
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
Polarity/channel type	N-CHANNEL
Maximum power dissipation(Abs)	160 W
Maximum pulsed drain current (IDM)	240 A
Certification status	Not Qualified
surface mount	YES
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal form	GULL WING
Terminal location	SINGLE
Maximum time at peak reflow temperature	30
transistor applications	SWITCHING
Transistor component materials	SILICON
Base Number Matches	1

Preview

Download Datasheet

View All

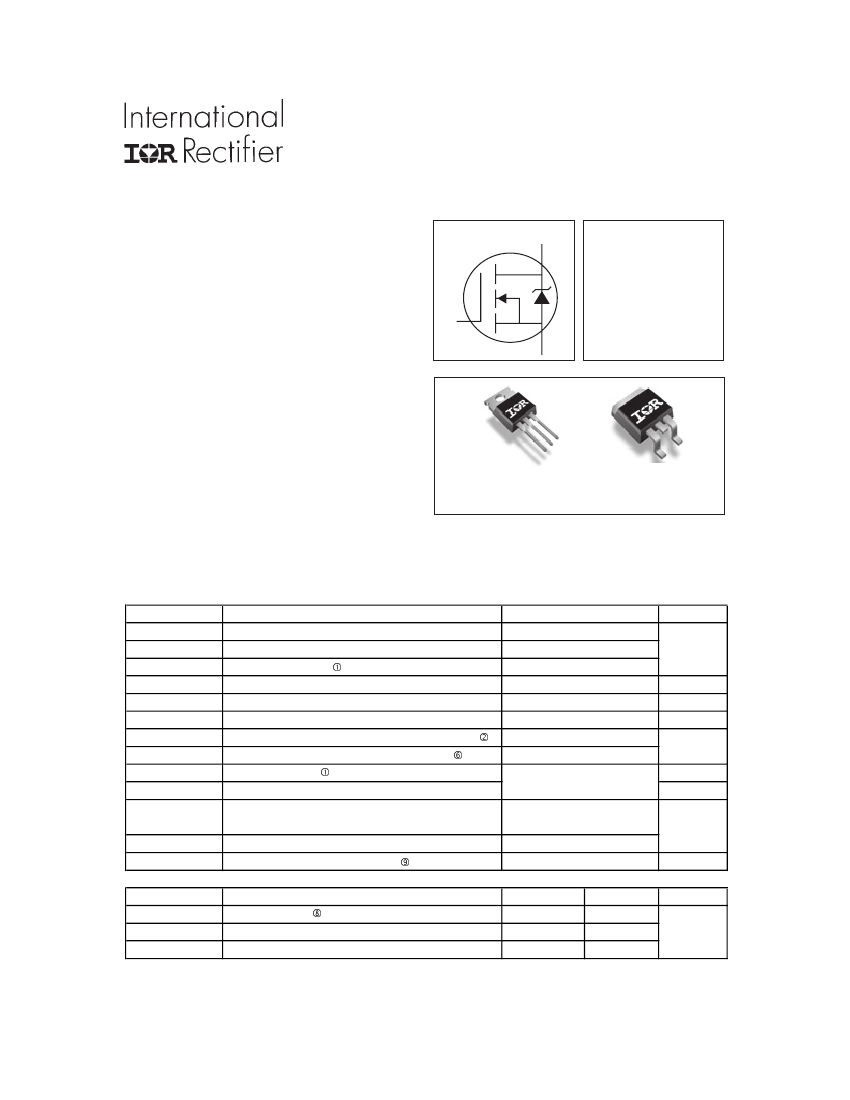

PD - 97470

AUTOMOTIVE GRADE

Features

Low On-Resistance

175°C Operating Temperature

Fast Switching

Fully Avalanche Rated

Repetitive Avalanche Allowed up to Tjmax

Lead-Free, RoHS Compliant

Automotive Qualified *

AUIRF3710Z

AUIRF3710ZS

HEXFET

Power MOSFET

DSS

= 100V

DS(on)

= 18mΩ

Description

Specifically designed for Automotive applications,

this HEXFET

Power MOSFET utilizes the latest

processing techniques to achieve extremely low

on-resistance per silicon area. Additional fea-

tures of this design are a 175°C junction operating

temperature, fast switching speed and improved

repetitive avalanche rating . These features com-

bine to make this design an extremely efficient

and reliable device for use in Automotive applica-

tions and a wide variety of other applications.

= 59A

TO-220AB

AUIRF3710Z

Pak

AUIRF3710ZS

Absolute Maximum Ratings

Stresses beyond those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. These are stress ratings only;

and functional operation of the device at these or any other condition beyond those indicated in the specifications is not implied. Exposure

to absolute-maximum-rated conditions for extended periods may affect device reliability. The thermal resistance and power dissipation

ratings are measured under board mounted and still air conditions. Ambient temperature (T

) is 25°C, unless otherwise specified.

Parameter

@ T

= 25°C

@ T

= 100°C

= 25°C

(tested)

STG

Continuous Drain Current, V

@ 10V

Continuous Drain Current, V

@ 10V

Pulsed Drain Current

Max.

240

160

1.1

± 20

170

200

See Fig.12a,12b,15,16

-55 to + 175

300 (1.6mm from case )

10 lbf•in (1.1N•m)

Units

Maximum Power Dissipation

Linear Derating Factor

Gate-to-Source Voltage

Single Pulse Avalanche Energy Tested Value

Avalanche Current

W/°C

°C

Single Pulse Avalanche Energy (Thermally limited)

Repetitive Avalanche Energy

Operating Junction and

Storage Temperature Range

Soldering Temperature, for 10 seconds

Mounting torque, 6-32 or M3 screw

Thermal Resistance

θJC

θCS

θJA

Junction-to-Case

Parameter

Typ.

–––

0.50

–––

Max.

0.92

–––

Units

°C/W

Case-to-Sink, Flat, Greased Surface

Junction-to-Ambient (PCB Mount, steady state)

HEXFET

is a registered trademark of International Rectifier.

*Qualification

standards can be found at http://www.irf.com/

www.irf.com

3/19/10
