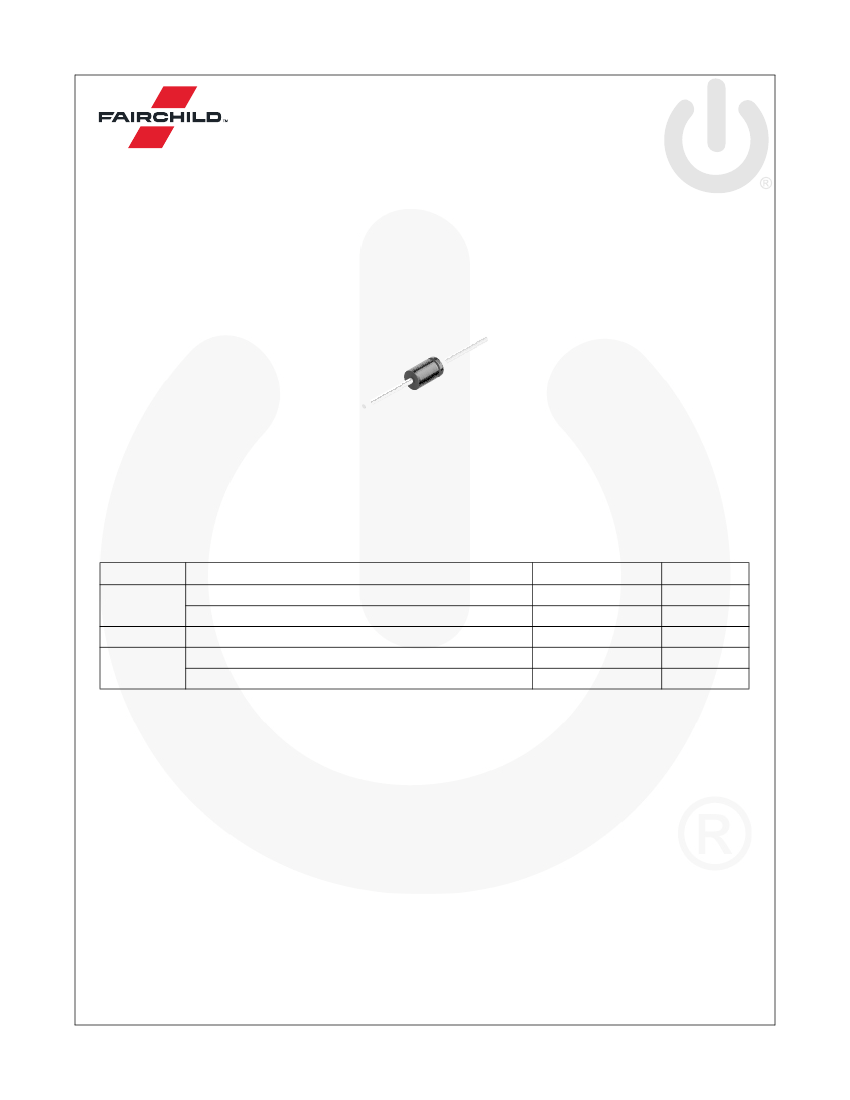

1N5221B - 1N5263B — Zener Diodes
January 2016
1N5221B - 1N5263B
Zener Diodes
Tolerance = 5%

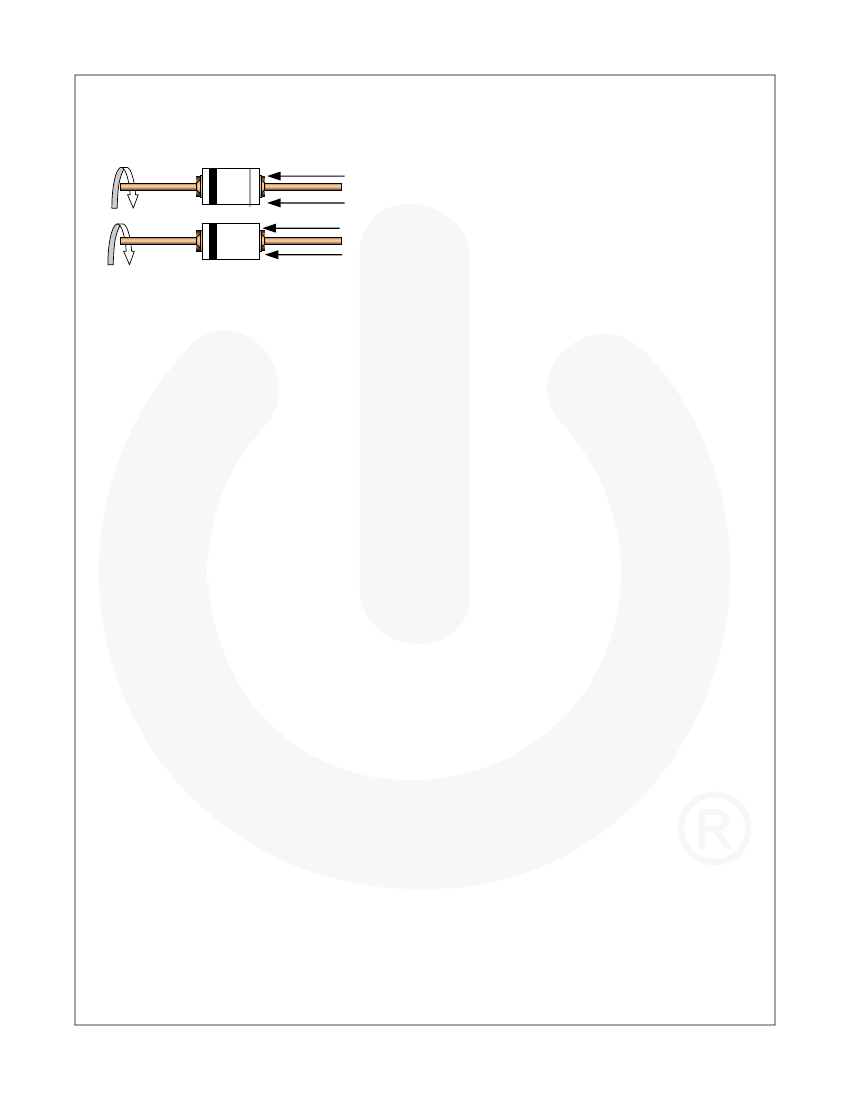

DO-35 Glass case
COLOR BAND DENOTES CATHODE
Absolute Maximum Ratings
Stresses exceeding the absolute maximum ratings may damage the device. The device may not function or be opera-
ble above the recommended operating conditions and stressing the parts to these levels is not recommended. In addi-
tion, extended exposure to stresses above the recommended operating conditions may affect device reliability. The
absolute maximum ratings are stress ratings only. Values are at T
A
= 25°C unless otherwise noted.
Symbol
P
D
T
STG
T
J
Power Dissipation
Derate above 50°C
Parameter
Value
500
4.0
-65 to +200
-65 to +200
+230
Unit
mW
mW°C
°C
°C
°C
Storage Temperature Range
Operating Junction Temperature Range
Lead Temperature (1/16 inch from case for 10 s)
Note:
1. These ratings are limiting values above which the serviceability of any semiconductor device may be impaired.
