MAX166BMJP: DescriptionAnalog to Digital Converters - ADC; CategoryAnalog mixed-signal IC converter; File Size5MB，12 Pages; ManufacturerMaxim; Websitehttps://www.maximintegrated.com/en.html

Download Datasheet Parametric Compare View All

MAX166BMJP Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	MAX166BMJP	-	-	View	Buy Now

MAX166BMJP Overview

Analog to Digital Converters - ADC

MAX166BMJP Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Maxim
Parts packaging code	DIP
package instruction	DIP, DIP20,.3
Contacts	20
Reach Compliance Code	not_compliant
ECCN code	3A001.A.2.C
Maximum analog input voltage	2.58 V
Minimum analog input voltage
Maximum conversion time	15 µs
Converter type	ADC, SUCCESSIVE APPROXIMATION
JESD-30 code	R-GDIP-T20
JESD-609 code	e0
Maximum linear error (EL)	0.39%
Humidity sensitivity level	1
Number of analog input channels	1
Number of digits	8
Number of functions	1
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output bit code	BINARY, OFFSET BINARY
Output format	PARALLEL, 8 BITS
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Encapsulate equivalent code	DIP20,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	245
power supply	5 V
Certification status	Not Qualified
Sampling rate	0.2 MHz
Sample and hold/Track and hold	TRACK
Maximum seat height	5.08 mm
Maximum slew rate	7 mA
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.62 mm

Preview

Download Datasheet

View All

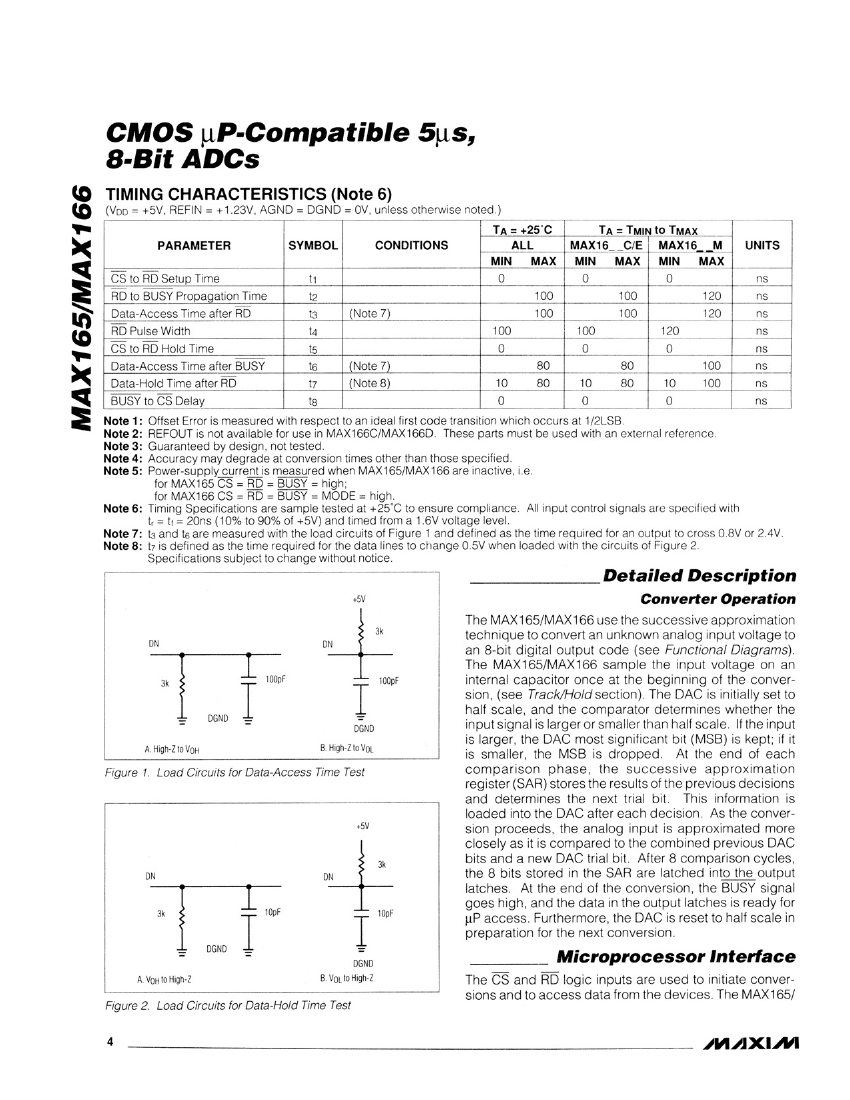

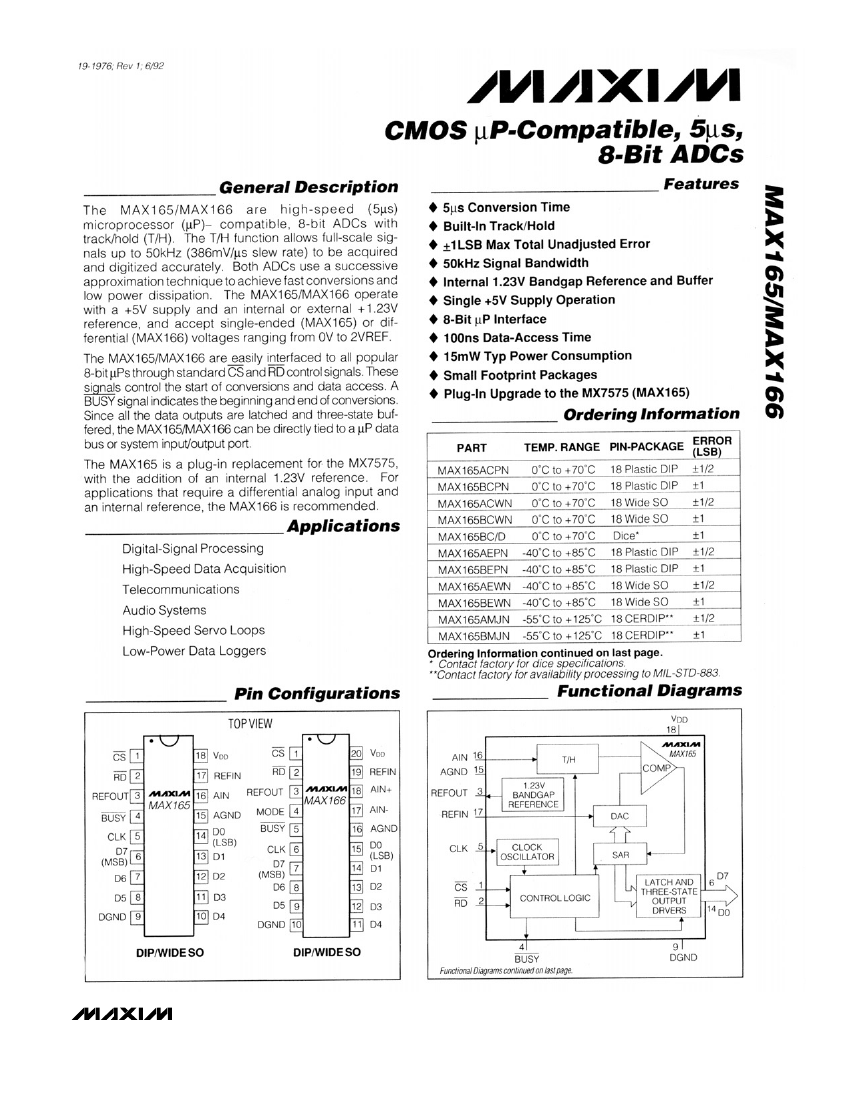

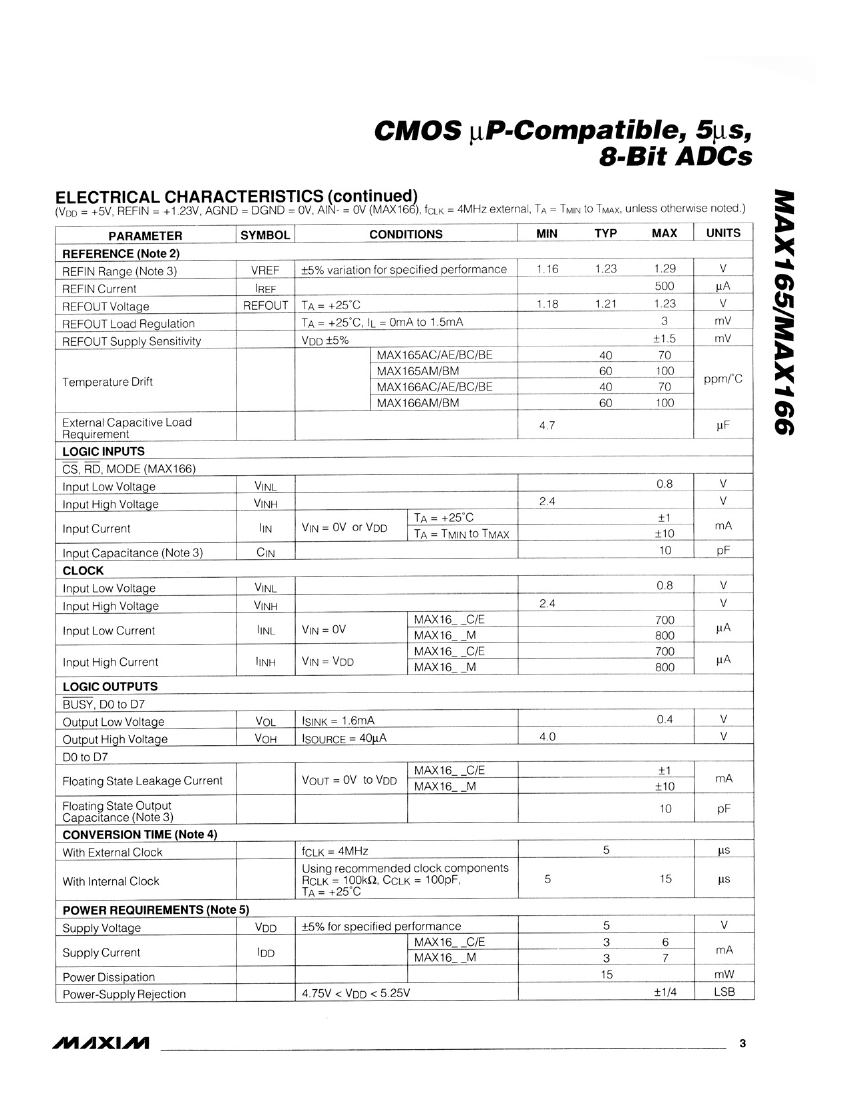

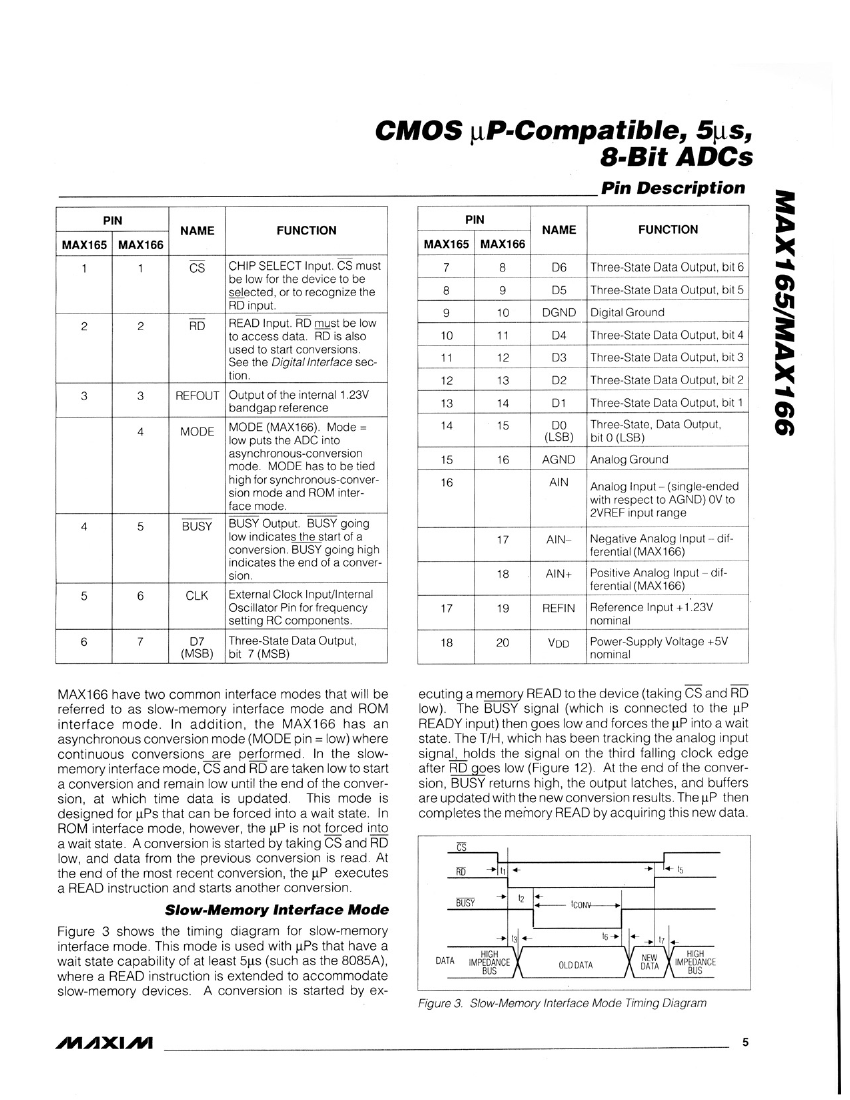

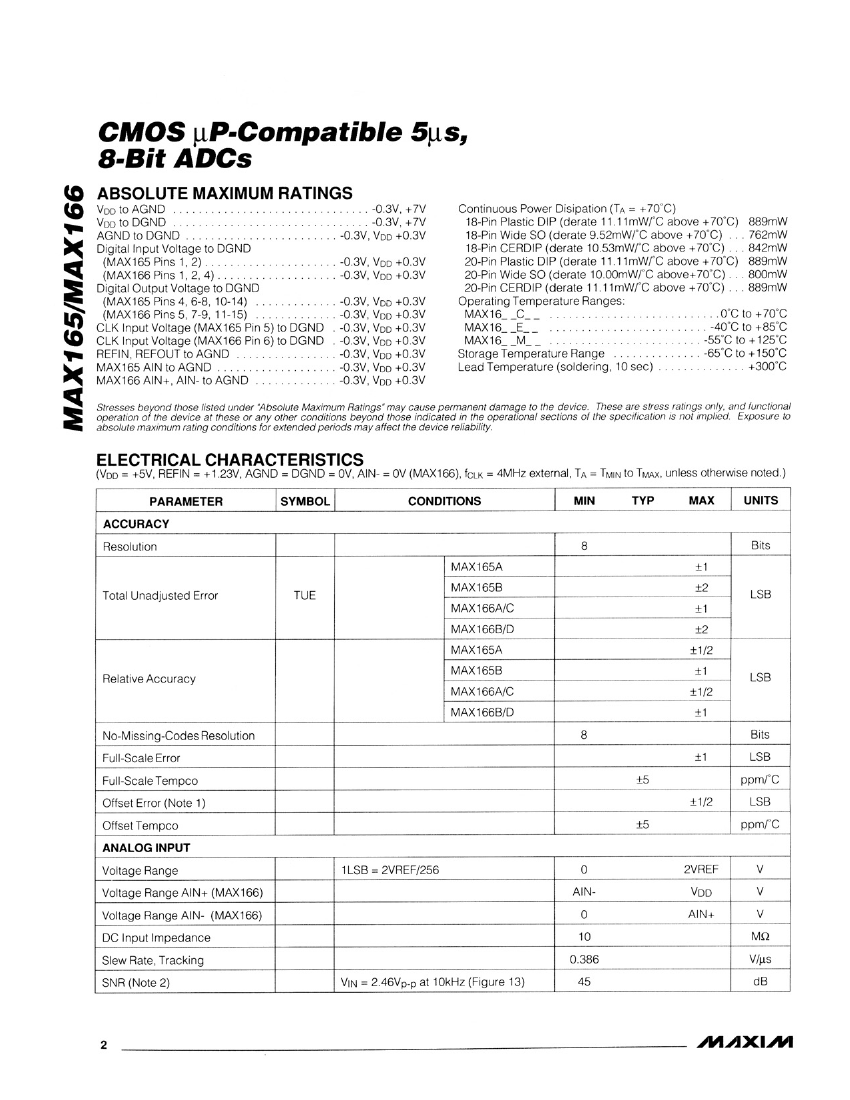

____________________________________________________________________________

Maxim

Integrated Products

1

For pricing, delivery, and ordering information, please contact Maxim/Dallas Direct! at

1-888-629-4642, or visit Maxim’s website at www.maxim-ic.com.

MAX166BMJP Related Products

	MAX166BMJP	MAX166DEWP	MAX166DMJP
Description	Analog to Digital Converters - ADC
Is it Rohs certified?	incompatible	incompatible	incompatible
Maker	Maxim	Maxim	Maxim
Parts packaging code	DIP	SOIC	DIP
package instruction	DIP, DIP20,.3	SOP, SOP20,.4	DIP, DIP20,.3
Contacts	20	20	20
Reach Compliance Code	not_compliant	not_compliant	not_compliant
ECCN code	3A001.A.2.C	EAR99	3A001.A.2.C
Maximum analog input voltage	2.58 V	2.58 V	2.58 V
Maximum conversion time	15 µs	15 µs	15 µs
Converter type	ADC, SUCCESSIVE APPROXIMATION	ADC, SUCCESSIVE APPROXIMATION	ADC, SUCCESSIVE APPROXIMATION
JESD-30 code	R-GDIP-T20	R-PDSO-G20	R-GDIP-T20
JESD-609 code	e0	e0	e0
Maximum linear error (EL)	0.39%	0.39%	0.39%
Humidity sensitivity level	1	1	1
Number of analog input channels	1	1	1
Number of digits	8	8	8
Number of functions	1	1	1
Number of terminals	20	20	20
Maximum operating temperature	125 °C	85 °C	125 °C
Minimum operating temperature	-55 °C	-40 °C	-55 °C
Output bit code	BINARY, OFFSET BINARY	BINARY, OFFSET BINARY	BINARY, OFFSET BINARY
Output format	PARALLEL, 8 BITS	PARALLEL, 8 BITS	PARALLEL, 8 BITS
Package body material	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED
encapsulated code	DIP	SOP	DIP
Encapsulate equivalent code	DIP20,.3	SOP20,.4	DIP20,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	SMALL OUTLINE	IN-LINE
Peak Reflow Temperature (Celsius)	245	245	245
power supply	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified
Sampling rate	0.2 MHz	0.2 MHz	0.2 MHz
Sample and hold/Track and hold	TRACK	TRACK	TRACK
Maximum seat height	5.08 mm	2.65 mm	5.08 mm
Maximum slew rate	7 mA	6 mA	7 mA
Nominal supply voltage	5 V	5 V	5 V
surface mount	NO	YES	NO
technology	CMOS	CMOS	CMOS
Temperature level	MILITARY	INDUSTRIAL	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn85Pb15)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	GULL WING	THROUGH-HOLE
Terminal pitch	2.54 mm	1.27 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	7.62 mm	7.5 mm	7.62 mm
