MBRD320G,
MBRD330G,
MBRD340G,
MBRD350G,
MBRD360G,
SBRD8320G,
SBRD8330G,
SBRD8340G,
SBRD8350G,
SBRD8360G
http://onsemi.com
MBRD320, MBRD340 and MBRD360 are Preferred Devices
SWITCHMODE
Power Rectifiers
DPAK Surface Mount Package
These state−of−the−art devices are designed for use as output
rectifiers, free wheeling, protection and steering diodes in switching
power supplies, inverters and other inductive switching circuits.
Features
SCHOTTKY BARRIER
RECTIFIERS
3.0 AMPERES, 20
−
60 VOLTS
Extremely Fast Switching
Extremely Low Forward Drop
Platinum Barrier with Avalanche Guardrings
AEC−Q101 Qualified and PPAP Capable
SBRD8 Prefix for Automotive and Other Applications Requiring
Unique Site and Control Change Requirements
All Packages are Pb−Free*
Mechanical Characteristics:
DPAK
CASE 369C
1
3
4
MARKING DIAGRAM
YWW
B
3x0G
Case: Epoxy, Molded
Weight: 0.4 Gram (Approximately)
Finish: All External Surfaces Corrosion Resistant and Terminal
Leads are Readily Solderable
Lead and Mounting Surface Temperature for Soldering Purposes;
260C Max. for 10 Seconds
ESD Ratings:
Machine Model = C
Human Body Model = 3B
Y
WW
B3x0
x
G
= Year
= Work Week
= Device Code
= 2, 3, 4, 5, or 6
= Pb−Free Package
ORDERING INFORMATION
See detailed ordering and shipping information in the package
dimensions section on page 2 of this data sheet.
Preferred
devices are recommended choices for future use
and best overall value.
*For additional information on our Pb−Free strategy and soldering details, please
download the ON Semiconductor Soldering and Mounting Techniques
Reference Manual, SOLDERRM/D.
Semiconductor Components Industries, LLC, 2012
January, 2012
−
Rev. 8
1
Publication Order Number:
MBRD320/D
MBRD320G, SBRD8320G, MBRD330G, SBRD8330G, MBRD340G, SBRD8340G,
MBRD350G, SBRD8350G, MBRD360G, SBRD8360G
MAXIMUM RATINGS
Rating
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
Average Rectified Forward Current (T
C
= +125C, Rated V
R
)
Peak Repetitive Forward Current, T
C
= +125C
(Rated V
R
, Square Wave, 20 kHz)
Nonrepetitive Peak Surge Current
(Surge applied at rated load conditions halfwave, single phase, 60 Hz)
Peak Repetitive Reverse Surge Current (2
ms,
1 kHz)
Operating Junction Temperature Range (Note 1)
Storage Temperature Range
Voltage Rate of Change (Rated V
R
)
Symbol
V
RRM
V
RWM
V
R
I
F(AV)
I
FRM
I
FSM
I
RRM
T
J
T
stg
dv/dt
MBRD/SBRD8
320
20
330
30
340
40
350
50
360
60
Unit
V
3
6
75
1
−65
to +175
−65
to +175
10,000
A
A
A
A
C
C
V/ms
Stresses exceeding Maximum Ratings may damage the device. Maximum Ratings are stress ratings only. Functional operation above the
Recommended Operating Conditions is not implied. Extended exposure to stresses above the Recommended Operating Conditions may affect
device reliability.
1. The heat generated must be less than the thermal conductivity from Junction−to−Ambient: dP
D
/dT
J
< 1/R
qJA
.
THERMAL CHARACTERISTICS
Characteristic
Maximum Thermal Resistance, Junction−to−Case
Maximum Thermal Resistance, Junction−to−Ambient (Note 2)
2. Rating applies when surface mounted on the minimum pad size recommended.
Symbol
R
qJC
R
qJA
Value
6
80
Unit
C/W
C/W
ELECTRICAL CHARACTERISTICS
Characteristic
Maximum Instantaneous Forward Voltage (Note 3)
i
F
= 3 Amps, T
C
= +25C
i
F
= 3 Amps, T
C
= +125C
i
F
= 6 Amps, T
C
= +25C
i
F
= 6 Amps, T
C
= +125C
Maximum Instantaneous Reverse Current (Note 3)
(Rated dc Voltage, T
C
= +25C)
(Rated dc Voltage, T
C
= +125C)
3. Pulse Test: Pulse Width = 300
ms,
Duty Cycle
2.0%.
Symbol
V
F
Value
0.6
0.45
0.7
0.625
0.2
20
Unit
V
i
R
mA
ORDERING INFORMATION
Device
MBRD320G
SBRD8320G
MBRD320RLG
MBRD320T4G
SBRD8320T4G
MBRD330G
SBRD8330G
Package
DPAK
(Pb−Free)
DPAK
(Pb−Free)
DPAK
(Pb−Free)
DPAK
(Pb−Free)
DPAK
(Pb−Free)
DPAK
(Pb−Free)
DPAK
(Pb−Free)
Shipping
†
75 Units / Rail
75 Units / Rail
1,800 Tape & Reel
2,500 Tape & Reel
2,500 Tape & Reel
75 Units / Rail
75 Units / Rail
http://onsemi.com
2
MBRD320G, SBRD8320G, MBRD330G, SBRD8330G, MBRD340G, SBRD8340G,
MBRD350G, SBRD8350G, MBRD360G, SBRD8360G
ORDERING INFORMATION
Device
MBRD330RLG
MBRD330T4G
SBRD8330T4G
MBRD340G
SBRD8340G
MBRD340RLG
MBRD340T4G
SBRD8340T4G
MBRD350G
SBRD8350G
MBRD350RLG
SBRD8350RLG
MBRD350T4G
SBRD8350T4G
MBRD360G
SBRD8360G
MBRD360RLG
SBRD8360RLG
MBRD360T4G
SBRD8360T4G
Package
DPAK
(Pb−Free)
DPAK
(Pb−Free)
DPAK
(Pb−Free)
DPAK
(Pb−Free)
DPAK
(Pb−Free)
DPAK
(Pb−Free)
DPAK
(Pb−Free)
DPAK
(Pb−Free)
DPAK
(Pb−Free)
DPAK
(Pb−Free)
DPAK
(Pb−Free)
DPAK
(Pb−Free)
DPAK
(Pb−Free)
DPAK
(Pb−Free)
DPAK
(Pb−Free)
DPAK
(Pb−Free)
DPAK
(Pb−Free)
DPAK
(Pb−Free)
DPAK
(Pb−Free)
DPAK
(Pb−Free)
Shipping
†
1,800 Tape & Reel
2,500 Tape & Reel
2,500 Tape & Reel
75 Units / Rail
75 Units / Rail
1,800 Tape & Reel
2,500 Tape & Reel
2,500 Tape & Reel
75 Units / Rail
75 Units / Rail
1,800 Tape & Reel
1,800 Tape & Reel
2,500 Tape & Reel
2,500 Tape & Reel
75 Units / Rail
75 Units / Rail
1,800 Tape & Reel
1,800 Tape & Reel
2,500 Tape & Reel
2,500 Tape & Reel
†For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging
Specifications Brochure, BRD8011/D.
http://onsemi.com
3
MBRD320G, SBRD8320G, MBRD330G, SBRD8330G, MBRD340G, SBRD8340G,
MBRD350G, SBRD8350G, MBRD360G, SBRD8360G

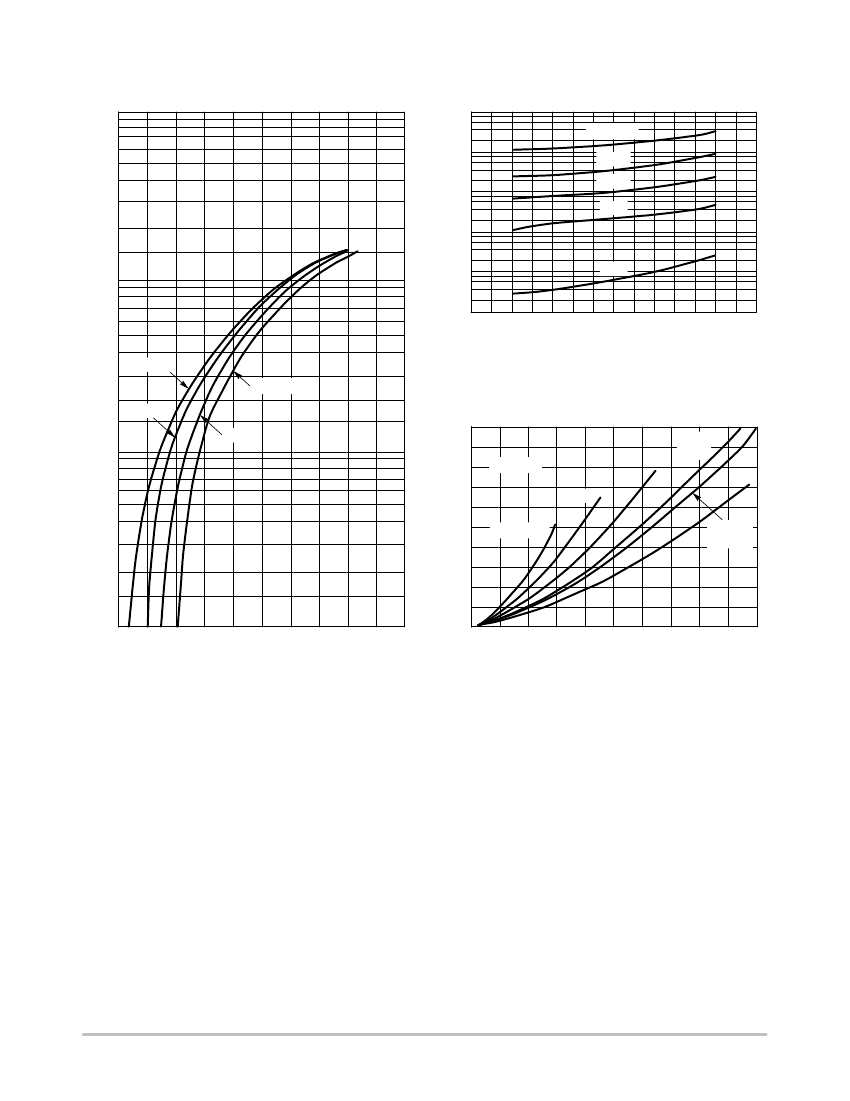

TYPICAL CHARACTERISTICS
100
100
40
20
10
4.0
2.0
1.0
0.4
0.2
0.1
0.04
0.02
0.01
0.004
0.002
0.001
0
10
T
J
= 150C
125C
100C
75C
i F, INSTANTANEOUS FORWARD CURRENT (AMPS)
I R , REVERSE CURRENT (mA)
25C
10
40
20
30
50
V
R
, REVERSE VOLTAGE (VOLTS)
60
70
150C
T
J
= 25C
125C
*The curves shown are typical for the highest voltage device in the
voltage grouping. Typical reverse current for lower voltage selections
can be estimated from these curves if V
R
is sufficient below rated V
R
.
Figure 2. Typical Reverse Current
PF(AV) , AVERAGE POWER DISSIPATION (WATTS)
10
9.0
8.0
7.0
6.0
5.0
4.0
3.0
2.0
1.0
0
0
1.0
2.0
3.0
4.0
5.0
6.0
7.0
8.0
9.0
10
I
F(AV)
, AVERAGE FORWARD CURRENT (AMPS)
I
PK
/I
AV
= 20
dc
SQUARE
WAVE
T
J
= 150C
10
5
SINE
WAVE
75C
1.0
0.1
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
1.0
1.1
v
F
, INSTANTANEOUS VOLTAGE (VOLTS)
Figure 1. Typical Forward Voltage
Figure 3. Average Power Dissipation
http://onsemi.com
4
MBRD320G, SBRD8320G, MBRD330G, SBRD8330G, MBRD340G, SBRD8340G,
MBRD350G, SBRD8350G, MBRD360G, SBRD8360G
TYPICAL CHARACTERISTICS
I F(AV) , AVERAGE FORWARD CURRENT (AMPS)
8.0
RATED VOLTAGE APPLIED
7.0
R
qJC
= 6C/W
6.0
5.0
4.0
3.0
2.0
1.0
0
80
90
100
110
120
130
140
150
160
T
C
, CASE TEMPERATURE (C)
SINE
WAVE
OR
SQUARE
WAVE
T
J
= 150C
dc
Figure 4. Current Derating, Case
I F(AV) , AVERAGE FORWARD CURRENT (AMPS)
4.0
T
J
= 150C
3.5
3.0
2.5
2.0
1.5
1.0
0.5
0
0
20
40
60
T
J
= 125C
T
J
= 150C
R
qJA
= 80C/W
SURFACE MOUNTED ON MIN.
PAD SIZE RECOMMENDED
dc
SQUARE WAVE
OR
SINE WAVE
V
R
= 25 V
80
100
120
140
160
T
A
, AMBIENT TEMPERATURE (C)
Figure 5. Current Derating, Ambient
1K
700
500
C, CAPACITANCE (pF)
300
200
100
70
50
30
20
10
0
10
20
30
40
50
60
70
V
R
, REVERSE VOLTAGE (VOLTS)
T
J
= 25C
Figure 6. Typical Capacitance
http://onsemi.com
5
