1N5620

Description
Rectifiers D MET 1A STD 800V
CategoryDiscrete semiconductor    diode
File Size433KB,3 Pages
ManufacturerSEMTECH
Websitehttp://www.semtech.com
Download Datasheet Parametric Compare View All

1N5620 Online Shopping

Suppliers Part Number Price MOQ In stock
1N5620 - - View Buy Now

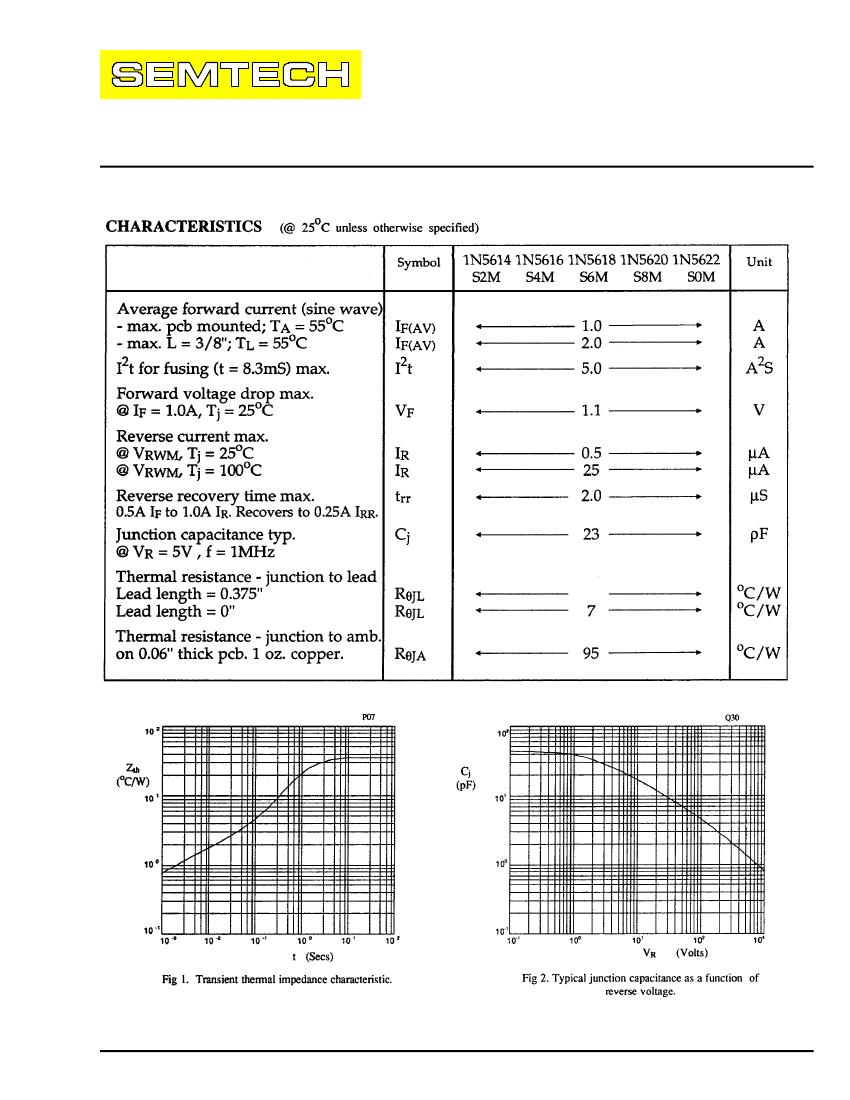

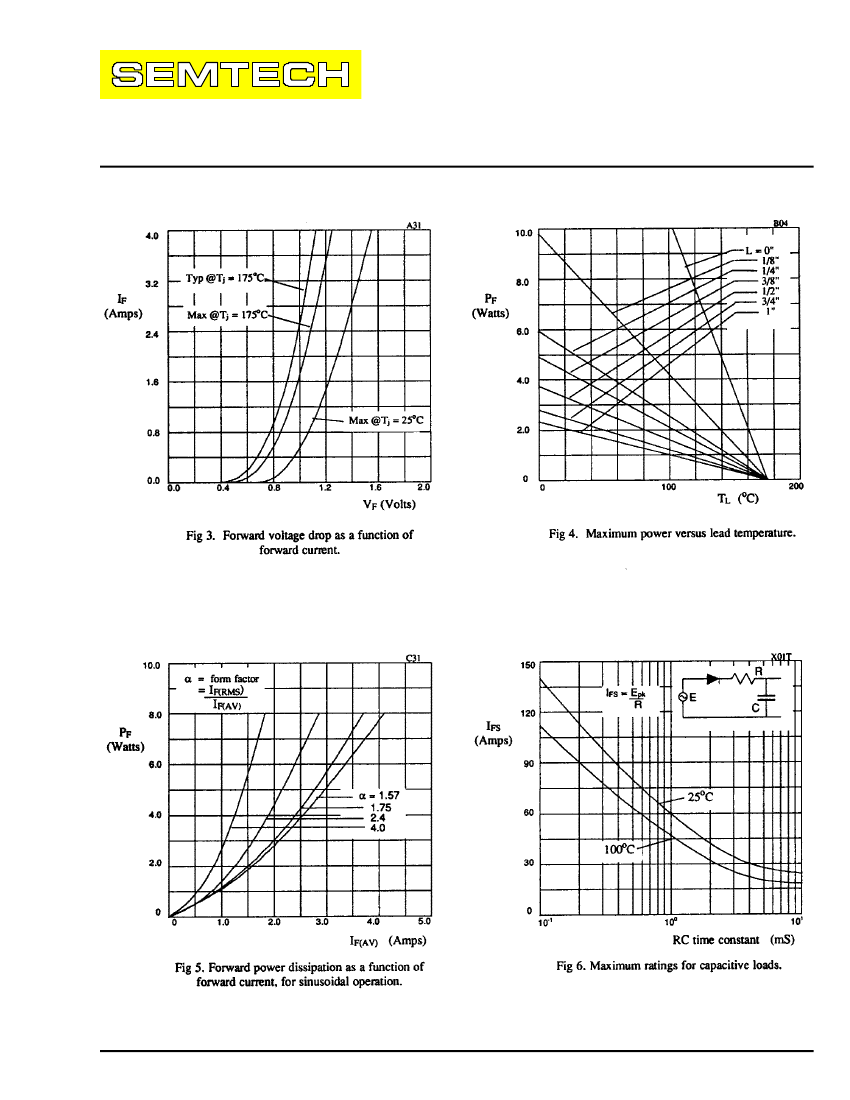

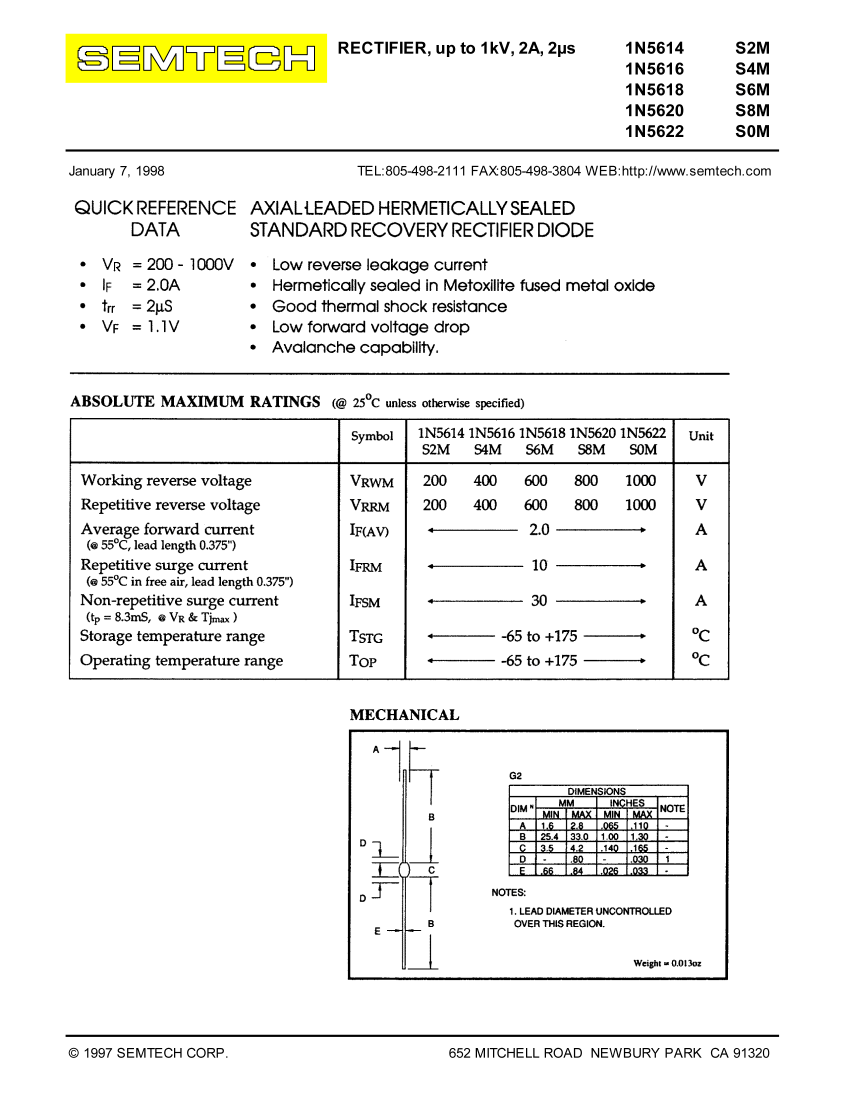

1N5620 Overview

Rectifiers D MET 1A STD 800V

1N5620 Parametric

Parameter NameAttribute value
MakerSEMTECH
package instructionHERMETIC SEALED PACKAGE-2
Contacts2
Reach Compliance Codeunknown
ECCN codeEAR99
Factory Lead Time9 weeks
Is SamacsysN
Other featuresMETALLURGICALLY BONDED
Shell connectionISOLATED
ConfigurationSINGLE
Diode component materialsSILICON
Diode typeRECTIFIER DIODE
Maximum forward voltage (VF)1.2 V
JESD-30 codeO-XALF-W2
Maximum non-repetitive peak forward current50 A
Number of components1
Number of terminals2
Maximum operating temperature175 °C
Minimum operating temperature-65 °C
Maximum output current1 A
Package body materialUNSPECIFIED
Package shapeROUND
Package formLONG FORM
Certification statusNot Qualified
Maximum repetitive peak reverse voltage800 V
Maximum reverse recovery time2 µs
surface mountNO
Terminal formWIRE
Terminal locationAXIAL
Base Number Matches1
These products are qualified to MIL-
PRF-19500/427 and are preferred parts
as listed in MIL-STD-701. They can be
supplied fully released as JAN, JANTX,
JANTXV and JANS versions.
These products are available in Europe
to DEF STAN 59-61 (PART 80)/029 to F
and FX levels.

1N5620 Related Products

1N5620 FP55-2084-BBW 1N5614 S4M S6M
Description Rectifiers D MET 1A STD 800V Fixed Resistor, Metal Film, 0.25W, 2080000ohm, 250V, 0.1% +/-Tol, 200ppm/Cel, Rectifiers D MET 1A STD 200V Rectifiers D MET 1A STD 400V Rectifiers D MET 1A STD 600V
Reach Compliance Code unknown compliant unknown unknown unknown
Number of terminals 2 2 2 2 2
Maximum operating temperature 175 °C 160 °C 175 °C 175 °C 175 °C
Minimum operating temperature -65 °C -55 °C -65 °C -65 °C -65 °C
Package form LONG FORM Axial LONG FORM LONG FORM LONG FORM
Maker SEMTECH - SEMTECH SEMTECH SEMTECH
package instruction HERMETIC SEALED PACKAGE-2 - HERMETIC SEALED PACKAGE-2 G2, 2 PIN G2, 2 PIN
Contacts 2 - 2 2 2
ECCN code EAR99 EAR99 EAR99 - EAR99
Factory Lead Time 9 weeks - 9 weeks 18 weeks 18 weeks
Shell connection ISOLATED - ISOLATED ISOLATED ISOLATED
Configuration SINGLE - SINGLE SINGLE SINGLE
Diode component materials SILICON - SILICON SILICON SILICON
Diode type RECTIFIER DIODE - RECTIFIER DIODE RECTIFIER DIODE RECTIFIER DIODE
Maximum forward voltage (VF) 1.2 V - 1.2 V 1.1 V 1.1 V
JESD-30 code O-XALF-W2 - O-XALF-W2 O-LALF-W2 O-LALF-W2
Maximum non-repetitive peak forward current 50 A - 50 A 30 A 30 A
Number of components 1 - 1 1 1
Maximum output current 1 A - 1 A 2 A 2 A
Package body material UNSPECIFIED - UNSPECIFIED GLASS GLASS
Package shape ROUND - ROUND ROUND ROUND
Certification status Not Qualified - Not Qualified Not Qualified Not Qualified
Maximum repetitive peak reverse voltage 800 V - 200 V 400 V 600 V
Maximum reverse recovery time 2 µs - 2 µs 2 µs 2 µs
surface mount NO - NO NO NO
Terminal form WIRE - WIRE WIRE WIRE
Terminal location AXIAL - AXIAL AXIAL AXIAL
Is it Rohs certified? - conform to incompatible incompatible incompatible
JESD-609 code - e3 e0 e0 e0
Terminal surface - Matte Tin (Sn) TIN LEAD Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb)
