10TA820

Description
Toggle Switches SPST ON-OFF STD LVR
CategoryTopical application    Mechanical and electrical/engineering/automation
File Size67KB,1 Pages
ManufacturerMountain Switch
Download Datasheet Parametric View All

10TA820 Online Shopping

Suppliers Part Number Price MOQ In stock
10TA820 - - View Buy Now

10TA820 Overview

Toggle Switches SPST ON-OFF STD LVR

10TA820 Parametric

Parameter NameAttribute value
Product CategoryToggle Switches
ManufacturerMountain Switch
RoHSNo
Contact FormSPST
Switch FunctionON - OFF
Mounting StyleThrough Hole
Termination StyleSolder Lug
Voltage Rating AC125 VAC
Bushing SizeM6
ActuatorPaddle
Terminal SealSealed
Factory Pack Quantity100
TypeToggle Switches

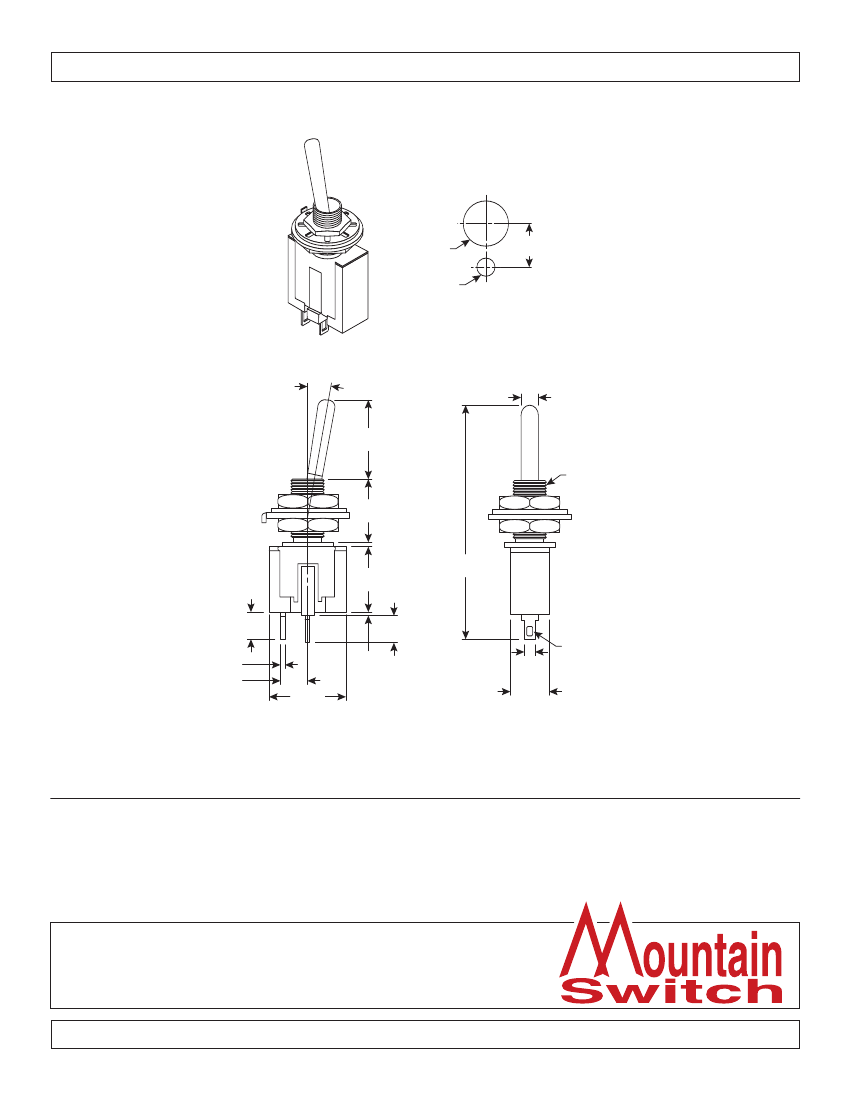

Last Update:
4-22-05
Dimensions: mm (In)
Ref. #:
MS-100537
ø6.2
(ø.244)
6.4
(.252)
ø2.39
(ø.094)
Mounting Holes
10˚
ø3
(ø.118)
11.99
(.472)
M6 x .75mm
7.49
(.295)
.508
(.02)
9.5
(.374)
3.99
(.157)
.609
(.024)
4.19
(.165)
.508
(.02)
11.48
(.452)
34.03
(1.34)
3.99
(.157)
2.01
(.079)
6.2
(.244)
.99 x 1.5
(.039 x .059)
Electrical Specifications:
Rating: 6A/125VAC
Contact resistance: 20mΩ max. @ 2.5VDC 1A
Insulation resistance: 100MΩ min. @ 500VDC
Dielectric strength: 1000VAC for 1 minute
Mechanical Specifications:
Circuit: 2P SPST, On-Off
Note:
Optional 10TB series color caps available
Miniature Toggle Switch
10TA820
Available from Mouser Electronics
www.mouser.com
1-800-346-6873
Specifications are subject to change without notice. No liability or warranty implied by this information. Environmental compliance based on producer documentation.
