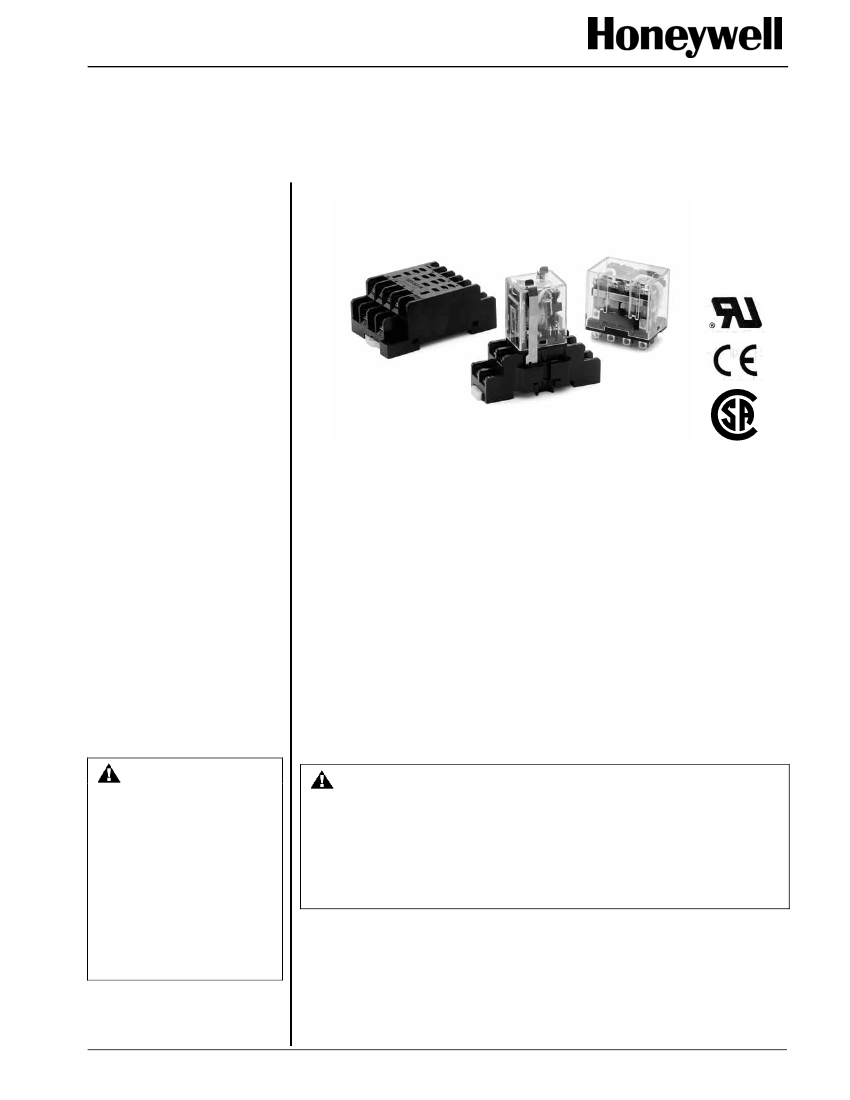

General Purpose
Power Relay
FEATURES
•
Small package design
•
ARC barrier equipped
•
Silver Cadium Oxide
contact
•
High dielectric strength
(1,800 Vac)
•
High reliability and long life
•
Ultra-high sensitivity with
quick response time
(25 ms max.)
•
High vibration and shock
resistance
•
Options include LED
indicator, diode protection,
and LED indicator/diode
protection
•
UL listed, CE certified,
CSA certified
TYPICAL APPLICATIONS
•
Control panels
•
Elevator panels
•
Machine tools
•
Test equipment
SZR-LY Series
®
SZR-LY Series general-purpose power relays are designed for a wide
range of applications including power as well as logic control for factory
machines and control panels.
SZR-LY Series relays break 10 A loads and are ideal for control panels
that require stable and reliable relays.
One standard and three options are available: LED indicator, internal
surge protection diode, and LED indicator/diode protection. Honeywell’s
global sales and distribution channels ensure a rapid response and excellent
customer service.
WARNING
PERSONAL INJURY
DO NOT USE these
products as safety or
emergency stop devices or
in any other application
where failure of the product
could result in personal
injury.
Failure to comply with
these instructions could
result in death or serious
injury.
WARNING
MISUSE OF DOCUMENTATION
•
The information presented in this product sheet is for reference only. Do
not use this document as a product installation guide.
•
Complete installation, operation, and maintenance information is provided
in the instructions supplied with each product.
Failure to comply with these instructions could result in death or
serious injury.
Sensing and Control
General Purpose
Power Relays
RELAY MODEL SELECTION GUIDE
Type
Standard
Terminal
Plug-in/Solder
PCB
LED Indicator
DIODE surge suppression
LED indicator + surge suppression
Plug-in/Solder
Contact
DPDT
4PDT
DPDT
4PDT
DPDT
4PDT
DPDT
4PDT
DPDT
4PDT
SZR-LY Series
Catalog Listing
SZR-LY2-1
SZR-LY4-1
SZR-LY2-1P
SZR-LY4-1P
SZR-LY2-N1
SZR-LY4-N1
SZR-LY2-D1
SZR-LY4-D1
SZR-LY2-X1
SZR-LY4-X1

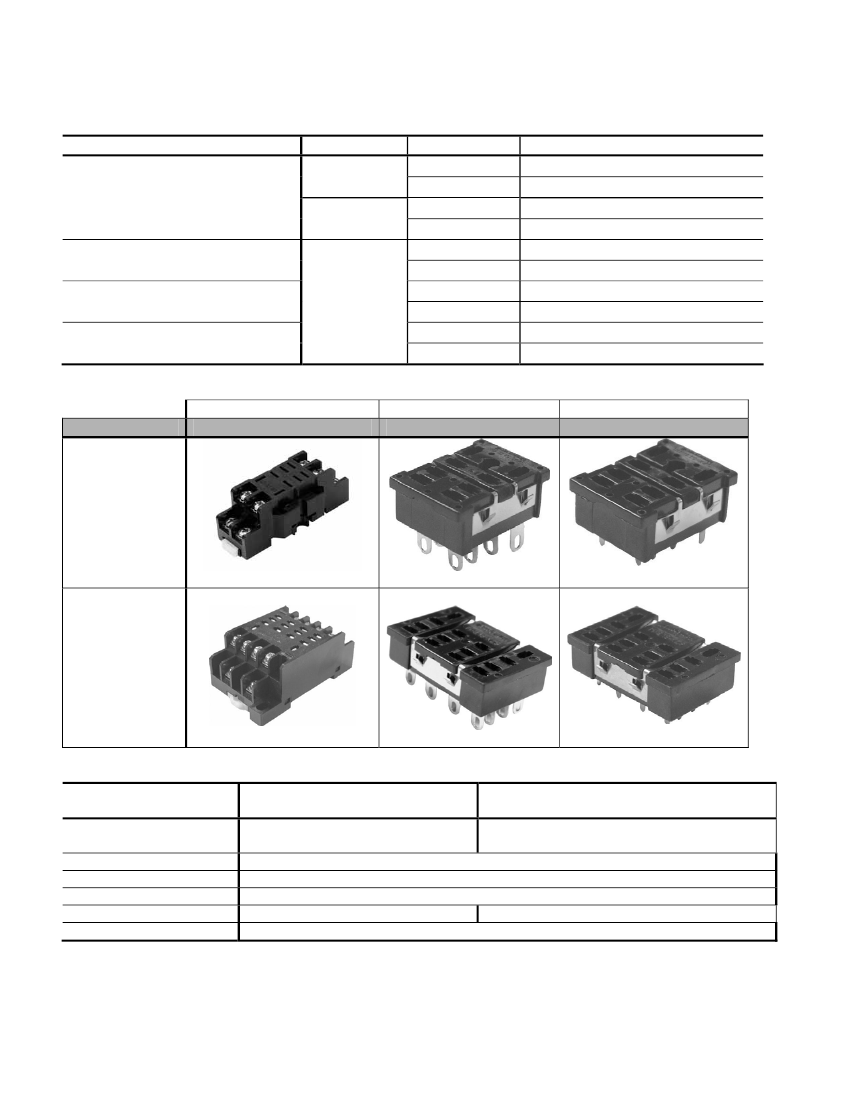

SOCKETS – REQUIRED ACCESSORIES
Din-rail Mounting
Relay Contact
DPDT
For use with
SZR-LY2-1, -
N1, -D1, -X1
Solder Terminal
PCB Terminal
SZX-SLF-08N
4PDT
For use with
SZR-LY4-1, -
N1, -D1, -X1
SZX-SLB-08
SZX-SLB-08P
SZX-SLF-14
CONTACT RATINGS
Load
Ratings
Rated load
Carry current
Max. operating voltage
Max. operating current
Max. switching capacity
Min. permissible load
Resistive Load
(p.f. = 1)
110 Vac, 10 A
24 Vdc, 10 A
SZX-SLB-14
SZX-SLB-14P
Inductive load
(p.f. = 0.4, L/R = 7 ms)
110 Vac, 7.5 A
24 Vdc, 5 A
10 A
250 Vac, 125 Vdc
10 A
1,100 VA, 240 W
5 Vdc, 100 mA
825 VA, 120 W
2 Honeywell
•
Sensing and Control
General Purpose
Power Relays
COIL RATINGS (DPDT)
Rated
Voltage
(V)
Rated Current (mA)
50 Hz
60 Hz
Coil
resistance
(Ω)
Coil Inductance (H)
Armature
Armature
OFF
ON
Pick-up
Voltage
(V)
SZR-LY Series
Dropout
Voltage
(V)
Maximum
Voltage
(V)
Power
Consumption
(W)
AC
6
12
24
50
100/110
110/120
200/220
220/240
6
12
24
48
100/110
214.1
106.5
53.8
25.7
11.7/12.9
9.9/10.8
6.2/6.8
4.8/5.3
183
91
46
22
10/11
8.4/9.2
5.3/5.8
4.2/4.6
12.2
46
180
788
3,750
4,430
12,950
18,790
40
160
650
2,600
11,000
0.04
0.17
0.69
3.22
14.54
19.2
54.75
83.5
0.17
0.73
3.2
10.6
45.6
0.08
0.33
1.3
5.66
24.6
32.1
94.07
136.4
0.33
1.37
5.72
21.0
86.2
Max.
80 %
Min.
30%
Approx.
1.0 W to 1.2 W
(60 Hz)
110%
Approx
0.9 W to 1.1 W
(60 Hz)
DC
150
75
36.9
18.5
9.1/10
Max.
80%
Min.
10%
110%
Approx.
0.9 W
COIL RATINGS (4PDT)
Rated Current (mA)
Rated
Voltage
(V)
50 Hz
60 Hz
Coil
resistance
(Ω)
Coil Inductance (H)
Armature
OFF
Armature
ON
Pick-up
Voltage
(V)
Dropout
Voltage
(V)
Maximum
Voltage
(V)
Power
Consumption
(W)
AC
6
12
24
50
100/110
200/220
6
12
24
48
100/110
386
199
93.6
46.8
22.5/25.5
11.5/13.1
330
170
80
40
19/21.8
9.8/11.2
5
20
78
350
1,800
6,700
25
100
350
1,600
6,900
0.02
0.1
0.38
1.74
10.5
33.1
0.09
0.39
1.41
6.39
32
0.04
0.17
0.67
2.88
17.3
57.9
0.21
0.84
2.91
13.6
63.7
Max.
80 %
Min.
30%
110%
Approx.
1.95 W to 2.5 W
(60 Hz)
DC
240
120
69
30
15/15.9
Max.
80%
Min.
10%
110%
Approx.
1.5 W
Note 1: The rated current and coil resistance are measured at a coil temperature of 23 °C [73.4 °F] with tolerances of +15%,
-20% for AC rated current and ± 15% for DC coil resistance.
Note 2: The rated current of N1 and X1 types is 4 mA higher than the value in the table above.
Honeywell
•
Sensing and Control
3
General Purpose
Power Relays
SPECIFICATIONS
Contact material
Contact resistance
Operate time
Release time
Operating
Mechanical
frequency
Electrical
Insulation resistance
Dielectric withstand voltage
Silver Cadium Oxide
Max. 50 MOhm
Max. 25 ms
Max. 25 ms
18,000 operations per hour
1,800 operations per hour
SZR-LY Series
Min. 100 Mw at 500 Vdc
1,800 Vac 50 Hz/60 Hz for one minute between non-continuous current
carrying terminals and between coil thermals and contact terminals
1,000 Vac 50/60 Hz for 1 minute between contacts of same polarity
Vibration
Mechanical durability
10 Hz to 55 Hz at double amplitude of 1.0 mm
resistance
Malfunction durability
10 Hz to 55 Hz at double amplitude of 1.0 mm
Shock resistance Mechanical durability
1,000 m/s
2
(approx. 100 g)
Malfunction durability
200 m/s
2
(approx. 20 g)
Service life
Mechanical
AC: Min. 50 million operations
(at operating frequency of 18,000 operations/hour)
DC: Min. 100 million
operations (at operating frequency of 18,000 operations/hour)
Electrical
DPDT: Min. 500,000 operations
(at operating frequency of 1,800 operations/hour)
4PDT: Min. 200,000
operations (at operating frequency of 1,800 operations/hour)
Weight
DPDT: Approximately 35 g 4PDT: Approximately 65 g
Note 1: The data shown above are of initial value
CHARACTERISTIC DATA
Max. Switching capacity
Rated operatin g current(A)
Electrical life
10
5
AC inductive
p.f.=0.4
DC resistive
Number of operations(×
1 0
4
)
1,000
500
DC24V resistive load
AC110V resistive load
AC resistive
DPDT
1
0.5
0.1
5 10
50 100
500
Rated operating voltage(V)
DC inductive
L/R=7ms
100
50
10
0
2 4
DC24V
(L/R=7ms)
AC110V
(cosf =0.4)
6
8 10 12
14 16
Current(A)
Max. Switching capacity
Rated operating current(A)
AC resistive
Electrical life
10
5
AC inductive
p.f.=0.4
DC resistive
Number of operations(×
10
4
)
1,000
500
DC24V resistive load
AC110V resistive load
4PDT
1
0.5
0.1
5 10
50 100
500
Rated operating voltage(V)
DC inductive
L/R=7ms
100
50
10
DC24V
(L/R=7ms)
AC110V
(cosf =0.4)
0
2 4
6
8 10 12
14 16
Current(A)
4 Honeywell
•
Sensing and Control
General Purpose
Power Relays
CATALOG LISTING MATRIX
SZR-LY Series
1
P – AC110-120V
SZR – LY 2 – ___
Terminal Type
__ = Solder/Plug-in
P = PCB
Mounting Type
1 = Terminal
Option Type
__
= No Indicator or Diode
D = Internal Surge Protection Diode
N = Red LED Operation Indicator
X = LED and Diode
Poles
2 = DPDT
4 = 4PDT
Amp Rating:
MY = 5 A or 3 A
LY = 10 A
Product Type
General Purpose Relay
Voltage Rating:
AC6V
=
AC12V
=
AC24V
=
AC50V
=
AC100V
=
AC110-120V =
AC200V
=
AC220V
=
AC220-240V =
DC6V
=
DC12V
=
DC24V
=
DC48V
=
DC100V
=
6 Vac
12 Vac
24 Vac
50 Vac
100 Vac
110/120 Vac
200 Vac
220 Vac
220/240 Vac *
6 Vdc
12 Vdc
24 Vdc
48 Vdc
100 Vdc
240 Vac - Submitted for UL approval
Honeywell
•
Sensing and Control
5
