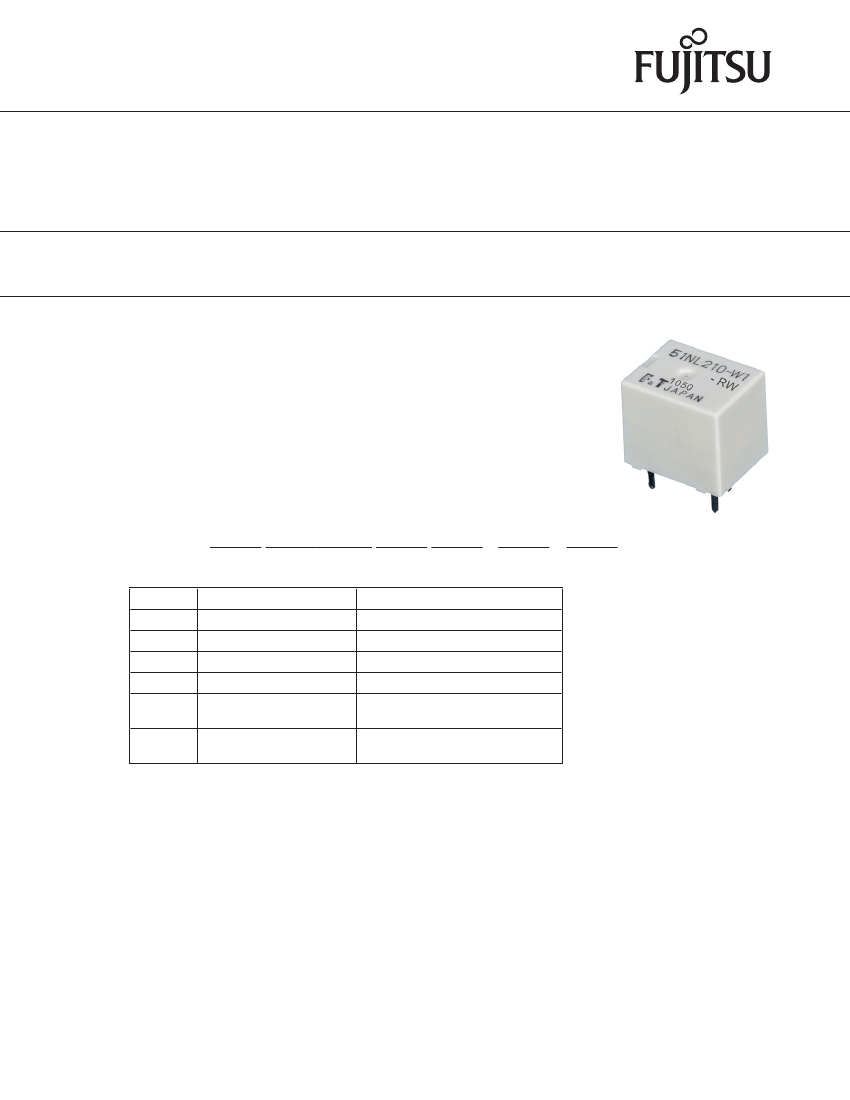

COMPACT HIGH POWER RELAY
1 POLE - 30A (For automotive applications)
FBR51 Latching Series
■
FEATURES
•
•
•
•
•
•
Magnetically latched PCB relay
Increased ambient temperature range up to 125C
Two coils with set and reset function
Refl ow soldering capable
Two types of contact materials
RoHS compliant
Please see page 6 for more information
■
Part Numbers
[Example]
FBR51
(a)
(a)
(b)
(c)
(d)
(e)
(f)
(g)
Relay type
Enclosure
Operating function
Coil type
Coil rated voltage
Contact material
Mounting process
N
(b)
L
(c)
2
(d)
10
(e)
-
W1
(f)
-
RW
(g)
FBR51 : FBR51 series
N : Plastic sealed type
L : Latching type
2 : Double coil
10 : 10VDC
W1 : AgSnO2In
E : AgNi
Nil : Standard
RW
: Through hole reflow (THR)
* E (AgNi) versions used for special low current applications that require lower contact resistance (dark current applications)
Actual markings does not carry the type name: "FBR"
E.g.: Ordering code: FBR51NL210-W1-RW Actual marking: 51NL210-W1-RW
1
FBR51 Series
■
Specifications
Item
W1 contact
Contact
Configuration
data
Material
Voltage drop
Contact rating
Max. carrying current
Max. switching voltage
Max. switching current
Max. switching load*
Coil
Timing
data
Life
Operating ambient tem-
perature range
Set / reset
Mechanical
Electrical
1A 6VDC
1 form C
AgSnO2In
Max. 100 mV at 1A,
12VDC
AgNi
Max. 100 mV at 2A,
12VDC
Locked motor load
25 °C, 100% rated coil voltage
Reference
Reference
0.1A 5VDC
-40ºC ~ +125ºC
Max. 5 ms (without bounce)
Min. 1 x 10⁶ operations
Min. 200 x 103
operations 14VDC
25A (Locked motor
load)
Open con-
tacts
Coil contact
Other
Vibration
resistance
Misoperation
Endurance
Shock resis-
tance
Sealing
Dimensions / weight
*
FBR51
E contact
Remarks / conditions
25A at 14VDC
30A / 1 hour
16VDC
35A
Reference
No frost
At nominal voltage
Min. 50 x 103
operations, 14VDC
25A (Locked motor
load)
Insula-
tion**
Insulation resistance
Dielectric
strenght
Min. 100MΩ at 500VDC
500VAC (50/60Hz), 1 minute
500VAC (50/60Hz), 1 minute
10 to 200Hz, acceleration 44m/s2 (4.5G)
maximum
10 to 200Hz, acceleration 44m/s2 (4.5G)
maximum
100m/s² (11±1ms
1,000m/s² (6±1ms)
Plastic sealed RT III
12.1 x15.5x13.7 mm / approx. 6g
Misoperation
Endurance
:
Minimum switching loads mentioned above are reference values. Please perform the confirmation test with actual load before production
since reference values may vary according to switching frequencies, environmental conditions and expected reliability levels.
Care shall be taken on the heat generated on PC board when maximum carrying current exceeds 10A. Please perform the confirmation test
with actual conditions.
:
Values of insulation are under 20°C ± 15°C, 65 ± 20%.
**
2
FBR51 Series
■
Coil Data
Coil
code
10
Coil Resistance +/-10%
(Ω)
P90
S90
Set Voltage
*
(VDC)
+6.3 (20°C)
+8.9(125°C)
-
Reset Voltage
*
(VDC)
-
+6.3 (20°C)
+8.9(125°C)
P: Set coil
S: Reset coil
Note: All values in the table are valid at 20
o
C and zero contact current, unless otherwise specified.
*
:
Specified operated values are valid for pulse wave voltage.
Please use at rated coil voltage. Please refer to characteristic data and set up adequate voltage in case of use at over voltage.
■
Dimensions
•
Dimensions
15.5
+0.2
13.7
＋
0.3
0.4
2.5
10.2
Dimensions of the terminals do not include thickness of pre-solder.
•
Schematics
2
-
１
(BOTTOM VIEW)
3
P
+ 4
-
6
S
5
3.5
+0.5
1.6
12.1
+0.2
3
FBR51 Series
•
PC Board Mouting Hole Layout
(BOTTOM VIEW)
2.5
１
0.2
5 -
φ
1.3
- 0.05
+0.10
5
φ
1.4
-0.05
+0.10
7.6
8.7
Tolerance of PC board mounting hole layout : ±0.1 unless otherwise specified.
( ): Reference value
Unit: mm
■
Characteristic Data (Reference)
Operating range
16
14
12
20A
30A
10000
10
Contact current capacity
Applied voltage (V)
10
8
6
4
2
0
-40
Applicable
voltage range
e
voltag
et
Set/res
Applied time (sec.)
1000
100
55A: Melting of bobbin mold
60A: Melting of bobbin mold, short of coil layer
10
-20
0
20
40
60
80
100
120
0
50
100
Ambient temperature (
℃)
Current (A)
Vibration resistance characteristics
100
Acceleration (m/s
2
)
80
60
40
20
0
10
100
1000
10000
Chattering
Break contact
Reset
X-direction
Frequency: 10 to 2000Hz
Acceleration: 98m/s
2
max.
Shock direction: See diagam below
Detection level: Chatter > 1ms
Z
FBR51L
X
Y
Frequency (Hz)
4
Shock resistance characteristics
6
4
2
0
-40
ge
t volta
et/rese
S
Applied ti
Applied
100
55A: Melting of bobbin mold
60A: Melting of bobbin mold, short of coil layer
10
-20
0
20
40
60
80
100
120
0
FBR51 Series
50
100
Ambient temperature (
℃)
Current (A)
Vibration resistance characteristics
100
Acceleration (m/s
2
)
80
60
40
20
0
10
100
1000
10000
Chattering
Break contact
Reset
X-direction
Frequency: 10 to 2000Hz
Acceleration: 98m/s
2
max.
Shock direction: See diagam below
Detection level: Chatter > 1ms
Z
FBR51L
X
Y
Frequency (Hz)
Shock resistance characteristics
1000
Shock level (m/s
2
)
800
600
400
200
0
Reversed to opposed contact side
Shock application time: 6±1ms half-sine wave
Test conditions: Coil energized and de-energized
Shock direction: See diagram below
Detection level: Chatter > 1ms
Z2
Chattering
Z1
Y2
FBR51L
X1
X2
Y1
X
1
X
2
Y
1
Y
2
Z
1
Z2
Shock direction
: Reversed from reset to set
: Break contact (reset)
Make contact: Min. 980m/s
2
at all directions
5
