8969-0-05-00-00-00-03-0: DescriptionCircuit Board Hardware - PCB SQUARE PRESS FIT PRINTED CIRCUIT PIN; CategoryTopical application Mechanical and electrical/engineering/automation; File Size761KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com

Download Datasheet Parametric Compare View All

8969-0-05-00-00-00-03-0 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	8969-0-05-00-00-00-03-0	-	-	View	Buy Now

8969-0-05-00-00-00-03-0 Overview

Circuit Board Hardware - PCB SQUARE PRESS FIT PRINTED CIRCUIT PIN

8969-0-05-00-00-00-03-0 Parametric

Parameter Name	Attribute value
Product Category	Circuit Board Hardware - PCB
Manufacturer	Mill-Max
RoHS	Details
Product	Pins
Packaging	Bulk
Factory Pack Quantity	500

Preview

Download Datasheet

View All

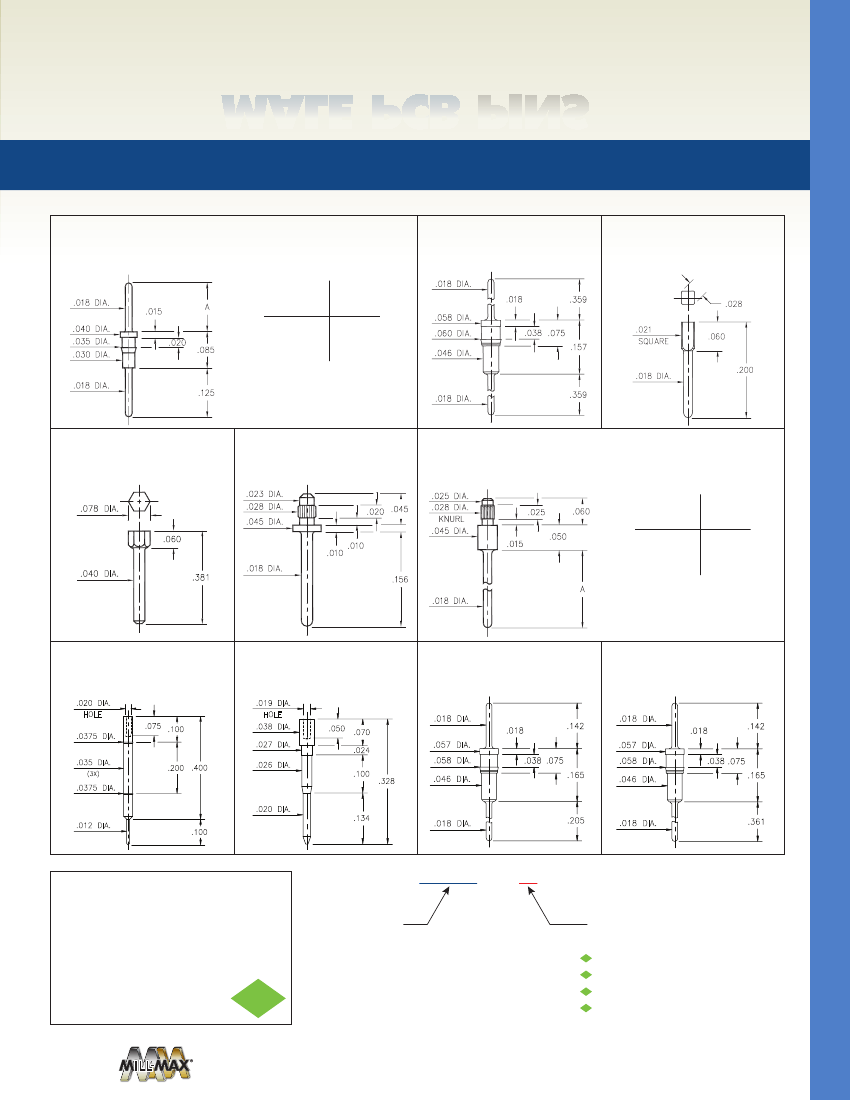

MALE PCB

PINS

PRINTED CIRCUIT PINS

8685/9036

XXXX-0-00-XX-00-00-03-0

9051

Basic Part

Number

Length

A

Press-fit in .033 mounting hole

Pin material is Phosphor Bronze 544 (B2)

9051-0-00-XX-00-00-03-0

Press-fit in .057 mounting hole

8969

8969-0-05-XX-00-00-03-0

Square press-fit in .023 plated through-hole

(Use .7mm drill prior to plating)

8685-0

9036-0

.125

.175

8979

8979-0-00-XX-00-00-03-0

Hex press-fit in .074 plated through-hole

.078 DIA.

9159

9159-0-00-XX-00-00-03-0

Press-fit in .026 mounting hole

3155/5155

X155-0-00-XX-00-00-03-0

Press-fit in .026 mounting hole

Pin material is Phosphor Bronze 544 (B2)

Basic Part

Number

.060

Length

A

.040 DIA.

3155-0

5155-0

.381

.180

.130

4194

HOLE

4194-0-00-XX-00-00-08-0

.020 DIA.

.075 .100

5556

.019 DIA.

HOLE

.038 DIA.

.027 DIA.

Wire crimp termination & press-fit in .036 hole

Accepts wire sizes 30 AWG Max. / 36 AWG Min.

5556-0-00-XX-00-00-38-0

3790

.018 DIA.

Wire crimp termination. Accepts wire sizes

30 AWG Max. / 36 AWG Min.

3790-0-00-XX-00-00-03-0

Press-fit in .057 mounting hole

3796

.142

3796-0-00-XX-00-00-03-0

Press-fit in .057 mounting hole

.018 DIA.

.018

.057 DIA.

.0375 DIA.

.035 DIA.

(3X)

.050

.070

.024

.100

.018

.057 DIA.

.058 DIA.

.328

.142

.200 .400

.026 DIA.

.038 .075

.165

.058 DIA.

.046 DIA.

.038 .075

.165

.0375 DIA.

.046 DIA.

.020 DIA.

.012 DIA.

.134

.100

.018 DIA.

.205

.018 DIA.

.361

SPECIFICATIONS:

Pin Material:

Brass Alloy 360, 1/2 Hard

( Except where noted )

Dimensions: Inches

Tolerances On:

Lengths: ± .005

Diameters: ± .002

Angles:

±2°

ORDER CODE: XXXX - X - 0X -

XX

- 00 - 00 - XX - 0

BASIC PART #

SPECIFY PIN FINISH:

01

200

μ”

TIN/LEAD OVER NICKEL

80

200

μ”

TIN OVER NICKEL (RoHS)

15

10

μ”

GOLD OVER NICKEL (RoHS)

21

20

μ”

GOLD OVER NICKEL (RoHS)

34

50

μ”

GOLD OVER NICKEL (RoHS)

2011/65/EU

RoHS - 2

Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com

PAGE 209 | MALE PCB PINS
