2ALM7LB-048: DescriptionSwitch Actuators Push Button Oper. 22mm, Ill Mushroom, Mom, Clear, 48 V, LED; CategoryTopical application Mechanical and electrical/engineering/automation; File Size290KB，2 Pages; ManufacturerAltech; Websitehttp://www.altechcorp.com/

Download Datasheet Parametric View All

2ALM7LB-048 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	2ALM7LB-048	-	-	View	Buy Now

2ALM7LB-048 Overview

Switch Actuators Push Button Oper. 22mm, Ill Mushroom, Mom, Clear, 48 V, LED

2ALM7LB-048 Parametric

Parameter Name	Attribute value
Product Category	Switch Actuators
Manufacturer	Altech
Type	Pushbutton Switch
Color	Clear
Product	Actuators

Preview

Download Datasheet

View All

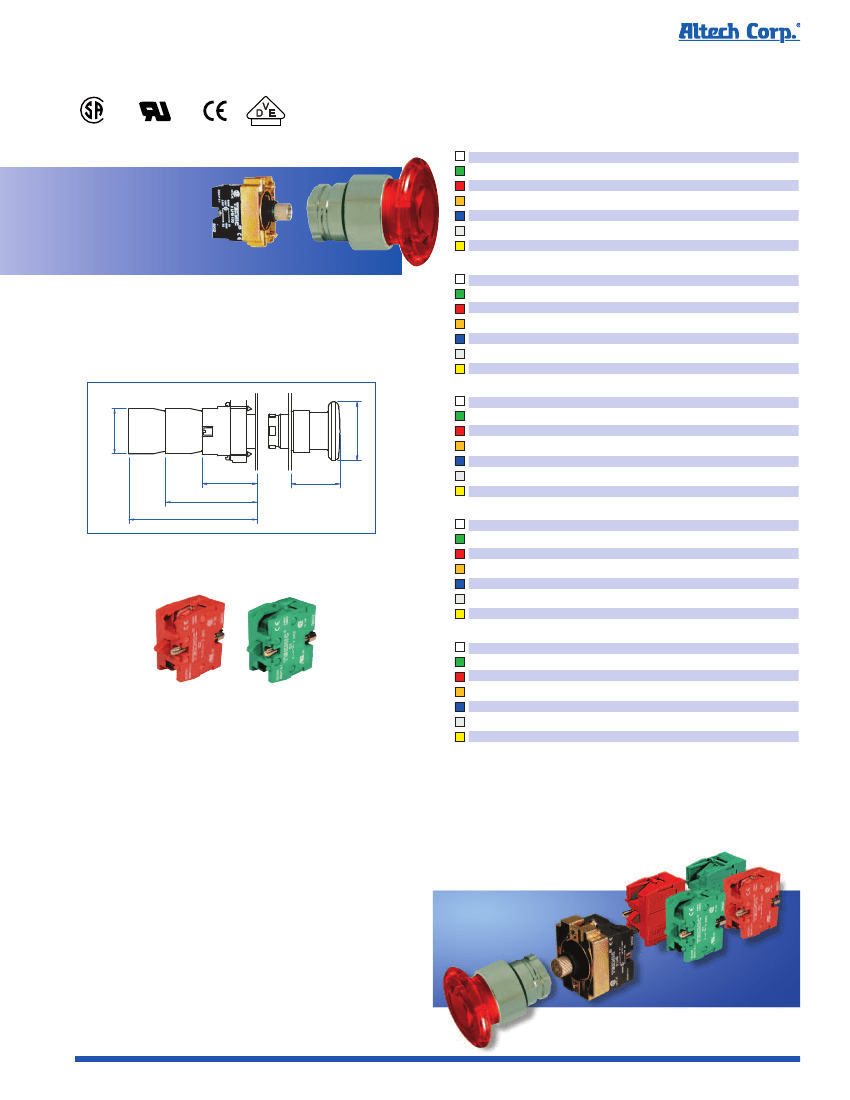

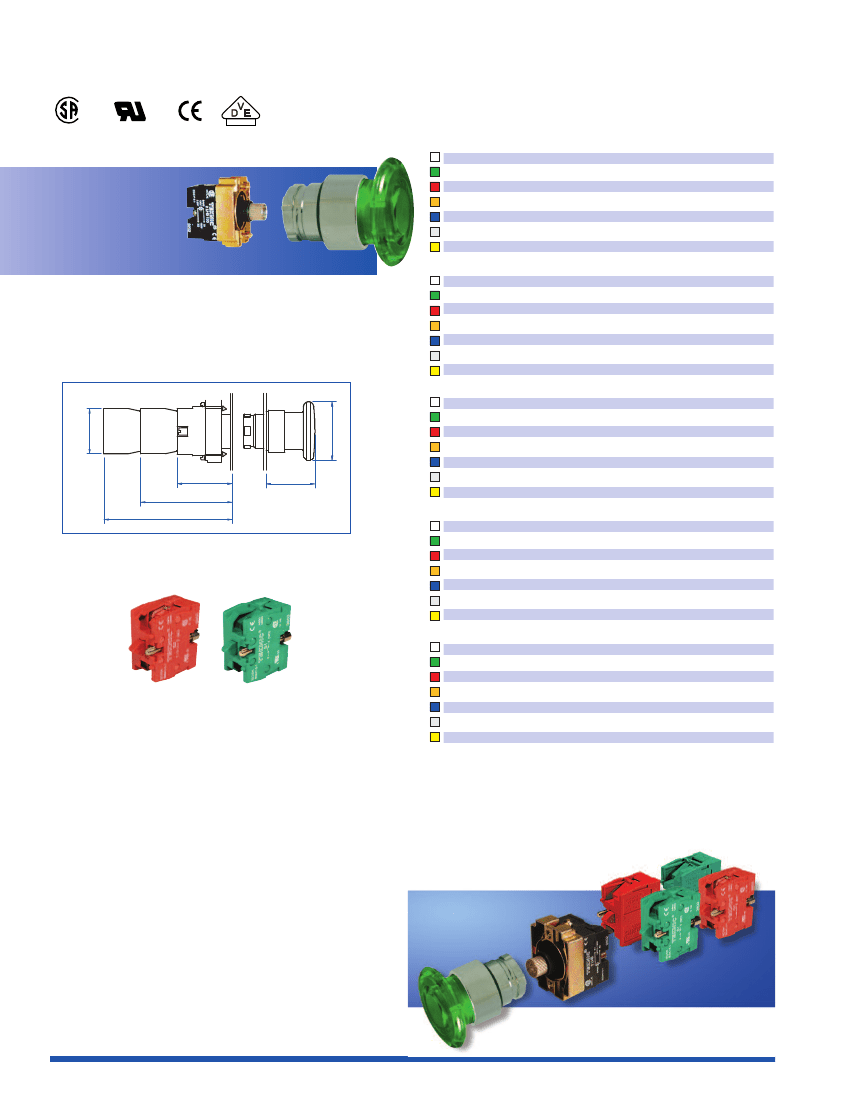

22mm LED Illuminated Mushroom Metal Operators

C

US

C

Mushroom

Illuminated

Momentary

E225660

US

NEMA Type 4X

12 environment.

Certified for

Color

with LED bulb, bulb holder and mounting bracket

12V AC/DC

White

40mm

Green

40mm

Red

Amber

40mm

Blue

40mm

Clear

40mm

Yellow

40mm

24V AC/DC

White

40mm

Green

40mm

Red

40mm

Amber

40mm

Blue

40mm

Clear

40mm

Yellow

40mm

48V AC/DC

White

40mm

Green

40mm

Red

40mm

Amber

40mm

Blue

40mm

Clear

40mm

Yellow

40mm

110V AC*

White

Green

Red

Amber

Blue

Clear

Yellow

40mm

Description

Head,

12VAC/DC

24VAC/DC

48VAC/DC

110VAC*

2ALM1LB-012

2ALM3LB-012

2ALM4LB-012

2ALM5LB-012

2ALM6LB-012

2ALM7LB-012

2ALM8LB-012

2ALM1LB-024

2ALM3LB-024

2ALM4LB-024

2ALM5LB-024

2ALM6LB-024

2ALM7LB-024

2ALM8LB-024

2ALM1LB-048

2ALM3LB-048

2ALM4LB-048

2ALM5LB-048

2ALM6LB-048

2ALM7LB-048

2ALM8LB-048

2ALM1LB-110

2ALM3LB-110

2ALM4LB-110

2ALM5LB-110

2ALM6LB-110

2ALM7LB-110

2ALM8LB-110

Cat No.

Dimensional Drawings

All dimensions shown in millimeters.

To convert to inches multiply by 0.03937

Illuminated Mushroom Momentary

85

61

37

32

Switch Contacts

(sold separately)

40

29

• Heavy-duty contact blocks with mounting screws.

Blocks can be stacked 2 blocks across by 3 blocks deep

for a total of 6 circuits.

• Contact blocks are available with silver contacts or

gold plated contacts

• Self-wiping contacts

Panel Mount

Normally Open Silver

Normally Closed Silver

Normally Open Gold Plated

Normally Closed Gold Plated

Base Mount*

Normally Open Silver

Normally Closed Silver

Normally Open Gold Plated

Normally Closed Gold Plated

*

For use with non-illuminated

operators in thermoplastic

or aluminum enclosures listed

on pages 30 and 36-37.

*110V DC and 230V DC version is available on request.

230V AC*

White

Green

Red

Amber

Blue

Clear

Yellow

40mm

Head,

230VAC

*

230VAC

*

230VAC

*

230VAC

*

230VAC

*

230VAC

*

230VAC

*

2ALM1LB-230

2ALM3LB-230

2ALM4LB-230

2ALM5LB-230

2ALM6LB-230

2ALM7LB-230

2ALM8LB-230

Exploded Assembly View

• Up to four switch contacts can be installed with any

illuminated operators.

• Switch contacts and operators are sold

S1

separately. Preassembled push buttons

are available on request.

S1

S2

S3

S4

S2

S5

S6

S7

S8

S2

S1

12

Altech Corp.

®

• 35 Royal Road • Flemington, NJ 08822-6000 • Phone (908)806-9400 • FAX (908)806-9490 • www.altechcorp.com
