201S datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> 201S

201S: DescriptionPushbutton Switches; CategoryMechanical and electronic products switch; File Size48KB，1 Pages; ManufacturerSwitchcraft

Download Datasheet Parametric View All

201S Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	201S	-	-	View	Buy Now

201S Overview

Pushbutton Switches

201S Parametric

Parameter Name	Attribute value
Maker	Switchcraft
Reach Compliance Code	compliant
ECCN code	EAR99
body height	13.5 mm
Contact (AC) maximum rated R load	3A@100VAC
Maximum contact current (AC)	3 A
Maximum contact voltage (AC)	100 V
Installation features	PANEL MOUNT-THREADED
surface mount	NO
Switch action	MOMENTARY
switch function	SPST
Switch type	PUSHBUTTON SWITCH
Termination type	SOLDER

Preview

Download Datasheet

View All

0.97

SL183FX

SL184FX

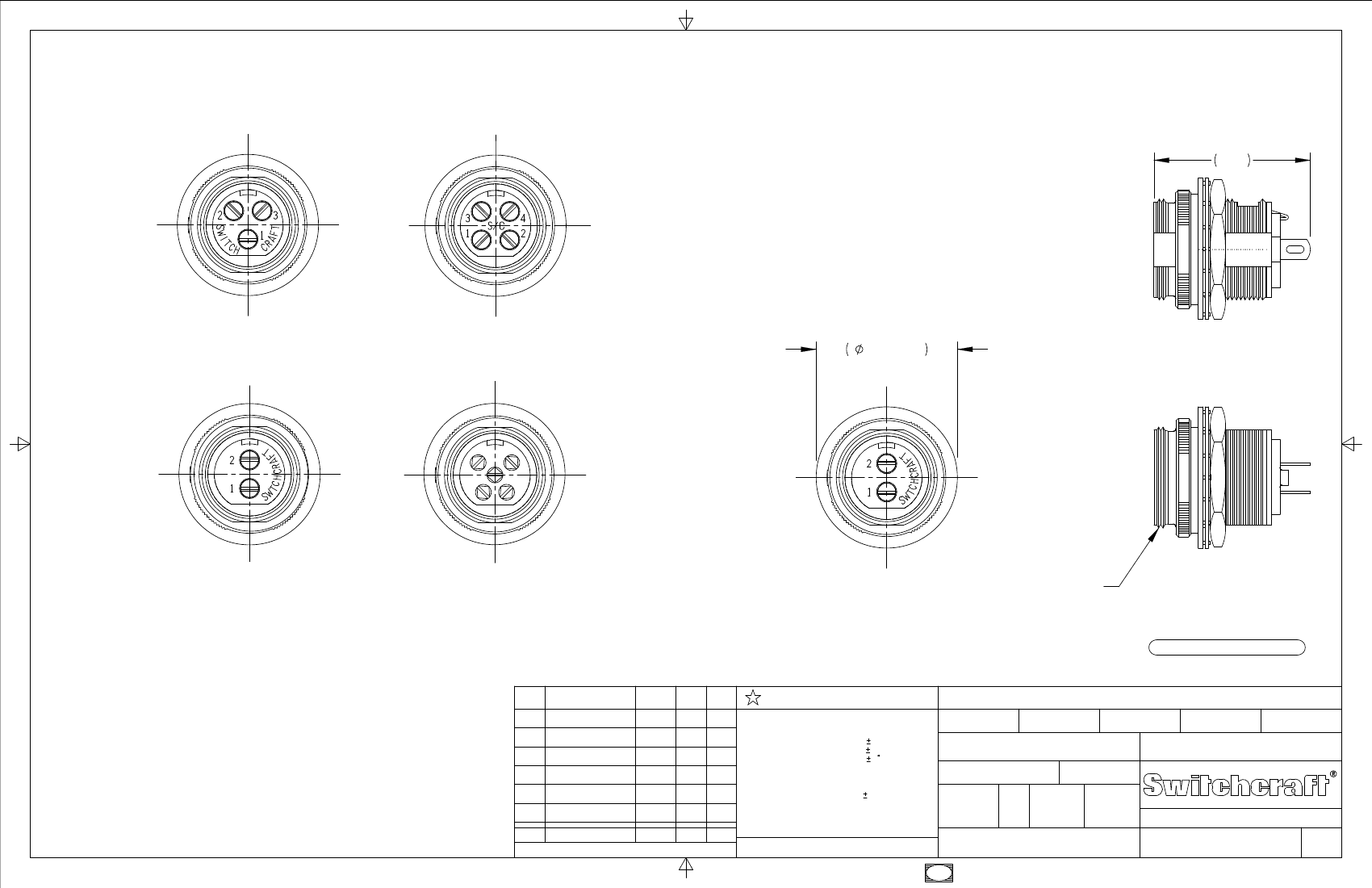

0.875±0.01

SL182FX

SL185FX

5/8-27 UNC- 2A THREAD

BOTH ENDS REF

CUSTOMER DRAWING

THIS DRAWING DESCRIBES A DESIGN CONSIDERED PROPRIETARY IN NATURE, DEVELOPED AND MANUFACTURED

BY SWITCHCRAFT INC. AND IS RELEASED ON A CONFIDENTIAL BASIS FOR IDENTIFICATION PURPOSES ONLY.

STAR SYMBOL DENOTES CRITICAL DIMENSION

NOTES:

HOUSING AND PIN ASSEMBLY SHIPPED UNASSEMBLED

HEX NUT AND WASHERS SHIPPED UNASSEMBLED

THESE PRODUCTS ARE RoHS COMPLIANT

REV

UNLESS OTHERWISE SPECIFIED

1. ALL DIMENSIONS IN INCHES

- TWO PLACE DECIMALS

0.01

- THREE PLACE DECIMALS

0.005

- ANGLES

- ALL DIA. CONCENTRIC WITHIN 0.005 T.I.R.

2. FEATURES ON THE SAME CENTERLINE

MUST BE ALIGNED WITHIN 0.002

26150

ECO NUMBER

SIZE

WIDTH

MULT

LBS/M

TEMPER

FINISH

SPEC No.

FIRST USED ON

SCALE

MATERIAL

SPEC No.

DATE DRAWN

CHKD

1:1

APVD

11-30-06 SRC

DATE

SRC

APVD

3. REMOVE ALL BURRS

11-30-06

NAME

SRC

11-30-06

SRC

11-30-06

PART No.

SHEET

REV

REVISIONS

DO NOT SCALE DRAWING

SLIM-LINE FEMALE FRONT

PANEL MOUNT RECEPTICLE, RoHS

SL18_FX SERIES

SolidWorks CAD File
