Series YB
Toggles
Short Body Pushbuttons
General
Specifications
Electrical Capacity (Resistive Load)
Power Level (silver):
Logic Level (gold):
3A @ 125V AC or 3A @ 250V AC or 3A @ 30V DC
0.4VA maximum @ 28V AC/DC maximum
(Applicable Range 0.1mA ~ 0.1A @ 20mV ~ 28V)
Note: Find additional explanation of operating range in Supplement section.
Pushbuttons
Rockers
Programmable
Illuminated PB
Other Ratings
D
Contact Resistance:
Insulation Resistance:
Dielectric Strength:
Mechanical Life:
Electrical Life:
Nominal Operating Force:
Contact Timing:
Travel:
Keylocks
50 milliohms maximum for silver; 100 milliohms maximum for gold
200 megohms minimum @ 500V DC
1,000V AC minimum between contacts for 1 minute minimum;
1,500V AC minimum between contacts & case for 1 minute minimum
1,000,000 operations minimum for momentary circuit
200,000 operations minimum for maintained circuit
100,000 operations minimum
Single pole: 1.47N for nonsealed; 1.67N for sealed
Double pole: 2.75N for nonsealed; 2.94N for sealed
Nonshorting (break-before-make)
Pretravel .059” (1.5mm); Overtravel .059” (1.5mm); Total Travel .118” (3.0mm)
Materials & Finishes
Rotaries
Housing/Bezel:
Snap-in Frame:
Base:
Movable Contactor:
Movable Contacts:
Stationary Contacts:
Switch Terminals:
Lamp Terminals:
Glass fiber reinforced polyamide (UL94V-0)
Stainless steel
Glass fiber reinforced polyamide (UL94V-0)
Phosphor bronze with silver or gold plating
Silver alloy with silver plating or brass with gold plating
Silver alloy or copper with gold plating
Phosphor bronze with tin plating
Phosphor bronze with tin plating
Slides
Tactiles
Environmental Data
Operating Temperature Range:
Humidity:
Vibration:
Shock:
Sealing:
Touch
–25°C through +50°C (–13°F through +122°F) for Illuminated
–25°C through +70°C (–13°F through +158°F) for Nonilluminated
90 ~ 95% humidity for 96 hours @ 40°C (104°F)
10 ~ 55Hz with peak-to-peak amplitude of 1.5mm traversing the frequency range & returning
in 1 minute; 3 right angled directions for 2 hours
50G (490m/s
2
) acceleration (tested in 6 right angled directions, with 5 shocks in each direction)
IP65 of IEC60529 standard for panel seal models
Tilt
Installation
Indicators
Mounting Torque:
Quick Connect Force:
Soldering Time & Temperature:
0.785Nm (6.95 lb
•
in) maximum
24.5N maximum downward force on connector
Manual Soldering: See Profile A in Supplement section.
Standards & Certifications
Accessories
Flammability Standards:
UL:
CSA:
Supplement
UL94V-0 housing & base
File No. E44145 - Recognized only when ordered with marking on switch.
Add “/U” or “/CUL” before first dash in part number to order UL recognized switch.
All solder lug models recognized at 3A @ 125/250V AC or 0.4VA @ 28V AC/DC maximum.
File No. 023535_0_000 - Certified only when ordered with marking on switch.
Add “/C” before first dash in part number to order CSA certified switch.
All solder lug models certified at 3A @ 125/250V AC or 0.4VA @ 28V AC/DC maximum.
D100
www.nkk.com
Short Body Pushbuttons
Series YB
Toggles
Distinctive
Characteristics
Full face or spot illumination with incandescent lamps or multi-element LEDs,
with or without resistors.
Choice of super bright LEDs in white, green, and blue as well as bright LEDs
in red, amber, and green.
Combination bezel-barrier is an integral part of the switch and
prevents accidental actuation.
Unique thermoplastic elastomer seal inside caps plus
rolled sleeve of nitrile butadiene rubber at joining of
housing and inner case, all for added protection to
interior mechanism.
Dust and oil tight as well as splashproof panel seal
models qualify to IP65 of IEC60529 Standards (similar
to NEMA 4 and 13). Panel seal models provided
with exterior o-ring.
Distinctive design of snap-action contacts for shock
resistance, long life, and sensitive actuation.
High density design to give behind panel depth of less than
one inch.
Terminals are epoxy sealed to lock out flux, dust, solvents, and other
contaminants.
Latchdown for indication of circuit status, plus audible, tactile feedback
with smooth, responsive operation.
Matching indicators available.

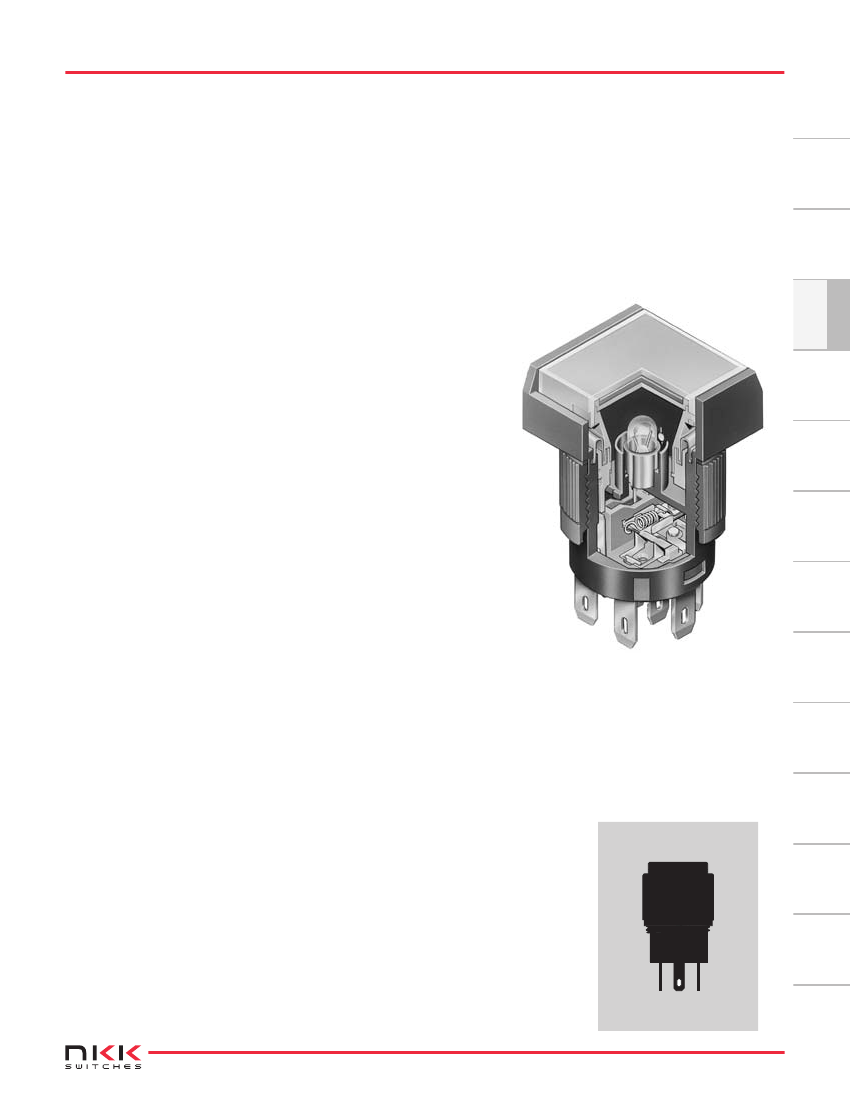

Actual Size
D
www.nkk.com
D101
Supplement
Accessories
Indicators
Touch
Tilt
Tactiles
Slides
Rotaries
Keylocks
Programmable
Illuminated PB
Pushbuttons
Rockers
Series YB
Toggles
Short Body Pushbuttons
TYPICAL SWITCH
Short Body Pushbuttons

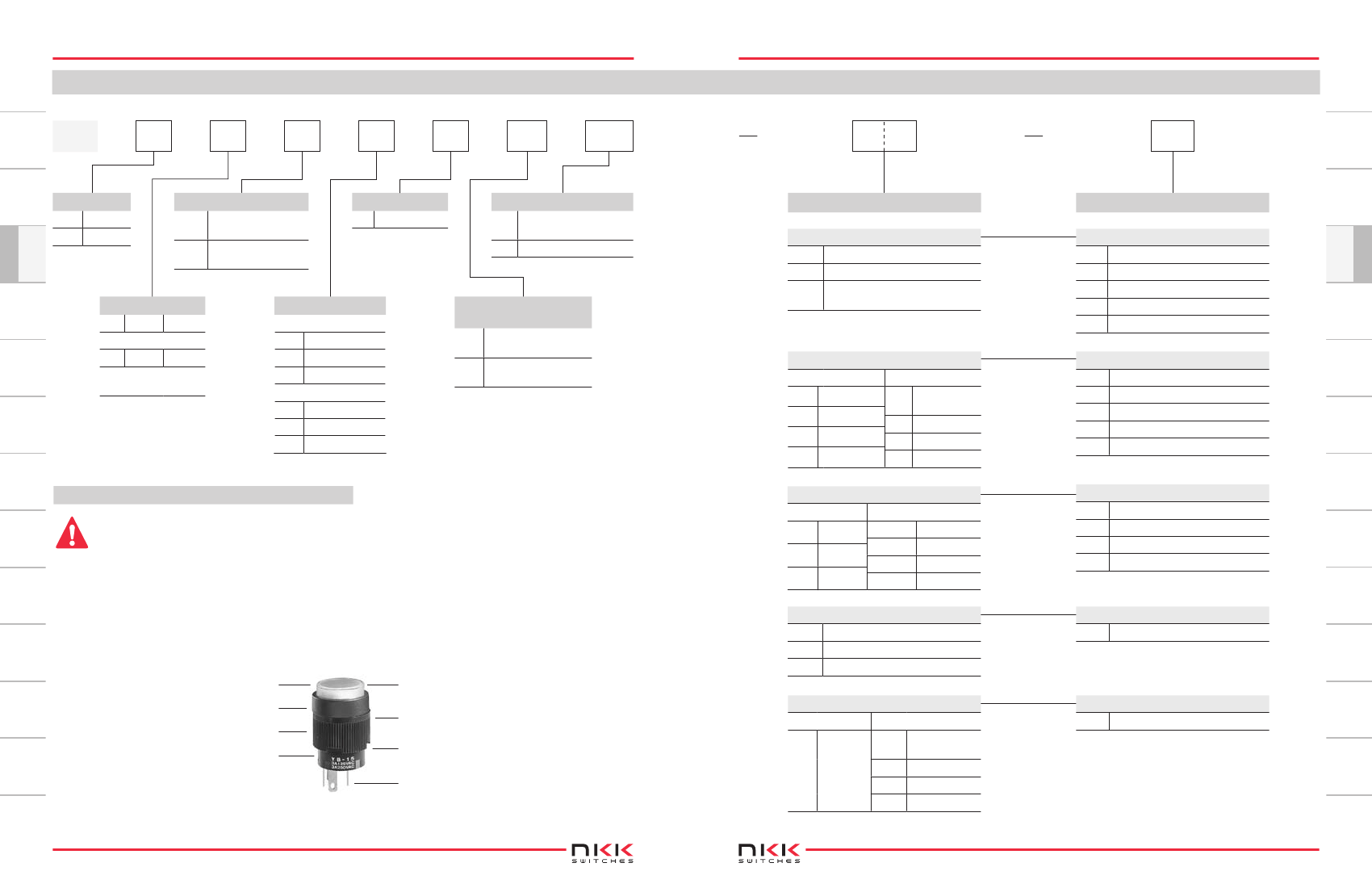

ORDERING EXAMPLE
Series YB
JB
Cap Types & Colors
Solid Cap: Lens/Insert Colors
BB
CB
EB
FB
GB
White/White
Red/White
Yellow/White
Green/White
Blue/White
Toggles
Rockers
Pushbuttons
Poles
1
2
SPDT
DPDT
No
Code
W
Panel Seal
Without Panel Seal
With Panel Seal
(Bushing Mount only)
K
Housing
Black only
01
03
Terminals
Solder Lug/.110”
(2.8mm) Quick Connect
Straight PC
05
12
No
Code
Lamps
Incandescent Lamp
5-volt
12-volt
Nonilluminated
Programmable
Illuminated PB
D
D
Circuits
5
6
ON
ON
(ON)
ON
( ) = Momentary
Alternate Action
with Latchdown
S
C
R
K
M
N
Shapes
Bushing Mounting
Square
Round
Rectangular
Square
Round
Rectangular
G
W
Contact Materials
& Ratings
Silver Rated
3A @ 125V AC
Gold Rated 0.4VA max.
@ 28V AC/DC max.
Keylocks
LED for Spot Illuminated Cap
LED Colors
1C
1D
1F
1CF
Red
Amber
Green
Red/Green
Forward Voltage
02
05
12
24
2-volt
(no resistor)
5-volt
12-volt
24-volt
Spot Illuminated Cap: Lens/Insert Colors
JA
JB
JC
JE
JF
Clear/Black
Clear/White
Clear/Yellow
Clear/Green
Clear/Red
Snap-in Mounting
Rotaries
Slides
IMPORTANT:
Switches are supplied without UL & cULus marking unless specified.
UL & cULus recognized only when ordered with marking on switch.
Specific models, ratings, & ordering instructions are noted on the
General Specifications page.
Bright LED
LED Colors
5C
5D
5F
Red
Amber
Green
05
12
24
Resistor
No Code
No Resistor
5-volt
12-volt
24-volt
JB
JC
JD
JF
LED Cap: Lens/Insert Colors
Clear/White
Clear/Amber
Clear/Green
Clear/Red
Tactiles
Tilt
DESCRIPTION FOR TYPICAL ORDERING EXAMPLE
Touch
Super Bright LED
6B
6F
6G
White
Green
Blue
JB
LED Cap: Lens/Insert Colors
Clear/White
Touch
YB15CKW01-6F-JB
Indicators
Round with Bushing Mounting
Black Housing
SPDT ON-(ON) Circuit
Bicolor LED for Full Face Illuminated
LED Colors
Forward Voltage
02
2CF
Red/Green
05
12
24
2-volt
(no resistor)
5-volt
12-volt
24-volt
JB
LED Cap: Lens/Insert Colors
Clear/White
Without Panel Seal
Silver Contacts with
3 Amp Rating
Solder Lug/.110” (2.8mm)
Quick Connect Terminals
Accessories
Supplement
D102
www.nkk.com
www.nkk.com
D103
Supplement
Accessories
Indicators
Green, Super Bright LED
Led Cap with Clear Lens
and White Insert
Tilt
Tactiles
Slides
Rotaries
Keylocks
Programmable
Illuminated PB
Pushbuttons
Rockers
YB
1
5
C
K
W
01
6 F
Series YB
Toggles
Short Body Pushbuttons

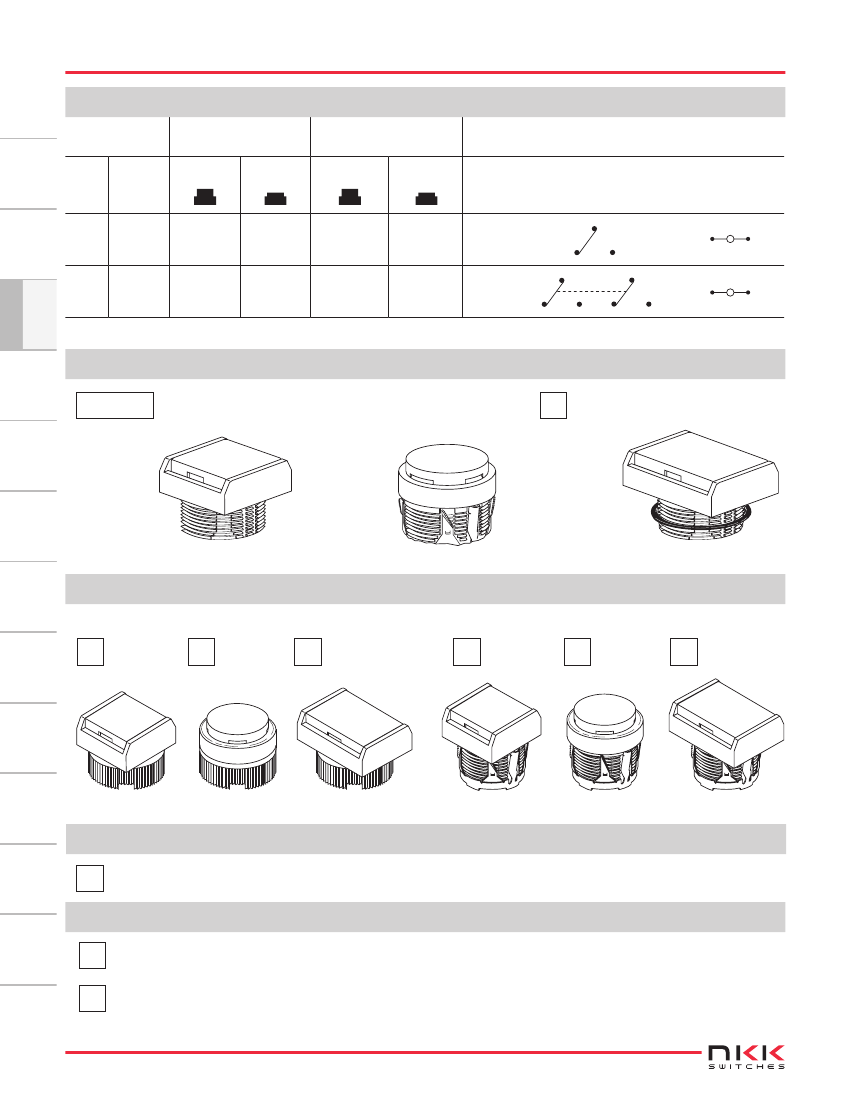

POLES & CIRCUITS
Plunger Position
( ) = Momentary
Pole
Model
Normal
Down
Connected Terminals
Normal
Down
Throw & Switch/Lamp Schematics
Notes: Switch is marked with NC, NO, COM, L+, L–.
Lamp circuit is isolated and requires
external power source.
1 (COM)
Pushbuttons
Rockers
SP
YB15
*YB16
YB25
*YB26
ON
ON
ON
ON
(ON)
ON
(ON)
ON
1-3
1-2
SPDT
L (+)
3
1 (COM)
2
4
L (+)
3
2
6
5
(-) L
Programmable
Illuminated PB
DP
1-3 4-6
1-2 4-5
DPDT
(-) L
D
* When in latchdown position for the alternate circuit, cap position is .020” (0.5mm) above the built-in bezel.
PANEL SEAL
No Code
Bushing
Mounting
Without Panel Seal
Snap-in
Mounting
W
With Panel Seal
Keylocks
Bushing
Mounting
only
Rotaries
Supplied with
mounting nut.
Supplied with
mounting nut
and o-ring AT089.
Slides
SHAPES & MOUNTING TYPES
Bushing Mounting
Snap-in Mounting
Tactiles
S
Square
C
Round
R
Rectangular
K
Square
M
Round
N
Rectangular
Touch
Tilt
Bezel-barrier is an integral part of the switch body.
HOUSING
Indicators
K
Black
Housing available in black only. The 1-piece body and bezel-barrier have a matte finish.
Accessories
CONTACT MATERIALS & RATINGS
W
G
Silver Contacts
Gold Contacts
Power Level
Logic Level
3A @ 125/250V AC
0.4VA max. @ 28V AC/DC max.
Supplement
Complete explanation of operating range in Supplement section.
D104
www.nkk.com
Short Body Pushbuttons
TERMINALS
01
Solder Lug/
.110” (2.8mm) Quick Connect
Epoxy Seal
(7.3)
.288
Series YB
Toggles
(3.7) Typ
.146
2
5
6
3
2
4
1
03
Straight PC
Epoxy Seal
(0.6) R
.024
(4.4)
.173
(2.8)
.110
3
(3.7) Typ
.146
(1.2)
.047
Thk = (0.5)
.020
Single Pole
(3.0)
.118
1
Double Pole
(5.55)
C .219
L
(1.6) Dia Typ
.063
(3.0) Typ
.118
C
L
(1.6) Dia Typ
.063
(5.55) Typ
.219
D

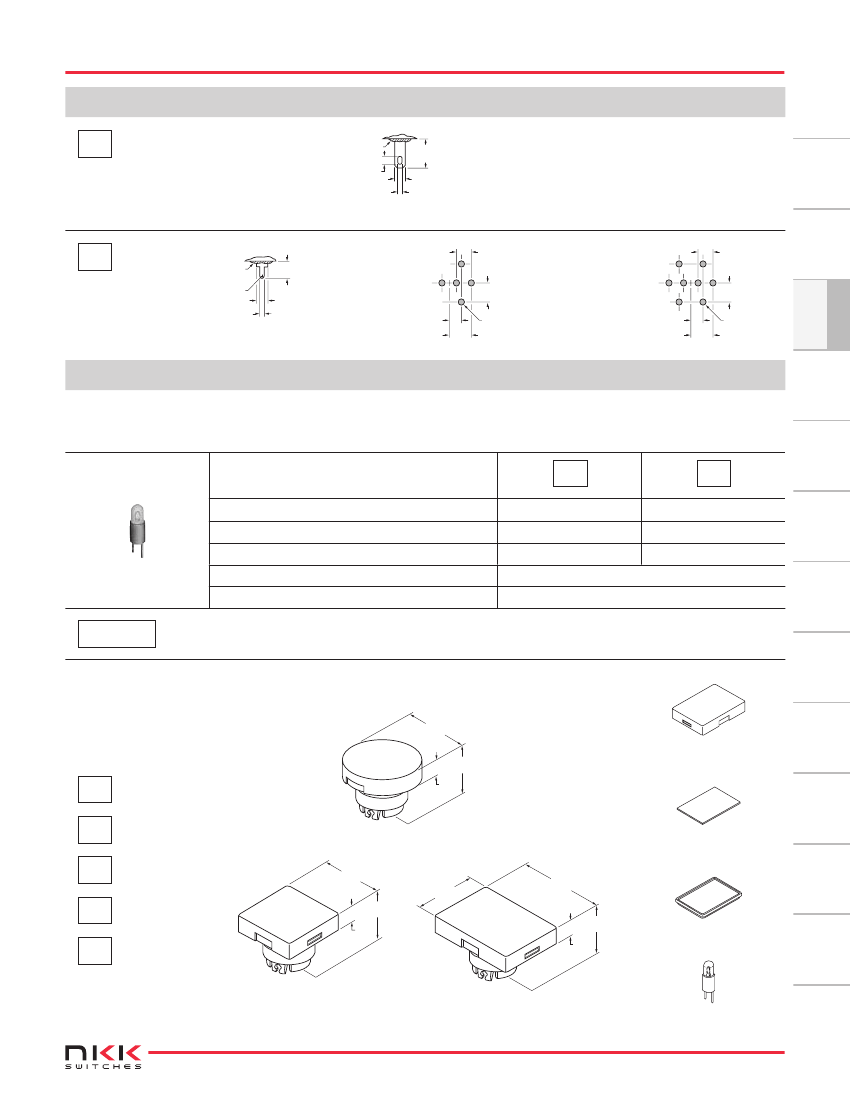

INCANDESCENT LAMP & SOLID CAP
Electrical specifications are determined at a basic temperature of 25°C. Lamp circuit is independent of switch operation.
For dimension drawing of lamp see the Accessories & Hardware section.
AT611
Voltage
Current
MSCP
T-1 Bi-pin
05
V
I
Hours
5V AC
115mA
.150
7,000 average
–25°C ~ +50°C
12
12V AC
60mA
.150
Ambient Temperature Range
No Code
No Lamp
Solid Cap for Incandescent Lamp & Nonilluminated
Tactiles
Lens/Insert
Colors Available:
CB
EB
FB
GB
Red/White
Yellow/White
Green/White
Blue/White
AT3001
Square
(15.0) Sq
.591
(12.2)
.480
(4.0)
.157
AT3003
Rectangular
(21.0)
.827
Translucent White Insert
Indicators
(15.0)
.591
Translucent White Seal/Filter
Lens & Insert: Polycarbonate
Seal/Filter: Thermoplastic Elastomer
Incandescent Lamp AT611
www.nkk.com
D105
Supplement
Materials:
Accessories
(12.2)
.480
(4.0)
.157
Touch
BB
White/White
(12.2)
.480
(4.0)
.157
Translucent Colored Lens
Tilt
(15.0) Dia
.591
AT3002
Round
Slides
Endurance
Rotaries
Keylocks
Programmable
Illuminated PB
(4.85) Typ
.191
(4.85) Typ
.191
Pushbuttons
(2.0)
(2.8)
.079
.110
(1.2)
.047
Thk = (0.5)
.020
Rockers
