OM17040: BGU8061 Evaluation Board

Overview

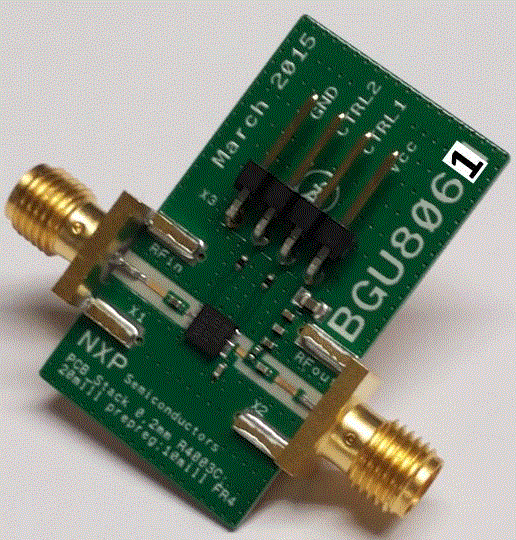

The BGU8061 evaluation board simplifies RF evaluation of the BGU8061. The evaluation board supports testing the device's RF performance without the need for additional support circuitry. The BGU8061 evaluation board is assembled on a 35 mm x 20 mm, 1 mm thick, 3-layer PCB and RF performance tested using 0.2 mm (8 mill) R4003C. This board comes complete with BGU8061 installed, including external components. The board is equipped with two SMA connectors for connecting the input and output of RF test equipment.

MoreCollapse

Design Files

Printed circuit board and circuit diagram: OM17040 Gerber file
