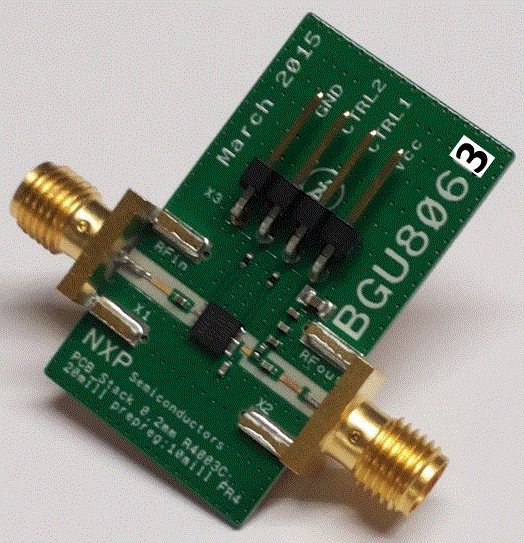

The BGU8063 evaluation board simplifies RF evaluation of the BGU8063. The evaluation board supports testing the device's RF performance without the need for additional support circuitry. The BGU8063 evaluation board is assembled on a 35 x 20 mm, 1 mm thick, 3-layer PCB and RF performance tested using 0.2 mm (8 mill) R4003C. This board comes complete with the BGU8063 installed, including external components. The board is equipped with two SMA connectors for connecting the input and output of RF test equipment.
