Smart music drink coaster

The beverage coaster reference design lights up, plays music and indicates beverage drinkability!

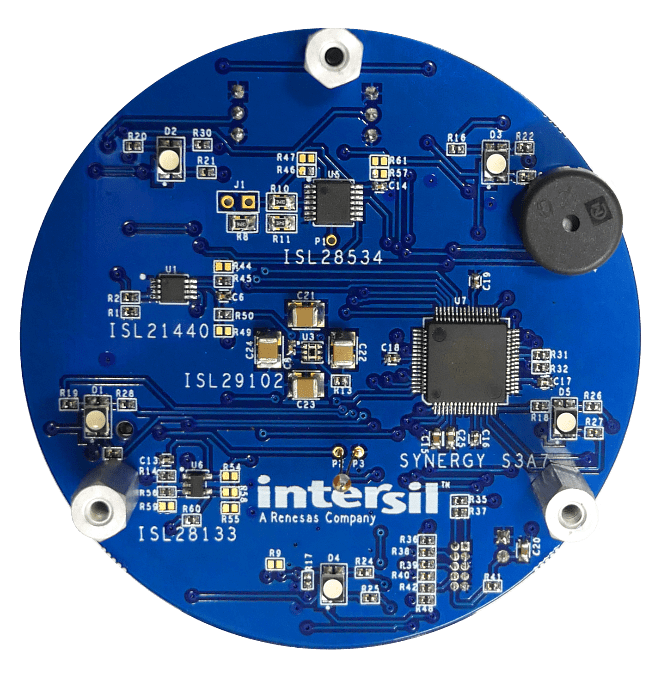

The coaster features a Renesas Synergy™ Platform S3-Series MCU, and multiple power/analog components from the Renesas product line. There are also five RGB LEDs and an ambient light sensor on the top.

As a beverage approaches the coaster center, the LEDs blink with increasing frequency until the drink is set down on top. A TE Connectivity thermistor indicates if your beverage is too warm (flashes red) or just right (flashes blue) while “The Chicken Dance” plays in the background. Simply press the switch on the back of the coaster to turn the board on or off.

Main features

• Detects beverage proximity; LEDs flash

• Detects beverage placement; LEDs solid and song plays

• Indicates beverage drinkability

• Utilizes low power consumption

• Low continuous active current with on/off switch

• Powered with two AAA batteries

• Quickly designed utilizing Synergy SSP’s Application Programming Interface (API)

The following Renesas and partner products are featured in this reference design:

• ISL21440 - Programmable temperature slope voltage reference

• ISL28133 - Single micropower, chopper stabilized, RRIO operational amplifier

• ISL28534 - 5V, rail-to-rail I/O, zero-drift, single-ended output programmable gain instrumentation amplifier

• ISL29102 - Low power ambient light-to-voltage nonlinear converter

• ISL9111 - Low input voltage, high efficiency synchronous boost converter

• Synergy S3A7 - Renesas microcontroller

• GA10K3A1B - TE Connectivity thermistor

application

This reference design is intended to be a fun way to serve beverages. The PCB board is self-contained inside a plastic casing to protect it from accidental spills and overflowing foam.
