FPGA Power Solutions

Complete power solution for FPGAs

Overview

Increased data processing and storage requirements are driving innovation in computing applications. Renesas Electronics' comprehensive family of digital power management, voltage regulators, sequencers and monitors, and precision voltage references provide best-in-class solutions. Our customized reference design examples based on different usage modes help you no longer need to make various guesses when designing power management, including:

Solutions for latest generation and legacy FPGAs.
Give design suggestions based on power consumption estimation results.
Classification of low, medium, and high power consumption based on logic utilization and frequency.
Optimize solution cost using discrete components.
Simplify and miniaturize designs using analog and digital power modules.
The power system can be detected and controlled through digital controllers.
Supports 24-60V backplane voltage, and can support 12V and 5V intermediate backplane bus voltages.

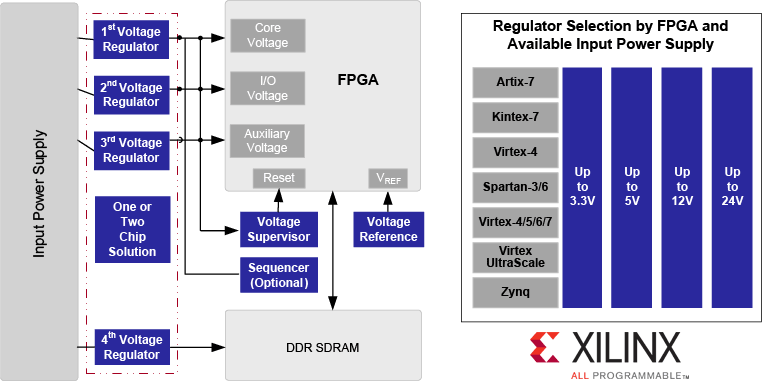

Blockdiagram

Documentation

How to Configure the Tracking and Power Sequencing of FPGAs
