Smart power manager

Overview

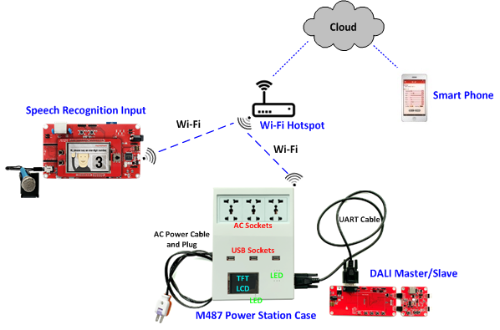

This solution uses an LCD touch screen with a graphical human-machine interface, and can input commands through wireless WiFi voice recognition to control the switch of the power outlet, and can individually monitor real-time current and power consumption. The TFT LCD module is a resistive touch screen with a display size of 240 x 320 pixels (QVGA). The NuMicro M487 microcontroller series has an EBI (External Bus Interface) interface and supports i80 mode. The M487 microcontroller itself also has 16-channel high-precision 12-bit ADC can be used to analyze the finger touch position on the screen. Nuvoton currently also provides free emWin development software libraries and tools for the NuMicro M480 microcontroller series, and provides sample programs for customers' reference, allowing customers to quickly introduce emWin-based human-machine interfaces (HMI) and shorten product R&D. time course.
