STM32 Nucleo stepper motor driver expansion board based on L6474

X-NUCLEUS-IHM01A1

Overview

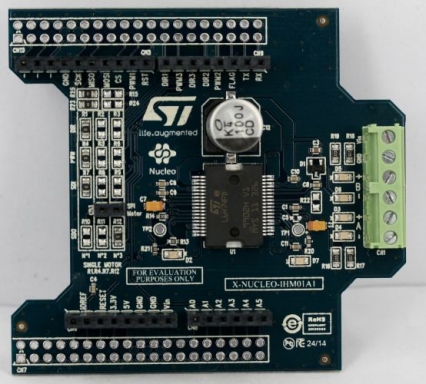

The X-NUCLEO-IHM01A1 is a stepper motor driver expansion board based on the L6474.

It provides an affordable and easy-to-use solution for driving a stepper motor in your STM32 Nucleo project.
The advanced current control of the L6474 and a complete set of protection features offer high levels of both performance and robustness.
The X-NUCLEO-IHM01A1 is compatible with the Arduino UNO R3 connector, and supports the addition of other boards which can be stacked to drive up to three stepper motors with a single STM32 Nucleo board.

Main features

Voltage range from 8 V to 45 V
Phase current up to 3 A_r.m.s.
Power OK and fault LEDs
Advanced current control
Fully protected power stage
Up to 1/16 microstepping resolution
Compatible with Arduino UNO R3 connector
Compatible with STM32 Nucleo boards
Suitable for multi-motor solutions
RoHS compliant
