Evaluation board based on MP23DB01HP digital MEMS microphone

STEVAL-MIC006V1

Overview

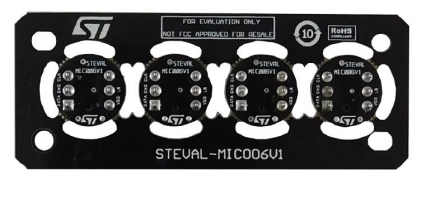

The STEVAL-MIC006V1 is a daughterboard containing 4 MP23DB01HP digital MEMS microphones.

The STEVAL-MIC006V1 can be used with X-NUCLEO-CCA02M2.
The coupon concept allows easy performance testing of ST MEMS microphones. It is possible to detach the single PCBs hosting each microphone.

Main features

4 x MP23DB01HP bottom port digital MEMS microphones
Multi performance mode (Low Power, High Performance)
PDM single-bit output
Vsupply from 1.6 to 3.6 V
135 dBSPL Acoustic Overload Point
65 dB of SNR in Performance mode
Sensitivity -41 dBFs ±1 dB (in Performance mode) and -24 dBFs ±1 dB (in Low Power mode)
RoHS and WEEE compliant
