Bluetooth® SMART board based on BlueNRG low energy network processor

STEVAL-IDB002V1

Overview

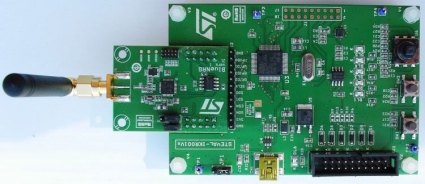

The STEVAL-IDB002V1 is a product evaluation board based on the BlueNRG device. The BlueNRG is a Bluetooth low energy 4.0 compliant low power network coprocessor. The STEVAL-IDB002V1 is composed of an RF daughterboard and a microcontroller motherboard. The RF daughterboard features the BlueNRG device, an SMA connector for an antenna or measuring instruments and an SPI connector for external microcontroller.The motherboard is based on the STM32L, acting as external microcontroller driving the BlueNRG device. A JTAG connector allows development of firmware on the microcontroller.

Main features

BlueNRG low power Bluetooth low energy network coprocessor
STM32L external microcontroller
Associated BlueNRG development kit including documentation, firmware for STM32L and GUI
JTAG debug connector
Bluetooth low energy 4.0 master and slave compliant
Very low power consumption:7.3 mA RX and 8.3 mA TX at +0 dBm

Maximum transmission power: +8 dBm
Excellent receiver sensitivity (-88 dBm)
SPI interface for external microcontroller
iOS App available
Android App available
RoHS compliant
