MEMS microphone evaluation board based on STA321MPL and MP34DB01 (microphone processor + digital uPhone MEMS)

The digital interface of the device allows interfacing the MIC output to the most widely used audio receivers and digital amplifiers or simple evaluation of the MIC using generic audio measurement equipment. The filtered PWM signals allow the connection of a headset to listen to the audio received through the microphones.
The fully digital path ensures a high level of processing with sound preconditioning, filtering and voice enhancement.
The main purpose of the STEVAL-MKI126V2 is to convert the PDM signals provided by the microphones into the more common I²S and PWM signals. The I²S signal is routed both on general and interface connectors, while the suitably-filtered PWM signals provide an analog interface.

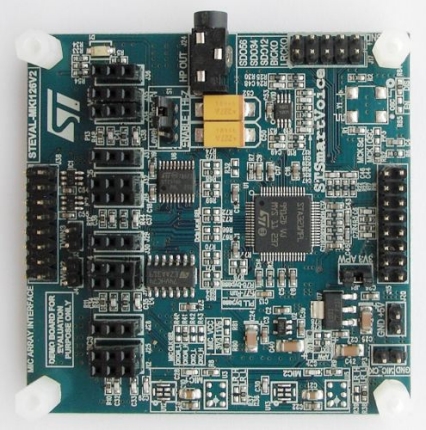

Mounted on the STEVAL-MKI126V2 are two MP34DB01 microphones and an STA321MPL processor.
