38 V, 0.5 A synchronous step-down switching regulator evaluation board based on A6985F5V

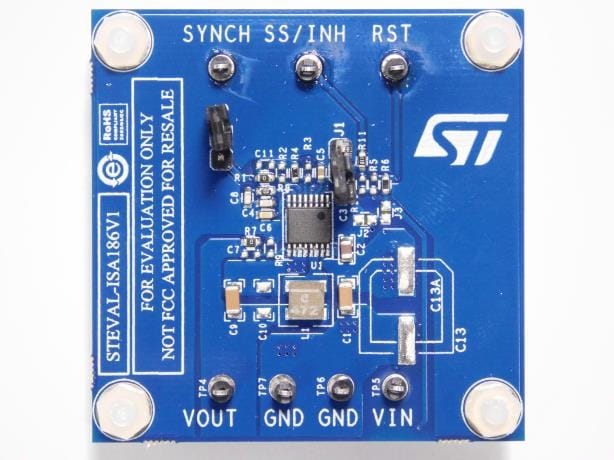

The STEVAL-ISA186V1 is a product evaluation board based on the A6985F5V ST synchronous step-down switching regulator, which can deliver up to 0.5 A and, with its 100% duty cycle ability to withstand cold crank events and wide input operating voltage range, renders the A6985F5V the ideal choice for battery-powered automotive systems. Synchronous rectification helps achieve higher efficiency at full load as well as application compactness, while high-frequency switching (programmable up to 2 MHz) helps to reduce the cost and size of power passive components while remaining outside the AM band. The device can operate in low consumption mode (LCM) with a quiescent current of 45 μA, hence ensuring the high efficiency under light load condition required in typical car body applications that are active when the car is parked. A low noise mode (LNM) can be selected to meet the requirements of infotainment applications with forced PWM mode under all load conditions. The default board configuration is LCM active, 2 MHz switching frequency, high ISKIP current and the switchover feature enabled, but all of these settings can be easily changed so the user can evaluate different application scenarios.

Main features
