PF8101/PF8201 Customer Evaluation Board

(KITPF8101FRDMEVM / KITPF8201FRDMEVM)

Overview

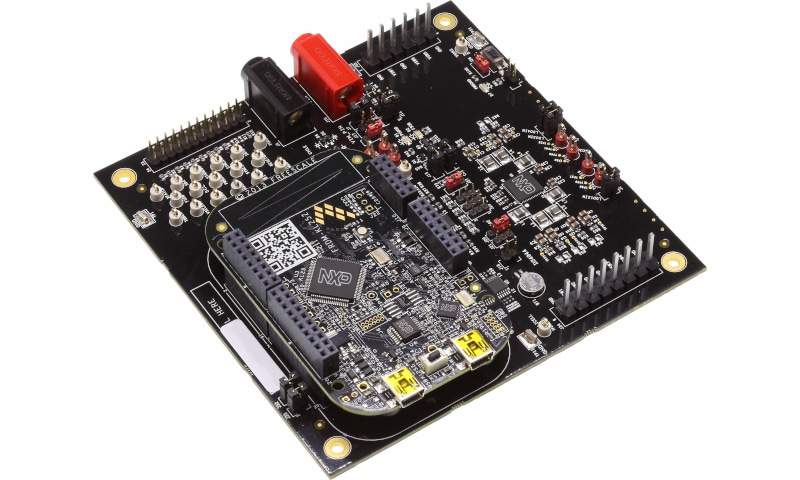

KITPF8101FRDMEVM / KITPF8201FRDMEVM are customer evaluation boards using the PF8101/PF8201 power management IC. The kit integrates all the hardware required to fully evaluate the featured power management integrated circuit. It integrates a communication bridge based on the FRDM-KL25Z free board, which can be connected with the FlexGUI software interface to fully configure and control the PF8101/PF8201 PMIC.

MoreCollapse

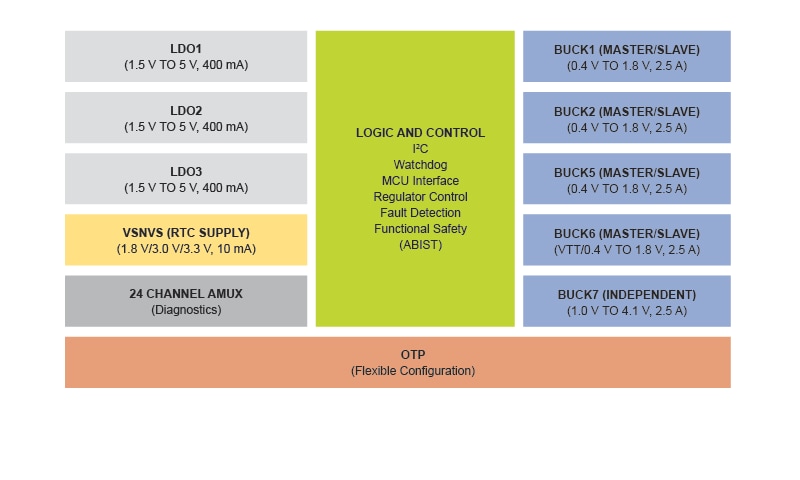

Blockdiagram

Design Files

Documentation
