L9001 SPS Evaluation Board - Simple Power Supply - Multiple Regulators

L9001 SPS (Simple Power Supply) device is a Multiple output power regulator for automotive applications with one buck regulator, one regulator configurable as buck or linear and one more linear regulator. Its output voltages are configurable via discrete pins. On top of the regulators, this device integrates a watchdog functional block, and a diagnosis functional block (under/over voltage, output current and temperature).
Device is capable of low power operation mode with main regulators still active and reduced power consumption from battery.

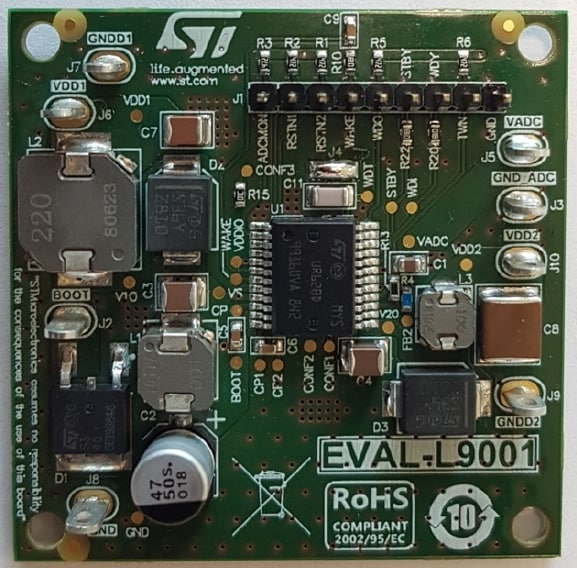

EVAL-L9001 embeds a typical configuration for SPC5x microcontroller family supplying:
Buck 5 V output for peripheral supply
Buck 1.2 V output for core supply
LDO 5 V output for ADC reference supply
The expansion connector allows to monitor the different diagnostic reset signal, to enable the regulator and, if activated, to service the windows watchdog.
