STM32 Nucleo long-distance ranging sensor expansion board based on VL53L1X

X-NUCLEO-53L1A1

Overview

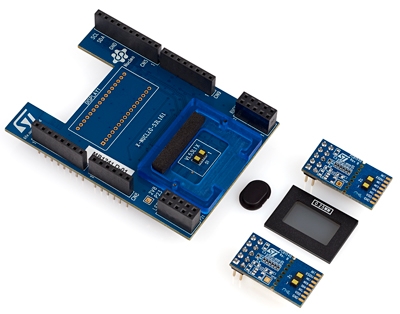

The X-NUCLEO-53L1A1 is an expansion board for the NUCLEO-F401RE and NUCLEO-L476RG development boards. It provides a complete evaluation kit allowing anyone to learn, evaluate, and develop their applications using the VL53L1X ToF, long-distance ranging sensor technology.

The X-NUCLEO-53L1A1 expansion board is delivered with a cover glass holder in which three different spacers of 0.25, 0.5 and 1 mm height can be fitted below the cover glass to simulate various air gaps.
Two VL53L1X breakout boards can be connected using two 10-pin connectors.
The X-NUCLEO-53L1A1 expansion board is compatible with the STM32 nucleo board family, and with the Arduino UNO R3 connector layout.
Several ST expansion boards can be superposed through the Arduino connectors which allows, for example, the development of VL53L1X applications with Bluetooth or Wi-Fi interfaces.

Main features

VL53L1X Time-of-Flight (ToF), long-distance ranging sensor module
Accurate absolute ranging distance, independent of the reflectance of the target
0.25, 0.5 and 1 mm spacers to simulate air gaps
Two different cover windows
Two VL53L1X breakout boards
Compatible with STM32 Nucleo board family
Equipped with Arduino^TM UNO R3 connector
RoHS compliant
Full system SW is supplied, including code examples and graphical user interface. All this can be downloaded from the folder “TOOLS AND SOFTWARE, section Ecosystems” on www.st.com/VL53L1X
