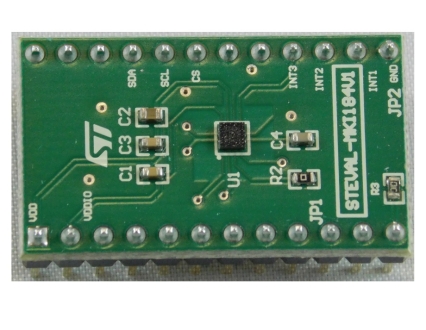

ISM303DAC adapter board, standard DIL24 socket

STEVAL-MKI184V1

Overview

The STEVAL-MKI184V1 adapter board is designed to facilitate the evaluation of MEMS devices in the ISM303DAC product family. The board offers an effective solution for fast system prototyping and device evaluation directly within the user’s application.

The STEVAL-MKI184V1 can be plugged into a standard DIL 24 socket. The adapter provides the complete ISM303DAC pinout and comes ready-to-use with the required decoupling capacitors on the VDD power supply line.
This adapter is supported by the STSW-MKI109V3 motherboard, which includes a high performance 32-bit microcontroller functioning as a bridge between the sensor and a PC, on which it is possible to use the downloadable graphical user interface (Unico GUI), or dedicated software routines for customized applications.

Main features

Complete ISM303DAC pinout for a standard DIL24 socket
Fully compatible with the STEVAL-MKI109V3 motherboard
RoHS compliant
