Discovery Kit for STM8S105C6 MCU

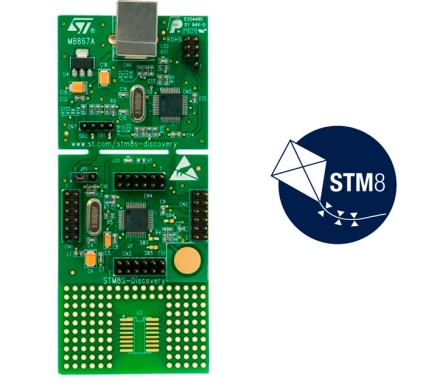

STM8S-DISCOVERY

Overview

The STM8S-DISCOVERY helps you to discover the STM8S features and to develop and share your own application.

Even though the STM8S-DISCOVERY is built around an STM8S105C6T6, it allows evaluation of the main features of all the STM8S Access line MCUs. It includes an embedded debugger ST-Link, and a touch sensing button.
The STM8S-DISCOVERY simply plugs into a PC through a standard USB cable. Numerous applications are available from the STM8S-DISCOVERY web page.

Main features

STM8S105C6T6 microcontroller, 32 KB Flash, 2 KB RAM, 1 KB EEPROM
Powered by USB cable between PC and STM8S-DISCOVERY
Selectable power of 5 V or 3.3 V
Touch sensing button
User LED
Extension header for all I/Os
Wrapping area for users own application
Embedded ST-Link
USB interface for programming and debugging
SWIM debug support

Design Files
