60 W / 896-941 MHz evaluation board based on 2x PD85050S

STEVAL-TDR033V1

Overview

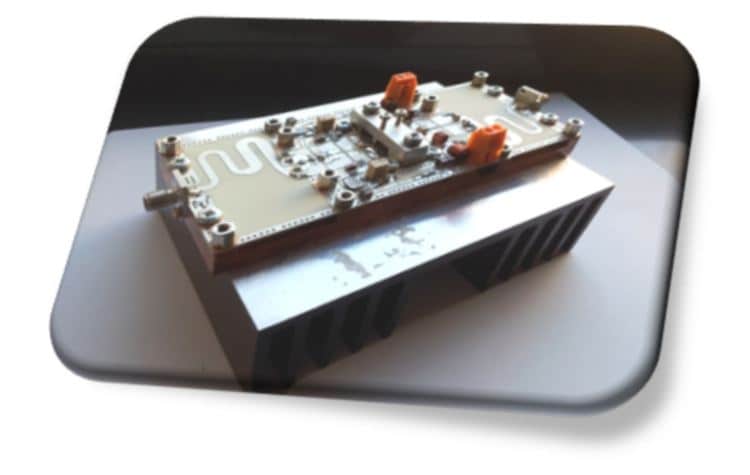

The STEVAL-TDR033V1 demonstration board is designed for mobile radio applications. It uses two PD85050S LDMOS transistors.

The demonstration board is a push-pull class AB power amplifier which uses a lumped L-C input/output network type on balanced microstrip lines.
A proper planar balun embedded on the PCB (patent pending) allows the management of balanced versus unbalanced input/output signals.
For additional information regarding the PD85050S please refer to the device datasheet.

Main features

Excellent thermal stability
Frequency: 896-941 MHz
Supply voltage: 12.5 V
Output power: 60 W
Gain: 10 dB min
Efficiency: 50% min
Stability load VSWR 3:1 minimum
BeO free amplifier
RoHS compliant
