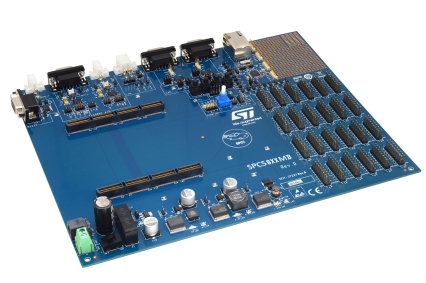

Motherboard for SPC58 and SPC57 series microcontrollers. Includes: universal power supply, documentation CD.

SPC58XXMB

Overview

The Premium Evaluation Boards System supports the 32-bit SPC57x, SPC58x STMicroelectronics' automotive microcontrollers.

The complete system consists of a SPC57XXMB motherboard and a SPC57xxADPT, SPC58xxADPT daughter card which plugs into the motherboard.
A number of compatible daughter cards are available for the motherboard for evaluating the different devices in the SPC57x, SPC58x family of microcontrollers, package sizes and part numbers. All daughter cards are similar in design and concept.
The evaluation system (motherboard and daughter card) allows full access to the CPU, all of the CPU's I/O signals, and the motherboard peripherals (such as CAN, SCI, LIN, FlexRAY and Ethernet).

Main features

Modular evaluation system for SPC57x, SPC58x
Single 12V external power supply
Four on-board regulators
- 5.0 V, 3.3 V and 1.25 V switching regulators
- 5V linear regulator for the ADC supplies and references
Master power switch and regulator status LEDs
Two 240-way high-density expansion connectors for MCU daughter cards
All MCU signals readily accessible at a port-ordered group of 0.1” pitch headers
RS232/SCI physical interface and standard DB9 female connector

Two FlexRAY channels interface with a DB9 connector (for both transceivers) and two alternative connectors
LINFlexD interface with two different style connectors
Two high speed CAN channels and two female standard DB9 connectors
Ethernet interface with a standard RJ45 Ethernet connector
One potentiometer for analog voltage input
Four user switches and 4 user LEDs, freely connectable
