LIS344ALH adapter board, standard DIL24 socket

STEVAL-MKI015V1

Overview

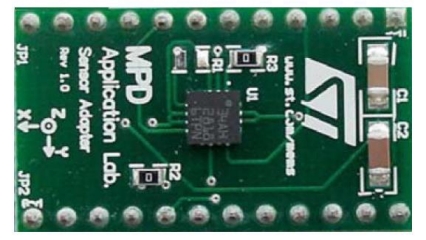

The STEVAL-MKI015V1 is an adapter board designed to facilitate the evaluation of the LIS344ALH three-axis analog output linear accelerometer.

The board offers an effective solution for fast system prototyping and device evaluation directly within the user's own application.
The STEVAL-MKI015V1 can be plugged into a standard DIL24 socket. The adapter provides the complete LIS344ALH pinout and comes ready-to-use with the required decoupling capacitors on the VDD power supply line.
This adapter is supported by the STEVAL-MKI109V2 motherboard with high performance 32-bit microcontroller functioning as a bridge between the sensor and a PC, on which it is possible to use the downloadable graphical user interface (Unico GUI), or dedicated software routines for customized applications.

Main features

Complete LIS344ALH pinout for a standard DIL24 socket
Fully compatible with STEVAL-MKI109V2 motherboards
RoHS compliant
