Motion MEMS and Microphone MEMS expansion board for STM32 Nucleo

X-NUCLEO-IKS02A1

Overview

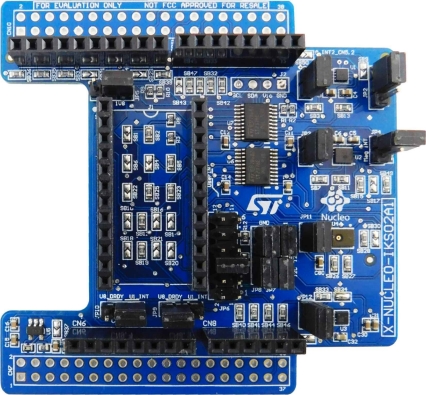

The X-NUCLEO-IKS02A1 industrial motion MEMS sensor expansion board is compatible with the Arduino UNO R3 connector layout.

It embeds the ISM330DHCX 3-axis accelerometer and 3-axis gyroscope, the IIS2MDC 3-axis magnetometer, the IIS2DLPC 3-axis accelerometer, the IMP34DT05 digital microphone.
The X-NUCLEO-IKS02A1 interfaces with the STM32 microcontroller via I²C pin, with the possibility of changing the default I²C port.

Main features

ISM330DHCX MEMS 3D accelerometer (±2/±4/±8/±16 g) plus 3D gyroscope (±125/±250/±500/±1000/±2000 dps)
IIS2MDC MEMS 3D magnetometer (±50 gauss)
IIS2DLPC MEMS 3D accelerometer low power (±2/±4/±8/±16 g)
IMP34DT05 MEMS digital omnidirectional microphone (-26 dBFS, ±3 dB sensitivity)
DIL 24-pin socket available for additional MEMS adapters and other sensors
Free comprehensive development firmware library and samples for all sensors compatible with STM32Cube firmware
Available I²C sensor hub features on ISM330DHCX
Compatible with STM32 Nucleo boards
Equipped with Arduino UNO R3 connector
RoHS and WEEE compliant
