eMotion: ST MEMS adapter motherboard based on STM32F103, compatible with all ST MEMS adapter boards

STEVAL-MKI109V2

Overview

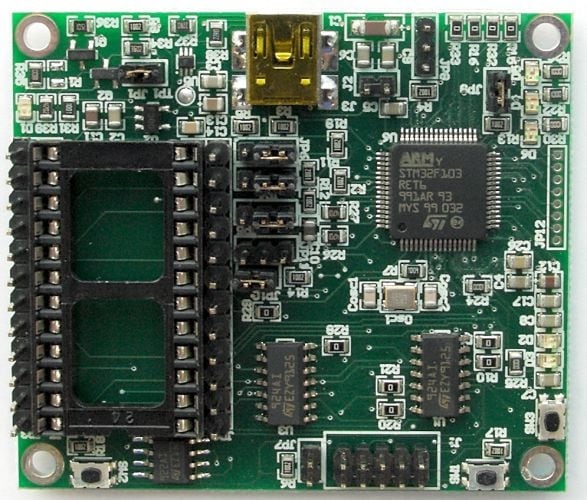

The STEVAL-MKI109V2 is a motherboard designed to provide users with a complete, ready-to-use platform for the evaluation of STMicroelectronics’ MEMS products.

The board features a DIL24 socket to mount all available adapters for both digital and analog output MEMS devices.
The motherboard includes a high-performance 32-bit microcontroller, which functions as a bridge between the sensor and a PC, on which it is possible to use the downloadable graphical user interface (GUI), or dedicated software routines for customized applications.

Main features

Compatible with all available ST MEMS adapter boards
Controlled by the STM32F103RET6 high-performance ARM Cortex^™-M3 microcontroller
Includes a DIL24 socket for easy MEMS adapter connection
3 V on-board linear voltage regulator
DFU compatible for USB microprocessor firmware update
USB 2.0 full-speed compliant
Debugging connector for SWD/JTAG
RoHS compliant
