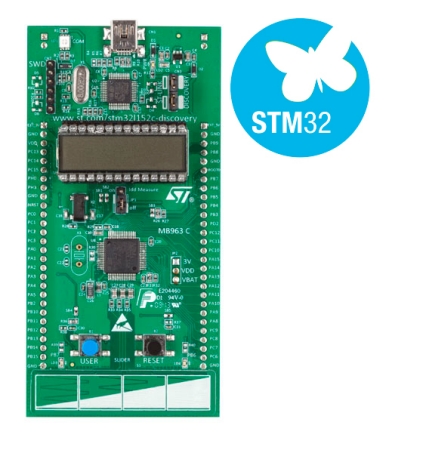

STM32L152RC MCU Discovery Kit

32L152CDISCOVERY

Overview

The STM32L-DISCOVERY and 32L152CDISCOVERY kits help you to discover the STM32L ultra low power features and to develop and share your applications.

They are based on an STM32L152RBT6 and an STM32L152RCT6, respectively; and include an ST-LINK/V2 embedded debugging tool interface, an LCD (24 segments, 4 commons), LEDs, pushbuttons, a linear touch sensor or touchkeys.

Main features

STM32L152RBT6 (128 KB Flash memory, 16 KB RAM, 4 KB EEPROM) or STM32L152RCT6 (256 KB Flash memory, 32 KB RAM, 8 KB EEPROM) microcontroller in an LQFP64 package
On-board ST-LINK/V2 with selection mode switch to use the kit as a standalone ST-LINK/V2 (with SWD connector for programming and debugging)
Board power supply: through USB bus or from an external 3.3 or 5 V supply voltage
External application power supply: 3 V and 5 V
I_DDcurrent measurement
LCD
- DIP28 package
- 24 segments, 4 commons

Four LEDs:
- LD1 (red/green) for USB communication
- LD2 (red) for 3.3 V power-on
- Two user LEDs, LD3 (green) and LD4 (blue)
Two pushbuttons (user and reset)
One linear touch sensor or four touchkeys
Extension header for LQFP64 I/Os for quick connection to prototyping board and easy probing
Comprehensive free software including a variety of examples, part of STSW-STM32072 package
