S2-LP based sub-GHz transceiver development kit

STEVAL-FKI433V1

Overview

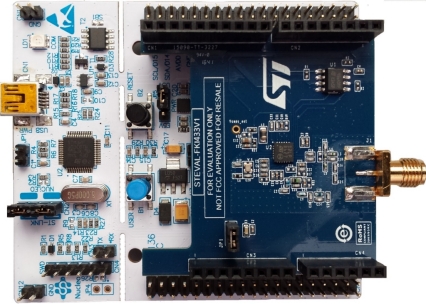

The STEVAL-FKI433V1 evaluation board is based on the S2-LP sub-1 GHz ultra-low power, low data-rate transceiver suitable for ISM bands and Wireless M-Bus.

The motherboard is the NUCLEO-L152RE board with STM32L low power microcontroller to control the S2-LP device and integrated ST-LINK/V2-1 debugger and programmer for firmware updating.

Main features

S2-LP narrow band ultra-low power sub-1 GHz transceiver in a standalone RF Module tuned for 430 - 470 MHz frequency bands
STM32 Nucleo 64 development board with STM32L152RE MCU
Suitable for Wireless M-Bus systems
Associated S2-LP development kit including documentation, firmware for STM32L and GUI
Programmable RF output power up to +16 dBm
Modulation schemes: 2-FSK, 2-GFSK, 4-FSK, 4-GFSK, OOK, and ASK
Air data rate from 0.3 to 500 kbps

Ultra-low power consumption:
- 6.7 mA RX
- 10 mA TX @ +10 dBm
Excellent performance of receiver sensitivity (up to -130 dBm)
Low duty cycle RX / TX operation mode
Automatic acknowledgement, retransmission and timeout protocol engine
SPI interface for microcontroller
USB interface
RoHS compliant
