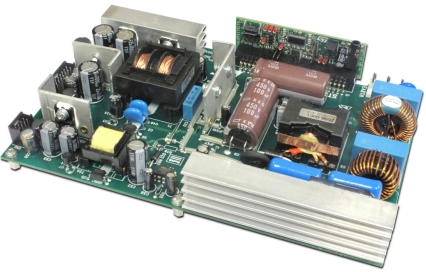

170W switching power supply with digitally controlled PFC and resonant LLC stage for evaluation of STNRG388A

EVLSTNRG-170W

Overview

The EVLSTNRG-170W evaluation board is intended for evaluating the STNRG388A digital controller in off-line power conversion applications such as digital industrial power supplies.

The solution implements a PFC stage followed by a resonant LLC stage supporting up to 170 W. The application supports multiple output rails: a high power 24 V (6 A) channel for the main application, 1 auxiliary 12 V (2 A) for the controller and an always-on 5 V (2 A) standby.
The STNRG388A power conversion dedicated peripherals (SMEDs) offer the flexibility to drive the PFC in transition mode (DCM-CCM boundary) while the resonant LLC is controlled with timeshift control (TSC). In parallel to managing the two conversion stages, STNRG388A guarantees all the protections required by the application as well as implementing the advanced Anti Capacitive protection.
Thanks to the digital core of STNRG388A, it is also possible to monitor, control and debug the EVLSTNRG-170W board via a convenient HyperTerminal control.

Main features

Digital controller: STNRG388A
Enhanced constant ON Time PFC
Timeshift controlled LLC
Max. power: 170 W
Efficiency: more than 91% at full load
Standby consumption:
Input voltage range: from 90 to 264 Vdc
Multiple output rails: 24 V (6 A), 12 V (2 A), 5 V (2 A)
Modular power and control board
