SPIRIT1 - Low Data Rate Transceiver - 868 MHz - Daughter Board - Integrated Balun

STEVAL-IKR002V4B

Overview

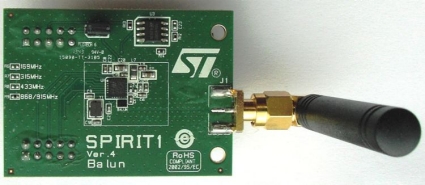

The STEVAL-IKR002V4B evaluation daughterboard is based on the SPIRIT1, a sub-GHz low power, low data rate transceiver suitable for ISM bands and wireless M-BUS. The board is equipped with external balun, matching and filter in a single BALF-SPI-01D3 device which optimizes size, RF performances and number of external RF components (from 16 SMD passive components to just 1).

Main features

SPIRIT1 low power, sub-GHz transceiver in a standalone RF module tuned for the 868/915 MHz bands
External balun + matching + filter in a single component: BALF-SPI-01D3
Suitable for wireless M-BUS systems
Associated SPIRIT1 development kit includes documentation, firmware for STM32L and GUI
Modulation schemes: 2-FSK, GFSK, MSK, GMSK, OOK, and ASK
Air data rate from 1 to 500 kbps
Very low power consumption (9 mA RX and 21 mA TX at +11 dBm)

Excellent performance of receiver sensitivity (up to -120 dBm)
Low duty cycle RX/TX operation mode
Automatic acknowledgment, retransmission, and timeout protocol engine
AES 128-bit encryption co-processor
SPI interface for microcontroller
RoHS compliant
