Power over Ethernet - IEEE 802.3af compliant PD converter with 3.3V, 3A output

STEVAL-TSP006V2

Overview

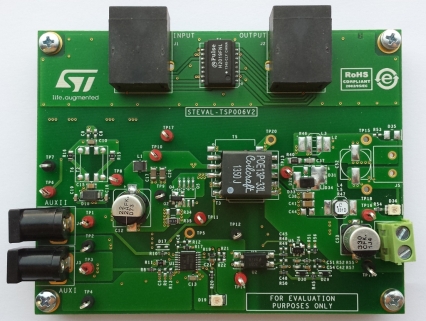

This document focuses on a reference design for a simple, low cost 3.3 V 3 A flyback converter based on the PM8800A device.

The PM8800A is a highly integrated device embedding an IEEE 802.3af compliant “Powered Device” (PD) interface together with a PWM controller.
It can be successfully used in all low power, low cost PoE applications.

Main features

IEEE 802.3af compliant PD interface
Works with power supplied from Ethernet LAN cables or from local auxiliary sources
Line input voltage range: 40 Vdc to 60 Vdc, output voltage: 3.3 Vdc ± 5%
Output current: 3 A
Peak-to-peak output ripple: 30 mV
Efficiency DC-DC full-load: > 83%
Efficiency overall peak: > 80%
Transient response ΔVout_pk-pkto 50% load step: pp
ΔV in load line case:
