L6360 based IO-Link master evaluation board with ST morpho connector for STM32 Nucleo

STEVAL-IOM001V1

Overview

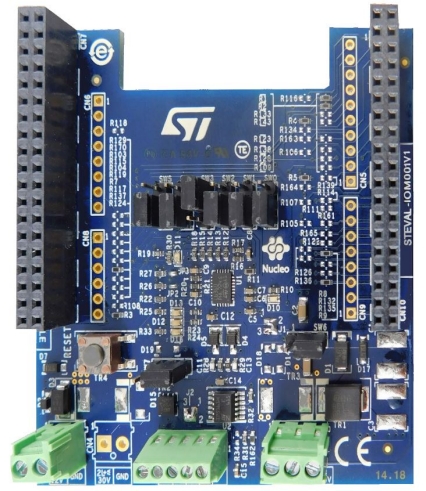

The STEVAL-IOM001V1 evaluation board is based on the L6360 IO-Link master transceiver with physical layer compliant with IO-Link v1.1 specification.

Together with the STSW-IOM001 example code, it provides an affordable and easy-to-use solution for the development of IO-Link applications, letting you easily evaluate the communication features and robustness of the L6360.
You can also perform evaluation of multiple ports industrial IO-Link master modules by connecting up to four STEVAL-IOM001V1 with few solder bridge modifications.
The STEVAL-IOM001V1 interfaces with the STM32 Nucleo microcontroller via UART and GPIO pins and is compatible with the Arduino UNO R3 (optional configuration) and ST morpho (default configuration) connectors.

Main features

IO-Link master PHY based on L6360
Interrupt diagnostics pin
I²C and UART interface
SPI (slave) interface
65 mA selectable (3.3 or 5.0 V) linear regulator
CQ (push-pull) and L+ (high side) switches
IQ additional IEC61131-2 type 1 digital input
L+ and CQ overload and overheating protections with non-dissipative cut-off function
QFN-26L (3.5x5x1 mm) package

Operating voltage range from 18 to 32.5 V
Additional high side switch for L+ heavy loads (IPS161H)
LEDs for status and diagnostics
Ground and V_CC wire break protections
EMC compliance with IEC61000-4-2, IEC61000-4-3, IEC61000-4-5
Equipped with ST morpho connectors
CE certified
RoHS and China RoHS compliant
