Ultra-low power Bluetooth® low-power microphone based on SPBTLE-1S certified module

STEVAL-BLUEMIC-1

Overview

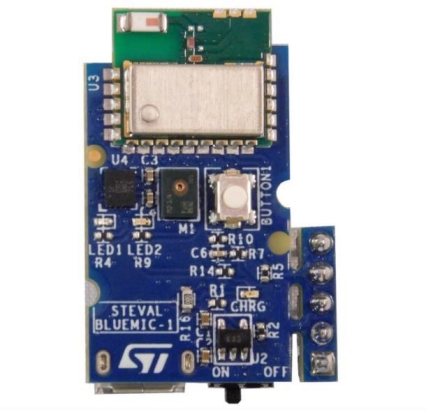

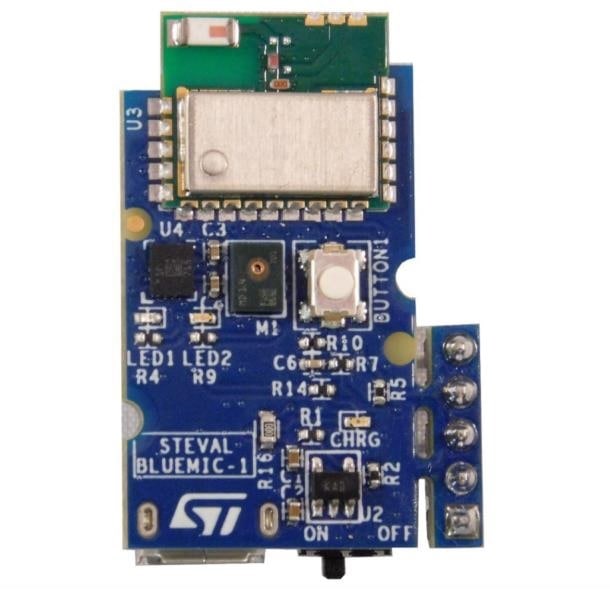

The STEVAL-BLUEMIC-1 evaluation board mounts the SPBTLE-1S Bluetooth^® SMART application processor compliant with BT specification v4.2. It supports multiple simultaneous roles and can act as a Bluetooth Smart master and slave device at the same time.

This BLE wireless battery powered solution also embeds digital MEMS microphone MP34DT05-A (or MP34DT04-C1 in the first generation board) and 3D accelerometer + 3D gyroscope, which render this evaluation board suitable for a wide range of advanced smart applications.
The evaluation board comes with a SW development kit that includes the Bluetooth low energy stack, all the drivers for audio and inertial data acquisition, and button and LED management. A ready-to-use BlueVoice library is included as middleware and a sample application is provided to get you started with voice streaming over BLE to an Android or iOS device, running the ST BlueMS apps.

Main features

Bluetooth^® SMART small form factor board based on the SPBTLE-1S module, Bluetooth v4.2 compliant
On-board SPBTLE-1S module, based on BlueNRG-1, Bluetooth low energy application processor system on chip embedding:
- an ultra-low power ARM^® Cortex^®-M0 32-bit core architecture
- programmable embedded 160 KB Flash
- 24 KB embedded RAM with data retention
On-board MP34DT05-A (or MP34DT04-C1 in the first generation board) digital MEMS microphone
On-board LSM6DSL: MEMS 3D accelerometer (±2 / ±4 / ±8 / ±16 g) plus 3D gyroscope (±125 / ±245 / ±500 / ±1000 / ±2000 dps)
Voltage supply: 1V8 or 3V3
Battery or USB powered
100 mAh Li-Ion battery
On-board STBC08 linear Li-Ion battery charger

SWD connector
Included in the development kit package:
- STEVAL-BLUEMIC-1
- Plastic box for housing STEVAL-BLUEMIC-1
- 100 mAh Li-Ion battery
- SWD programming cable
SW development kit for audio and inertial MEMS data streaming over BLE
ST BlueMS: Android and iOS demo App available in the respective stores
CE certified
RoHS and China RoHS compliant
Contains Transmitter Module FCC (ID: S9NSPBTLE1S) certified
Contains Transmitter Module IC (IC: 8976C-SPBTLE1S) certified
