STM32 based NAND flash drive demonstration board (with TFT MB785/P)

STEVAL-CCM007V2

Overview

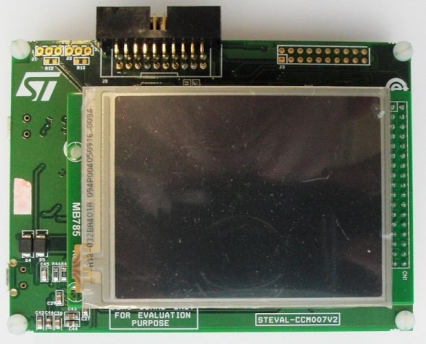

The STEVAL-CCM007V2 is a demonstration board for a NAND Flash driver based on the STM32F205ZET6 microcontroller.

It supports 512 byte and 2 kilobyte page SLC NAND Flash, and dynamic detection of NAND Flash based on “Device ID”.
The firmware automatically detects which NAND Flash is mounted on the PCB, and functions accordingly.

Main features

Designed for 512 byte and 2 kilobyte page size NAND Flash interfacing using the FSMC interface of the STM32
Supports both the FAT (ELM_FS) file system and USB mass storage device mode
Supports garbage collection, wear leveling, bad block management & ECC check
Displays BMP images stored in NAND Flash on MB785 TFT
RoHS compliant
