USB interface tool for STPMxx energy meter IC series

STEVAL-IPE023V1

Overview

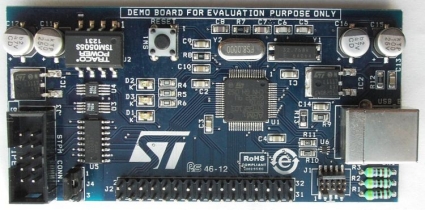

The STEVAL-IPE023V1 is a USB interface tool that can be used to interface boards related to the STPMxx family of energy meter ICs.

The STEVAL-IPE023V1 works as a USB bridge between energy meter boards and a PC running the appropriate GUI application to manage the specific IC.

Main features

Connection to an external metrology board
Microcontroller to implement the bridge function allowing fast data acquisition with local buffering
Galvanic insulation between the metrology board connector and the microcontroller
USB connectivity
RoHS compliant
