IEC 61334-5-1 compliant smart meter system for AMI applications (based on STM32, ST7570 PLM and STPMC1/STPMS1 chipset)

STEVAL-IPP002V1

Overview

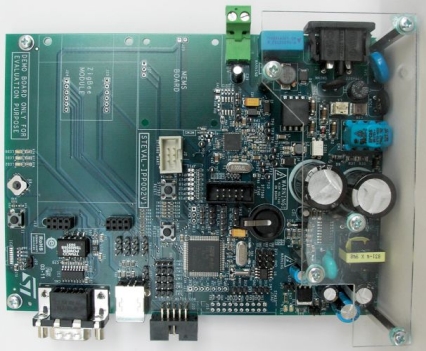

The STEVAL-IPP002V1 demonstration board can be used as a guideline to designing a typical energy meter board for smart metering applications compliant with the IEC 61334-5-1 standard. It was designed to include advanced features as well as to fit the requirements for next generation energy meters. These extra features can be included in the board by modules for easy customizing.

Main features

Energy measurement by an external metrology board
S-FSK Power line communication up to 2.4 kbps
Data communication compliant with DLMS/COSEM specification
LCD display to show energy consumption information
USB and RS232/IrDA connectivity
Optional ZigBee® communication capability
Optional MEMS module support
Expansion capability for smartcard interface
RoHS compliant
