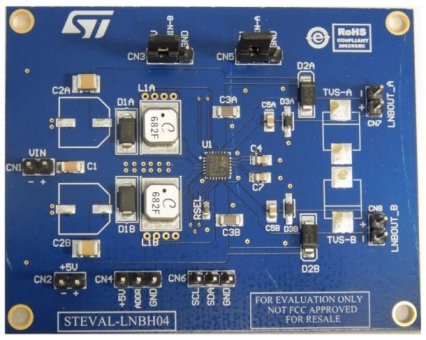

LNB power supply evaluation board based on LNBH26LS

STEVAL-LNBH04

Overview

This evaluation board implements a DC-DC converter based on the LNBH26LS device. It is used to power LNBs inside dish antennas to receive satellite TV signals.

The LNBH26LS is an integrated solution for supplying and interfacing satellite LNB modules in accordance with international standards. This simple and complete solution for dual tuner satellite receivers offers high performance at low cost and low external component count.
The LNBH26LS evaluation board includes an I²C bus interface and the internal 22 kHz tone generator which is factory trimmed and can be controlled by the DSQIN pin (TTL compatible), allowing immediate DiSEqC™ data encoding.
Thanks to a fully integrated step-up DC-DC converter, it functions with a single input voltage supply source ranging from 8 V to 16 V.

Main features

Complete interface between LNB and I²C bus
Built-in DC-DC converter for single 12 V supply operation and high efficiency (typ. 93% @ 0.5 A)
Selectable output current limit by external resistor
Compliant with the output voltage specifications of principal satellite receivers (15 programmable levels)
Accurate built-in 22 kHz tone generator suits widely accepted standards
22 kHz tone waveform integrity guaranteed also at no load condition

Low drop post regulator and high efficiency step-up PWM with integrated power N-MOS allowing low power losses
LPM function (low power mode) to reduce dissipation
Overload and overtemperature internal protection with I²C diagnostic bits
LNB short-circuit dynamic protection
± 4 kV ESD tolerant on output power pins
RoHS compliant
