STPM32-based single-phase energy measurement evaluation board with parallel current-mode sensor

EVALSTPM32

Overview

The STPM32 energy metering evaluation board is a class 0.2, single-phase meter with shunt current sensor for power line systems with V_nom= 140 to 300 V_(RMS), I_nom/ I_max= 5/100 A_(RMS), f_lin= 50/60 Hz ± 10% and T_amb= -40 to +85 °C.

Measured active/reactive power can be output from two programmable LEDs on the board.

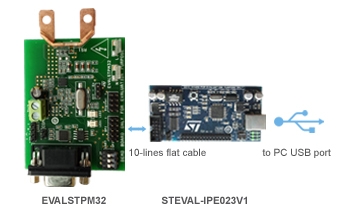

The board can be interfaced with a PC running evaluation software through an isolated RS232 port, or through the STEVAL-IPE023V1 USB isolated interface tool for configuration and data reading.
The board also has SPI/UART pins available to interface a microcontroller for application development.

Main features

0.2% accuracy single-phase meter
V _nom (RMS) = 140 to 300 V, I _nom /I _max(RMS) = 5/100 A, f _lin = 50/60 Hz ± 10%
Connector for USB isolated hardware programmer tool STEVAL-IPE023V1 and PC GUI
RS232 and UART isolated connectors to PC GUI
SPI/UART switch for device peripheral selection
2 programmable LEDs on board
Digital expansion to external system-on-chip or MCU
3.3 V power supply: external or through STEVAL-IPE023V1 isolated USB board
IEC61000 standard compliant
RoHS compliant
