STWBC-EP based Qi MP-A15 15W Wireless Battery Charger TX Evaluation Kit

EVALSTWBC-EP

Overview

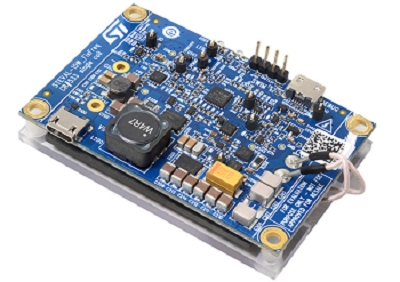

The EVALSTWBC-EP is a wireless battery charger TX evaluation kit including EVALSTWBC-EP demo-board and EVALWBCDNGV1 USB-UART dongle, designed for charging devices such as smartphones or tablets where high power levels are required.

The evaluation board supports wireless battery charging of Qi-compliant devices up to 15W. It also supports proprietary fast charging modes up to 10W.
The EVALSTWBC-EP transmitter is based on the STWBC-EP and features a cost-effective half bridge topology offering external interface via UART. The EVALSTWBC-EP solution provides a complete kit, which includes demo board, its firmware, a graphical interface for debug, the schematics, layout files and bill of materials.
Tools for EVALSTWBC-EP are available on www.st.com and allow users to access runtime information such as power delivered, regulation error and protocol status. Parameters can also be adjusted with these tools

Main features

STWBC-EP digital controller
MP-A15 fixed frequency topology
15W output power
Flexible input voltage: 5V to 20V from USB connector
5W mode when connected to 5V USB input
WPC Qi1.2.4 standard compliant
Robust demodulation algorithm, with triple path (V, I, f)
Foreign Object Detection (FOD)

Active presence detection
UART protocol to control and monitor the system
Complete reference design (evaluation board, schematics, PCB layout, firmware and tools)
2 layers PCB
Low standby power consumption
Flash memory based
CE certified
ROHS compliant
