HB LED driver with diagnostics based on LED2472G and STM32

STEVAL-ILL015V2

Overview

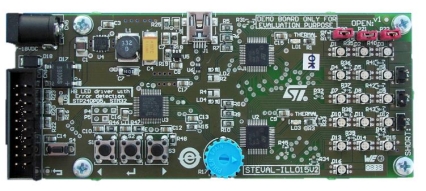

The STEVAL-ILL015V2 product evaluation board provides a platform to test and evaluate the power logic LED driver LED2472G from STMicroelectronics.

The LED2472G is a 24-bit constant-current LED sink driver with output error detection, suitable for applications such as large-area displays and full-color board panels where improvement in RGB LED resolution and reduction of system cost are important.

Main features

Two LED2472G devices (TQFP48 package) connected to 3 x 16 RGB high-brightness LEDs
STM32 microcontroller
Cost-effective internal high-side oscillator
JTAG interface for microcontroller firmware changes/updates
Mini USB connector for interconnection with a PC GUI
Test points on the board for each important signal aid laboratory evaluation
Buttons and knob to control the board

Error and overtemperature flag for each LED driver
3 jumpers to simulate the disconnection of 3 LEDs
3 jumpers to simulate the shorting of 3 LEDs
Highly efficient ST1S010 DC-DC switching power supply
Input: 7.5 V to 18 V, 0.7 A
RoHS compliant
