L6491 Gate Driver Demonstration Board with Smart Shutdown

EVAL6491HB

Overview

The L6491 is a high voltage device manufactured with the BCD6 “OFF-LINE” technology. It is a single-chip half-bridge gate driver for N-channel power MOSFETs or IGBTs, with a 4 A sink and source current capability.

The high-side (floating) section is designed to stand a voltage rail up to 600 V. The logic inputs are CMOS/TTL compatible down to 3.3 V for easy interfacing a microcontroller or DSP.
An integrated comparator is available for fast overcurrent protection, and is also suited for other functions such overtemperature, etc.

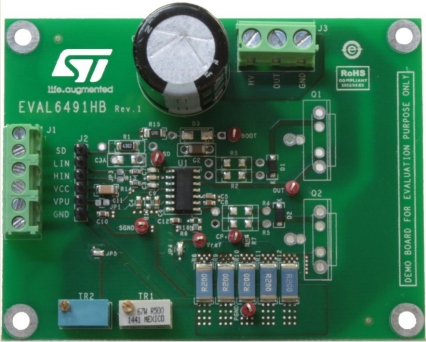

The EVAL6491HB board allows evaluating all of the L6491 features while driving a power switch with voltage rating up to 600 V in TO-220 or TO-247 packages.
The board allows easily selecting and modifying the values of relevant external components in order to ease driver's performance evaluation under different applicative conditions and fine pre-tuning of final application's components.

Main features

High voltage rail up to 600 V
dV/dt immunity: 50 V/ns in full temperature range
Driver current capability: 4 A source/sink
Comparator for fault protections
Smart shutdown function
Integrated bootstrap diode
Adjustable deadtime

Interlocking function
Switching times 15 ns rise/fall with 1 nF load
3.3 V, 5 V TTL/CMOS inputs with hysteresis
Compact and simplified layout
Bill of material reduction
Effective fault protection
Flexible, easy and fast design
