MC33696EVB: MC33696/MC33596 Evaluation Board

MC33696EVB: MC33696/ MC33596 Evaluation Board

Overview

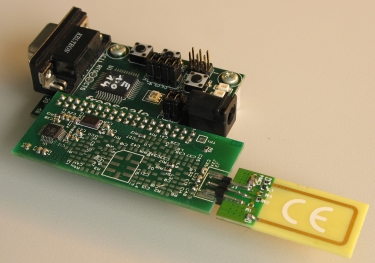

The MC33696/ MC33596 development board is designed to work in conjuntion with the MC9S08RG60 demo boards at a range of frequencies including 315 MHz, 433 MHz and 866 MHz

Description	Web Ref	Frequency
MC33696/MC33596 RF Module designed to work in conjunction with the MC908RG60 Demo Board	MC33696MOD315EV	315 MHz
	MC33696MOD434EV	433.92 MHz
	MC33696MOD868EV	868.3 MHz
MC9S08RG60 Demonstrator Board	DEMO9S08RG60E

Note: MCU Demo Board should be ordered separately; it is not included in this kit.
